Siemens SINUMERIK 808D User Manual

Programming and Operating Manual (Milling)
10 6FC5398-4DP10-0BA6, 09/2017
PPU version
Technology variant
Operator panel variant
Applicable control system
PPU151.3 Turning variant Horizontal panel, with English keys SINUMERIK 808D ADVANCED T (Turning)
Horizontal panel, with Chinese keys
Milling variant
Horizontal panel, with English keys
SINUMERIK 808D ADVANCED M (Milling)
Horizontal panel, with Chinese keys
PPU150.3 Turning variant Vertical panel, with English keys SINUMERIK 808D ADVANCED T (Turning)
Vertical panel, with Chinese keys
Milling variant Vertical panel, with English keys SINUMERIK 808D ADVANCED M (Milling)
Vertical panel, with Chinese keys
PPU141.3 Turning variant Horizontal panel, with English keys SINUMERIK 808D (Turning)
Horizontal panel, with Chinese keys
Milling variant Horizontal panel, with English keys SINUMERIK 808D (Milling)
Horizontal panel, with Chinese keys

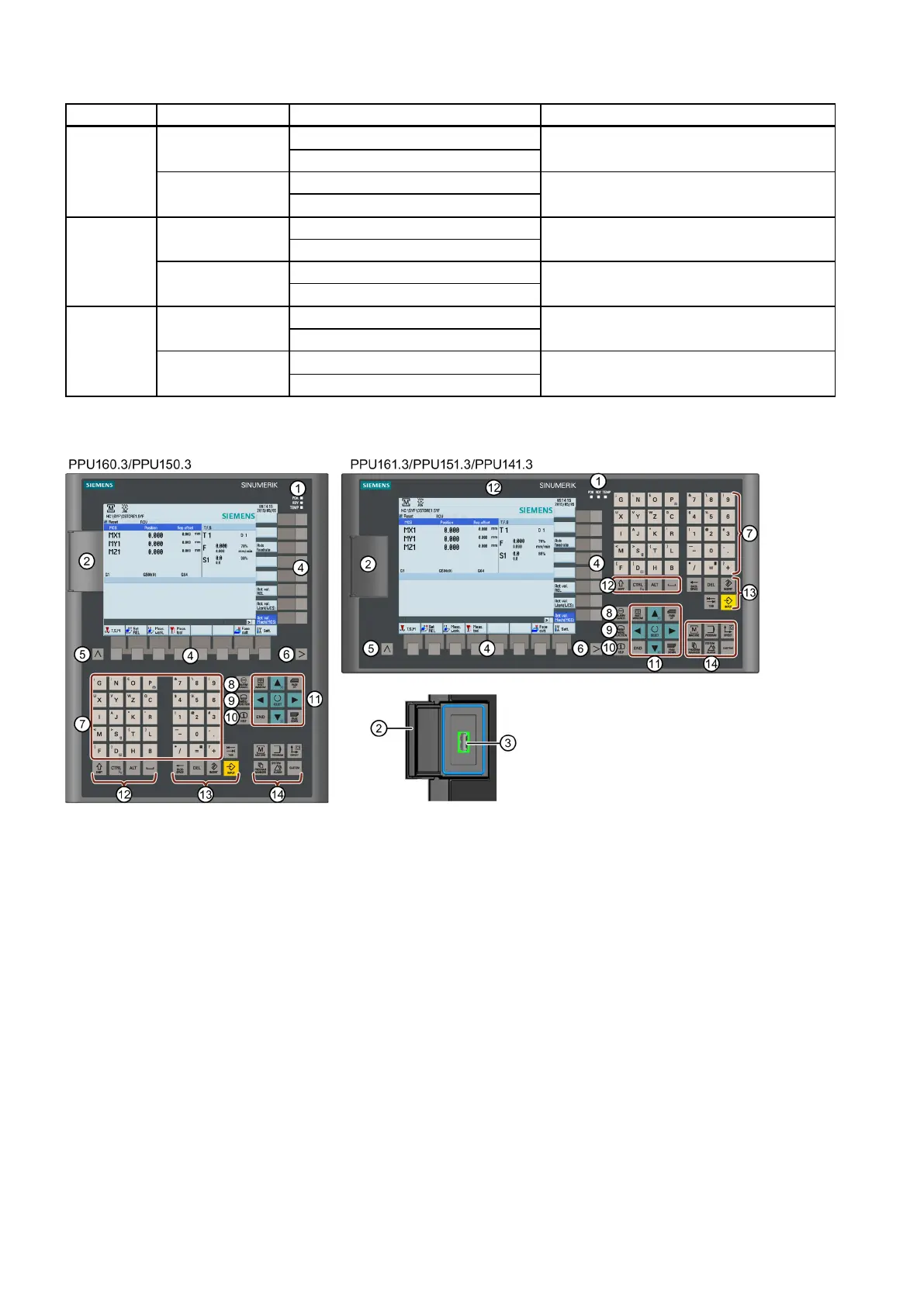

2.1.2
PPU control elements
①
Status indicators
⑧
Alarm cancellation key
Cancels alarms and messages that are marked with the
symbol on this key
②
Protective cover for USB interface
⑨
Wizard key
Guides you through performing basic commissio
ning
and operation tasks
③
U SB interface
⑩
Help key
Calls help information
④
Horizontal and vertical keys
Call the corresponding vertical/horizontal softkeys on
the screen
⑪
Cursor keys
⑤
Return key
Returns to the next higher-level menu
⑫
Modifier keys for use in key combinations
⑥
Menu extension key
Calls the extended menu items
⑬
Edit control keys
⑦
Alphabetic and numeric keys
⑭
Operating area keys
