Siemens SINUMERIK 808D User Manual

Programming and Operating Manual (Milling)
236 6FC5398-4DP10-0BA6, 09/2017
13.2
Programming (Example 1)
Machining requirements

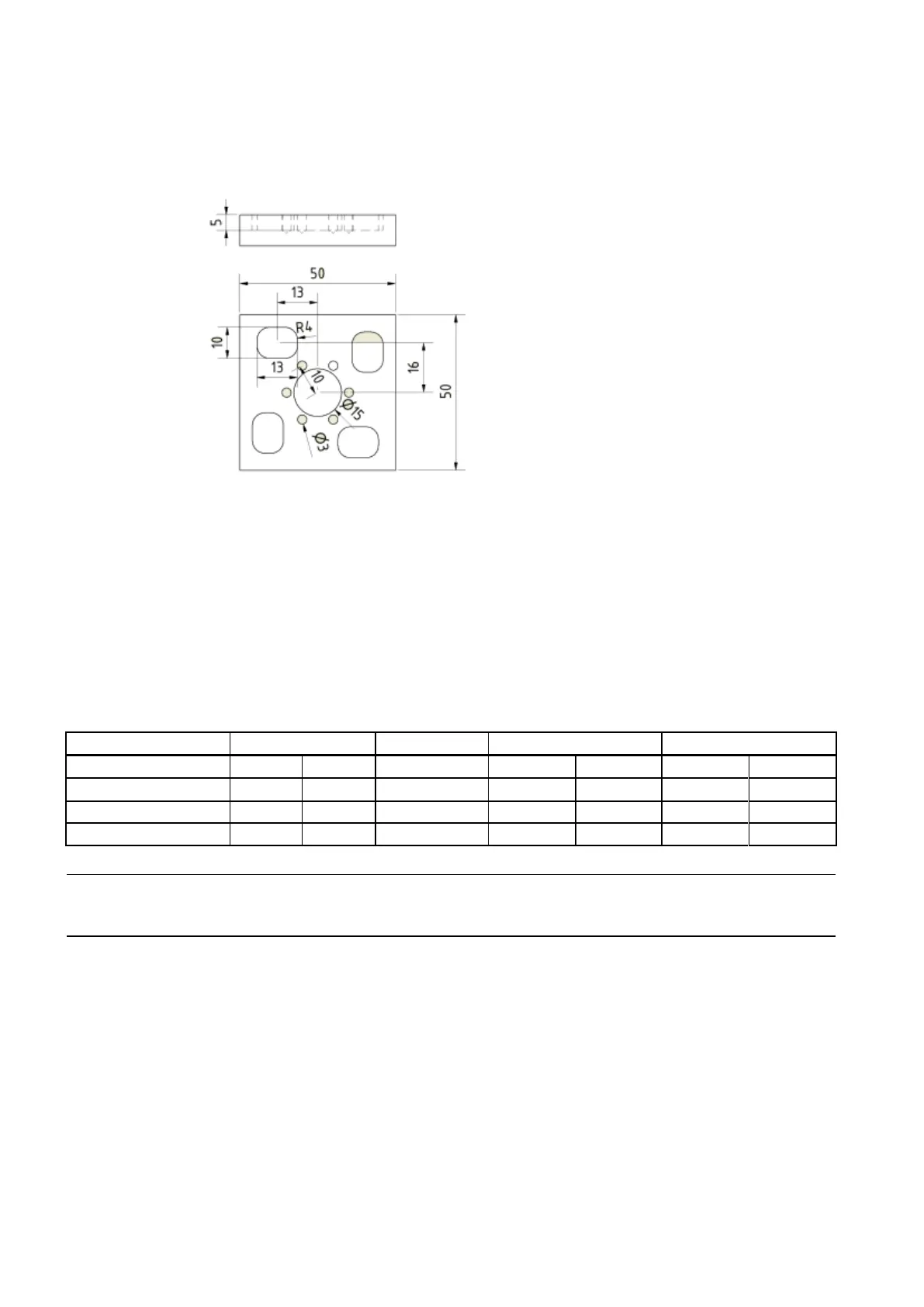

Workpiece drawing (unit: mm)
Technical requirements
● The arc transition must be smooth, without lapping.
● The cutting trace must be even.
● The sharp edges must be rounded.
Blank data
Blank material: Cube aluminum
Blank length: 100 mm
Blank width: 80 mm
Blank height: 60 mm (machining length: 46 mm; clamping length: 10 mm)
Required tool
Tool type
Tool number
Tool diameter
Roughing
Finishing
DIN
ISO
(mm)
Speed
Feedrate
Speed
Feedrate
Face milling tool T1D1 T1H1 50 1500 600 2500 600
End milling tool
T2D1
T2H2
8
4000
600
4500
600
Drilling tool
T3D1
T3H3
3
5000
100
5000
100
Note
•
When programming in ISO mode, you need to set the H numbers of T1 to T3 as 1 to 3 respectively in the tool list;
• Cut the workpiece manually after machining is over.
