Siemens SINUMERIK 808D User Manual

Programming and Operating Manual (Milling)
166 6FC5398-4DP10-0BA6, 09/2017

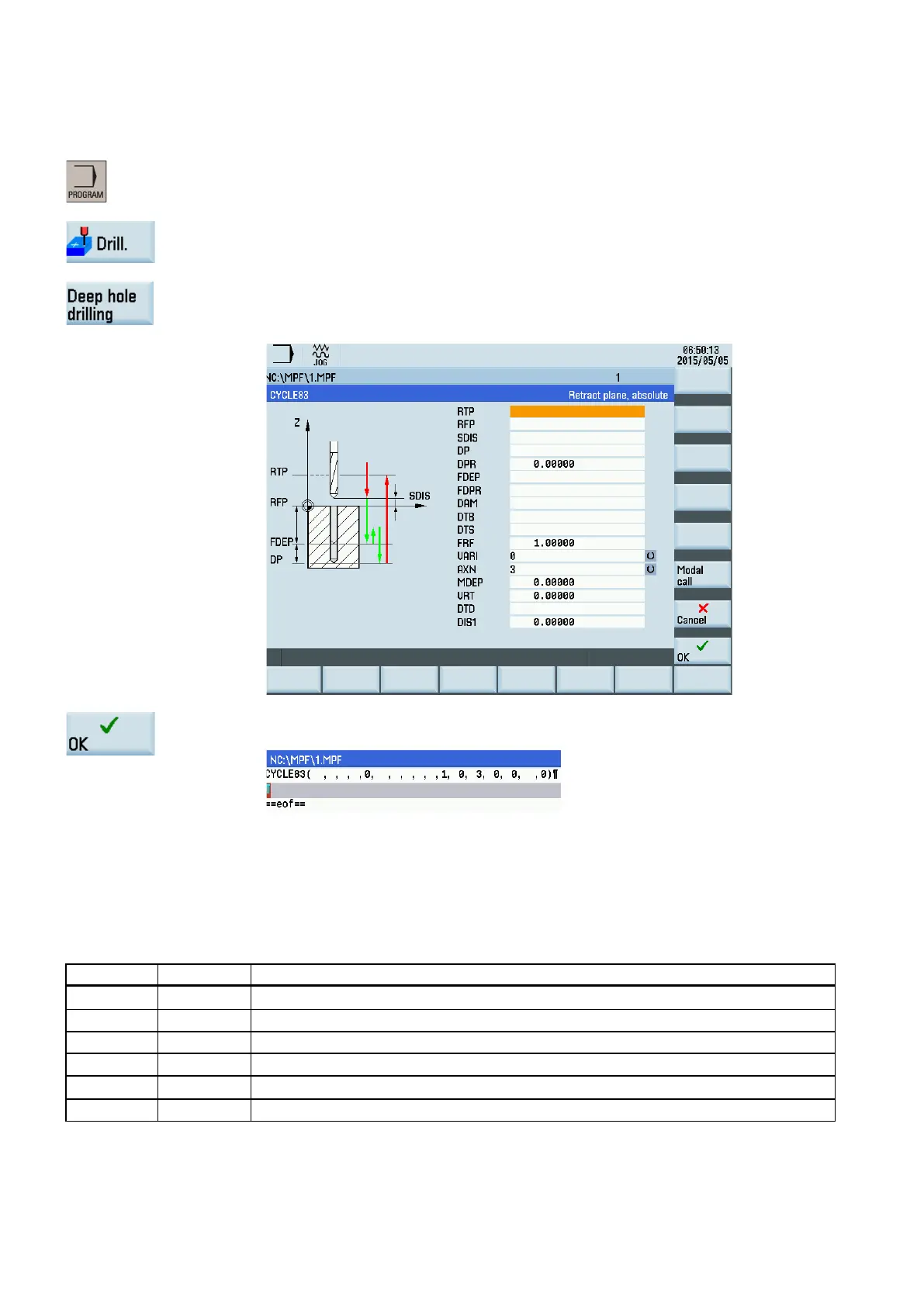

Programming example 2: Deep-hole drilling
Proceed through the following steps:
1.
Select the desired op
erating area.
2.
Open the vertical softkey bar for available drilling cycles.
3.
Press this softkey to open the window for CYCLE83. Parameterize the cycle as desired.
4.
Confirm your settings with this sof
tkey. The cycle is then automatically transferred to the
program editor as a separate block.
12.4.6
Rigid tapping - CYCLE84
Programming
CYCLE84 (RTP, RFP, SDIS, DP, DPR, DTB, SDAC, MPIT, PIT, POSS, SST, SST1, AXN, 0, 0, VARI, DAM, VRT)
Parameters
Parameter
Data type
Description
RTP REAL Retraction plane (absolute)
RFP
REAL
Reference plane (absolute)
SDIS REAL Safety clearance (enter without sign)
DP
REAL
Final drilling depth (absolute)
DPR REAL Final drilling depth relative to the reference plane (enter without sign)
DTB REAL Dwell time at final drilling depth (chip breakage)
