Siemens SINUMERIK 808D User Manual

Programming and Operating Manual (Milling)
6FC5398-4DP10-0BA6, 09/2017
245
Y21
X-13.5
G1 G40 Y16
G0 Z10
M17
Then you can proceed with the operations for "program simulation and execution
(Page 278)".
13.3
Programming (Example 2)
Machining requirements

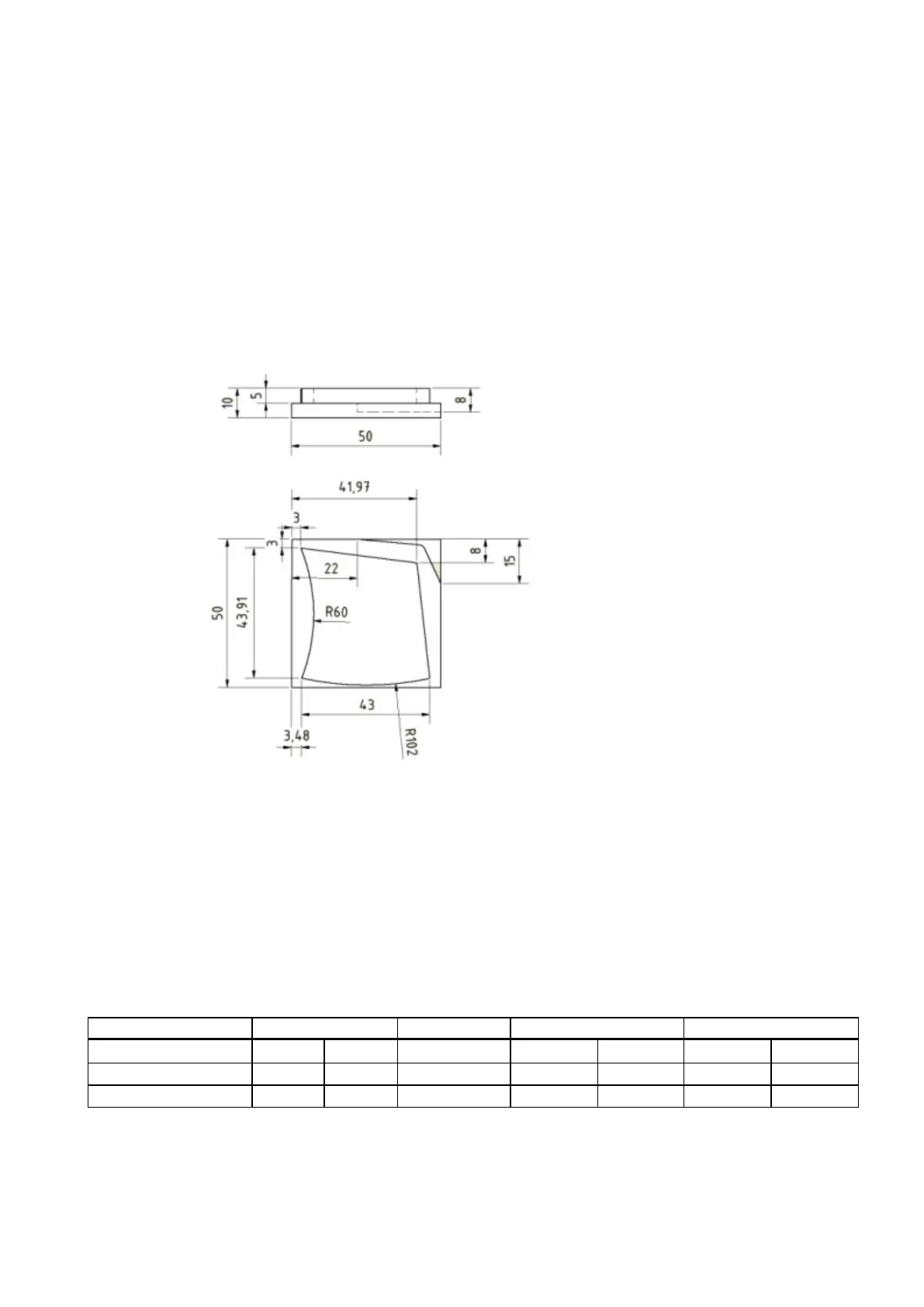

Workpiece drawing (unit: mm)
Technical requirements
● The arc transition must be smooth, without lapping.
● The cutting trace must be even.
● The sharp edges must be rounded.
Blank data
Blank material: Cube aluminum
Blank length: 100 mm
Blank width: 80 mm
Blank height: 60 mm (machining length: 46 mm; clamping length: 10 mm)
Required tool
Tool type
Tool number
Tool diameter
Roughing
Finishing
DIN ISO (mm) Speed Feedrate Speed Feedrate
Face milling tool
T1D1
T1H1
50
1500
600
2500
600
End milling tool T2D1 T2H2 10 4000 600 4000 600
