Programming and Operating Manual (Milling)
60 6FC5398-4DP10-0BA6, 09/2017
Use the cursor keys to position the cursor bar in the input fields to be modified and enter the
values.
Confirm your entries. The changes to the workpiece offsets are activated immed
iately.
Entering/modifying the setting data
Entering/modifying the setting data
Operating sequence
Select the offset operating area.
Open the setting data window.
Open the window for setting the general data.
Position the cursor bar in the input fields to be modified and enter the values (see table
below for the parameter descriptions).
Use this key or move the cursor to confirm your entries.

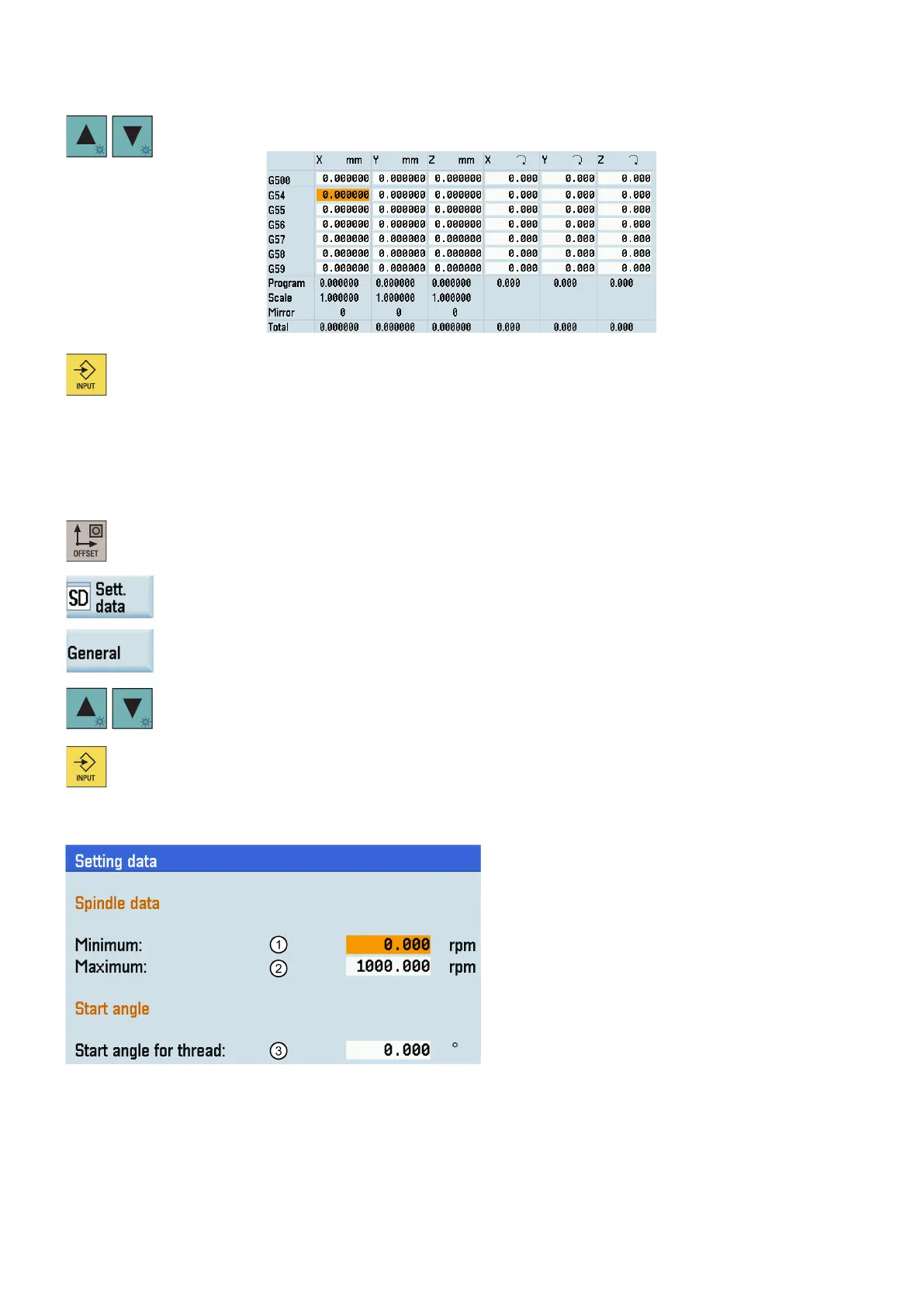

Parameters in the setting data window
/â‘¡
A limitation of the spindle speed in the maximum (G26)/minimum (G25) fields can only be performed within the
limit values defined in the machine data.
For thread cutting, a start position for the spindle is displayed as the start angle. A multiple t
hread can be cut by
changing the angle when the thread cutting operation is repeated.
