Siemens SINUMERIK 808D User Manual

Programming and Operating Manual (Milling)
6FC5398-4DP10-0BA6, 09/2017
161
5.

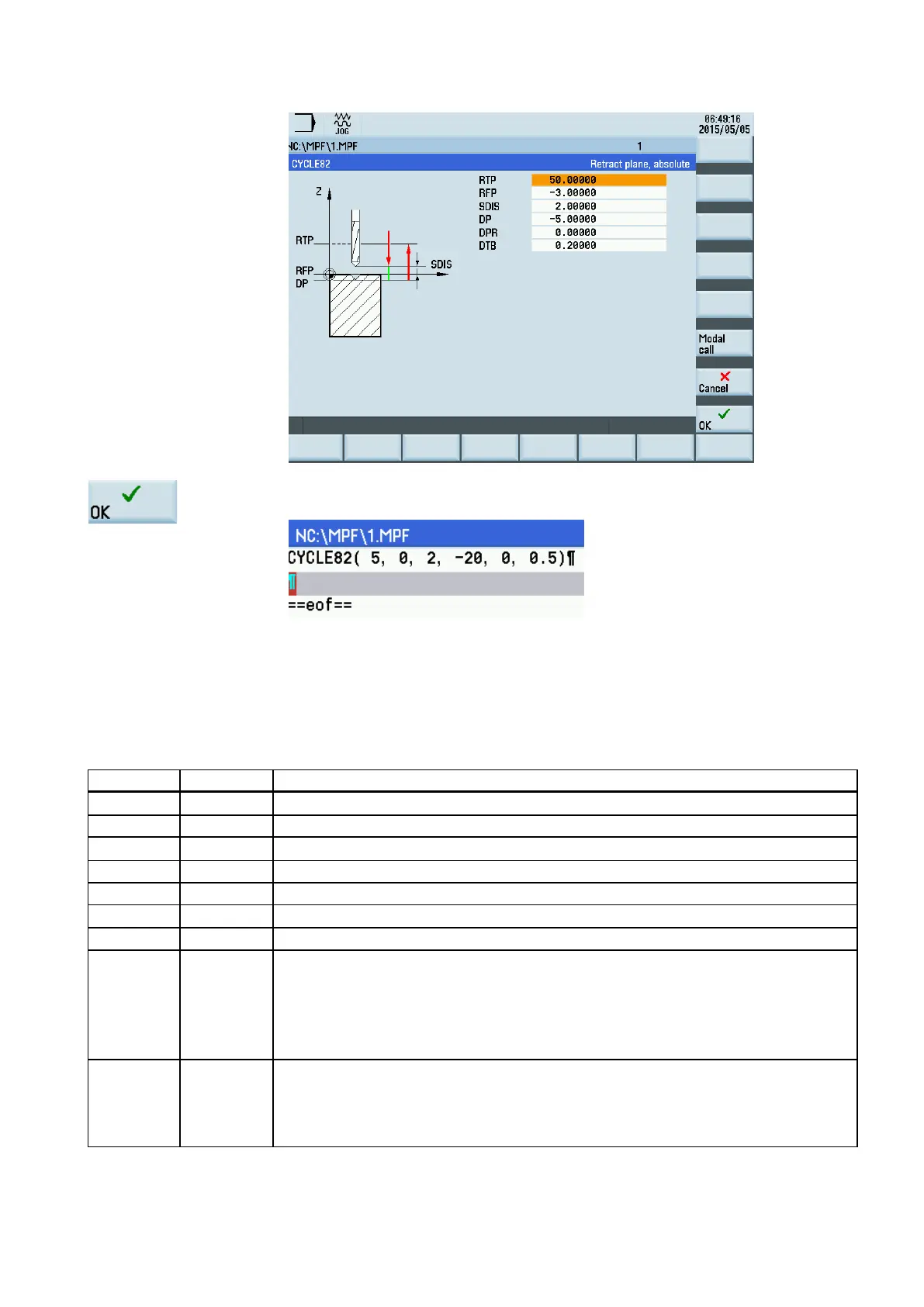

Confirm your settings with this softkey. The cycle is then automatically transferred to the
program editor a
s a separate block.
12.4.5
Deep-hole drilling - CYCLE83
Programming
CYCLE83 (RTP, RFP, SDIS, DP, DPR, FDEP, FDPR, DAM, DTB, DTS, FRF, VARI, AXN, MDEP, VRT, DTD, DIS1)
Parameters
Parameter
Data type
Description
RTP REAL Retraction plane (absolute)
RFP
REAL
Reference plane (absolute)
SDIS
REAL
Safety clearance (enter without sign)
DP
REAL
Final drilling depth (absolute)
DPR
REAL
Final drilling depth relative to the reference plane (enter without sign)
FDEP REAL First drilling depth (absolute)
FDPR REAL First drilling depth relative to the reference plane (enter without sign)
DAM REAL Amount of degression (enter without sign)
Values:
>0: degression as value
<0: degression factor
=0: no degression
DTB REAL Dwell time at drilling depth (chip breakage)
Values:
>0: in seconds
<0: in revolutions
