Programming and Operating Manual (Milling)
170 6FC5398-4DP10-0BA6, 09/2017
Programming example 2: Rigid tapping

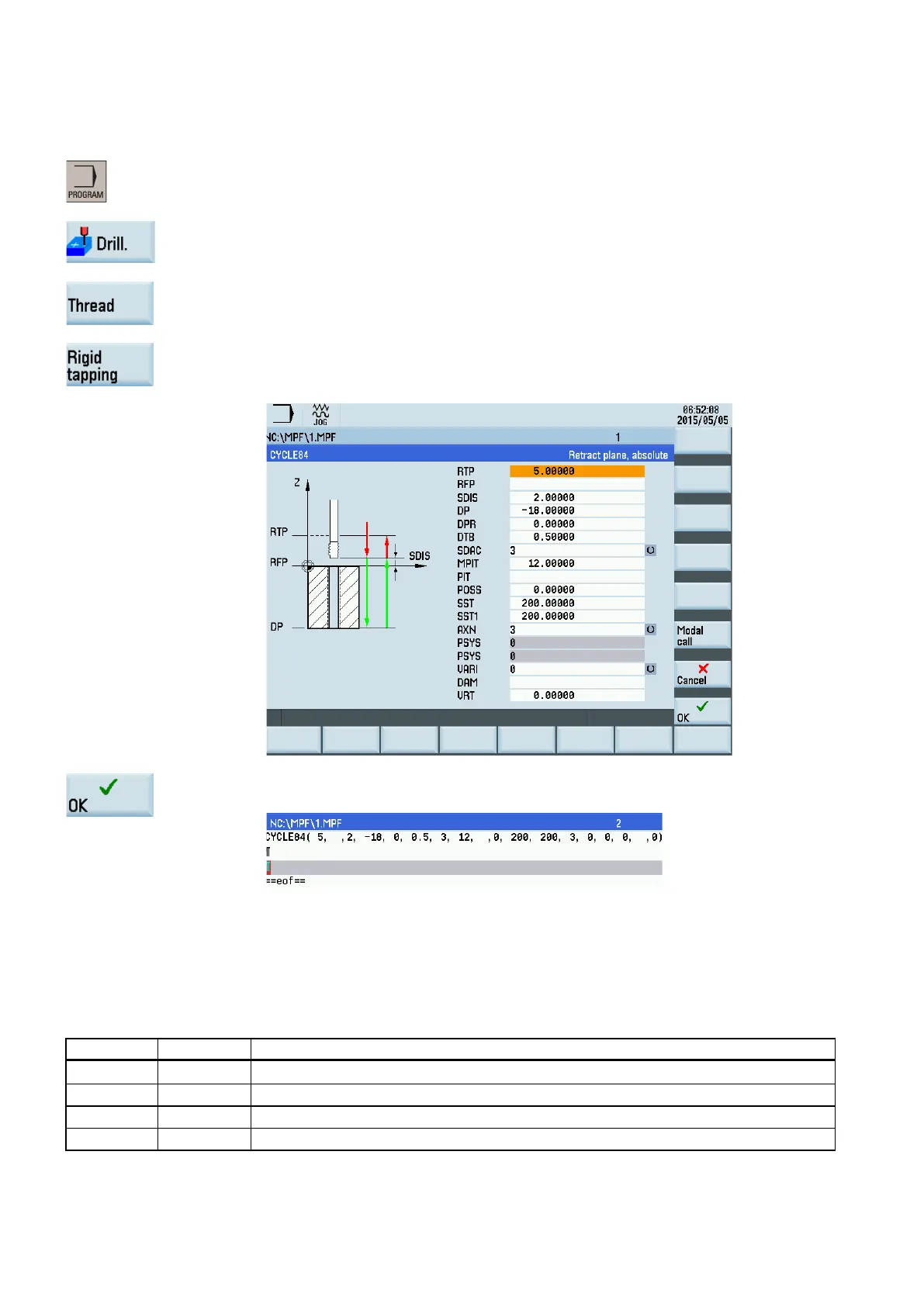

Proceed through the following steps:
1.
Select the desired o
perating area.
2.
Open the vertical softkey bar for available drilling cycles.
3.
Press this softkey from the vertical softkey bar.
4.
Press this softkey t
o open the window for CYCLE84. Parameterize the cycle as desired.
5.
Confirm your settings with this s
oftkey. The cycle is then automatically transferred to the
program editor as a separate block.
12.4.7
Tapping with compensating chuck - CYCLE840
Programming
CYCLE840 (RTP, RFP, SDIS, DP, DPR, DTB, SDR, SDAC, ENC, MPIT, PIT, AXN)
Parameters
Parameter
Data type
Description
RTP
REAL
Retraction plane (absolute)
RFP
REAL
Reference plane (absolute)
SDIS REAL Safety clearance (enter without sign)
DP
REAL
Final drilling depth (absolute)
