Siemens SINUMERIK 808D User Manual

Programming and Operating Manual (Milling)
6FC5398-4DP10-0BA6, 09/2017
25
3.

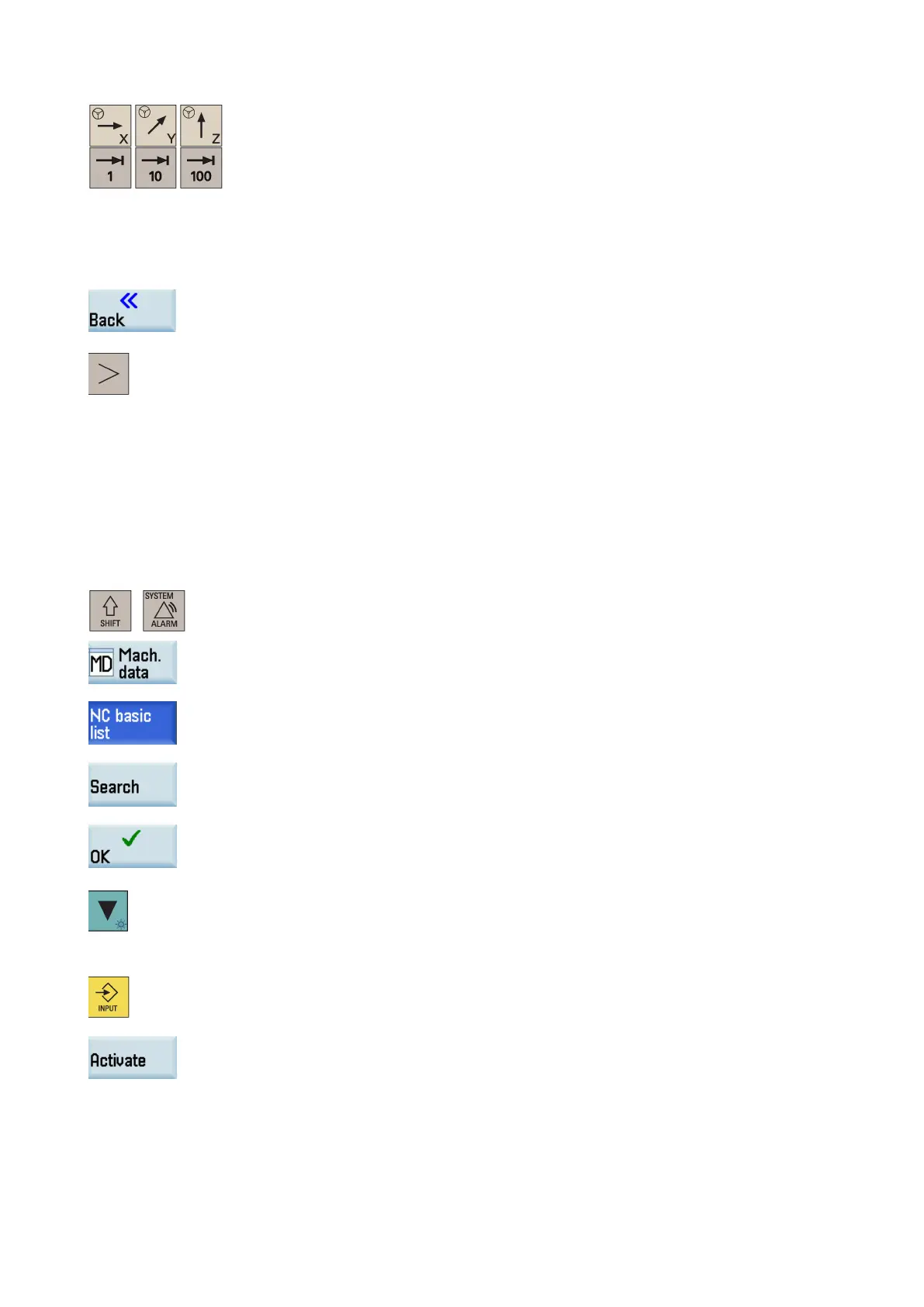

Press the desired axis traversing keys to assign the handwheel.
4.
Press the increment keys on the MCP to select the required override increment.
•
1: The override increment is 0.001 mm.
•
10: The override increment is 0.010 mm.
•
100: The override increment is 0.100 mm.
5.
Rotate the handwheel to make the selected axis approach the workpiece.
6.
Cut the surface of the workpiece to verify the handwheel assignment.
7.
Press this softkey to close the window for handwheel assignment.
8.
Press this key to return to the main screen of the machining operating area.
6.4.2
Assigning the handwheel through the PPU
Precondition
Set MD14512[16].7 = 80 (default value: 0). With this setting, you can only assign the handwheel through the PPU.
Operating sequence (activating the handwheel control function on the PPU)
If this function is already active, skip the steps below and proceed directly to the operating sequence for assigning the
handwheel through the PPU.
+
1.
Select the system data operating ar
ea.
2.
Open the machine data window.
3.
Press this softkey to open the basic machine data list.
4.
Press this softkey to open the search field and enter the
machine data "14512".
5.
Confirm your entry with th
is softkey. Then the system starts searching automatically.
6.
Move the cursor to the input field for 14512[16].
7.
Enter the value "80".
8.
Confirm your entry.
9.
Press this vertical softkey to activate the value change. Note that the control sy
s
tem restarts
to accept the new value.
