Siemens SINUMERIK 808D User Manual

Programming and Operating Manual (Milling)
6FC5398-4DP10-0BA6, 09/2017
115
11.10
Tool and tool offset
11.10.1
General Information
Fu n ctionality
When creating programs for machining workpieces, it is not necessary to take into account the tool length or the tool radius.
You program the workpiece dimensions directly, for example following the drawing.
You enter the tool data separately in a special data section.
Simply call the required tool with its offset data in the program and enable the tool radius compensation if necessary. The
control system performs the required path compensations based on the data to create the described workpiece.

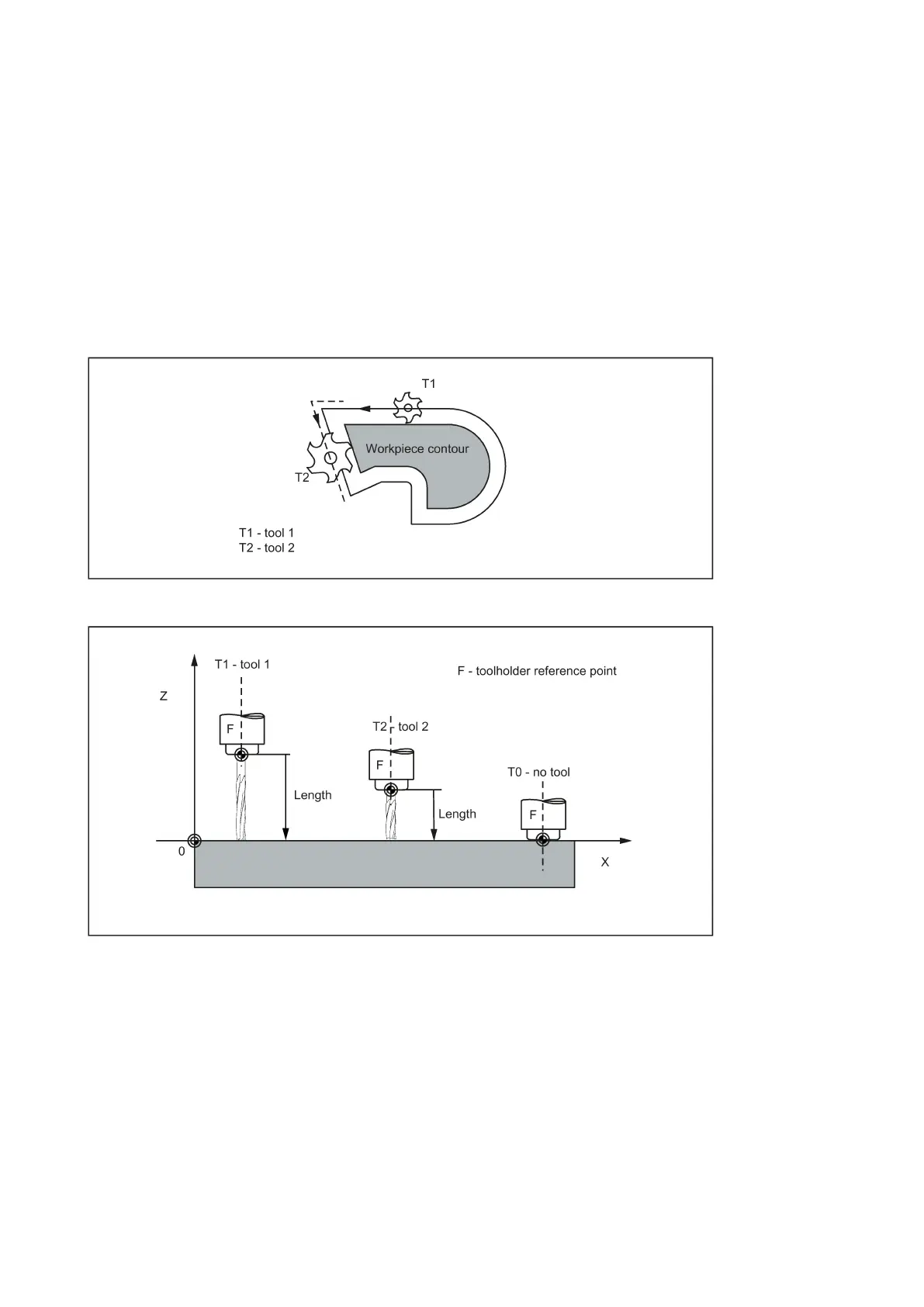

See the following illustration for machining of a workpiece with different tool radius:
See the following illustration for approaching the workpiece position Z0 - different length compensations:
