Programming and Operating Manual (Milling)
160 6FC5398-4DP10-0BA6, 09/2017
The dwell time to the final drilling depth (chip breakage) is programmed under DTB in seconds.
Programming example 1: Drilling_counterboring

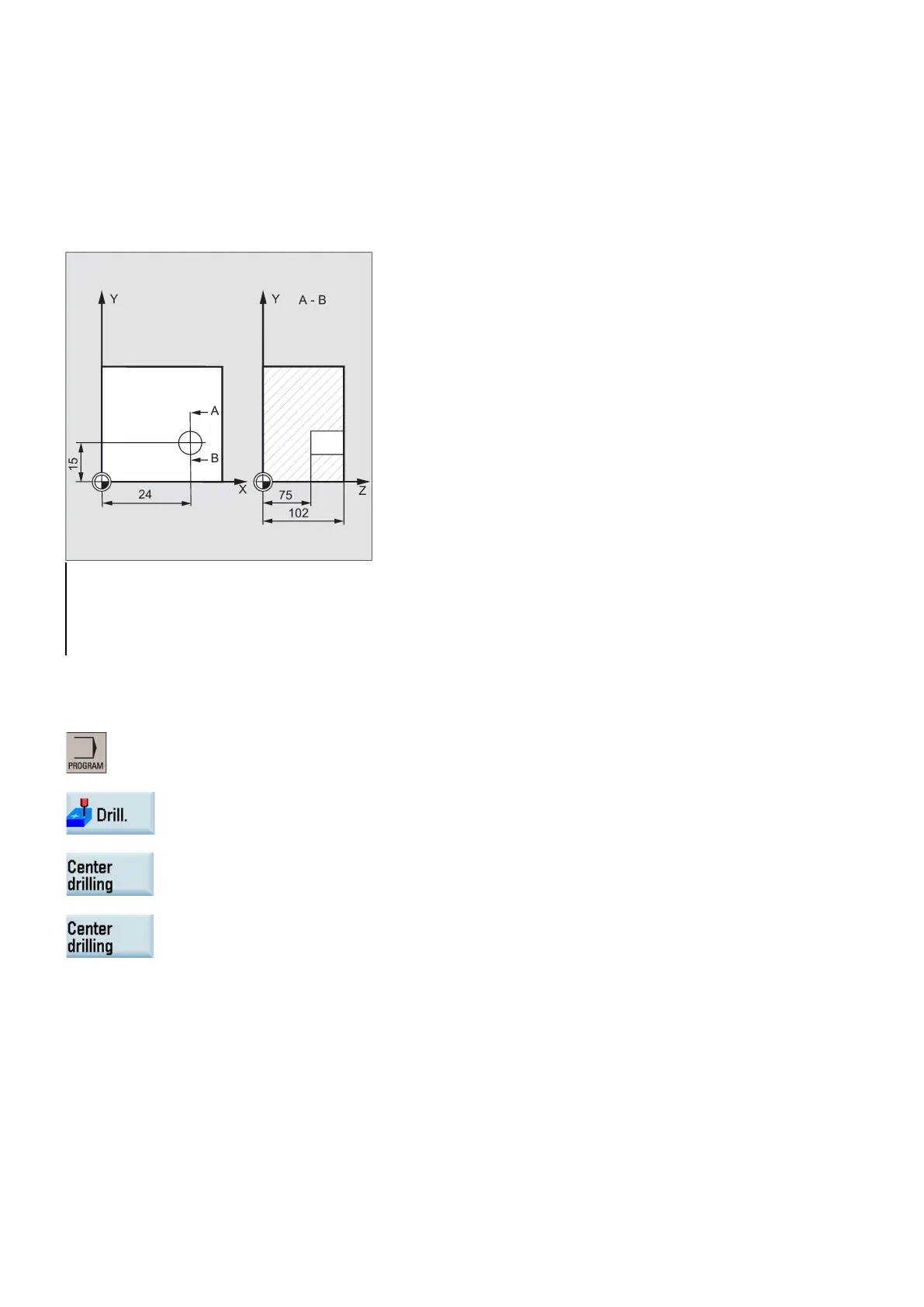

The program machines a single hole of a depth of 27 mm at position X24 Y15 in the XY plane with cycle CYCLE82.
The dwell time programmed is 2 s, the safety clearance in the drilling axis Z is 4 mm.
N10 G0 G17 G90 F200 S300 M3
; Specification of technology values
; Approach retraction plane
; Approach drilling position
N40 CYCLE82 (110, 102 , 4, 75, , 2)
; Cycle cal l with absolute final drilling
depth and safety clearance
Programming example 2: Drilling_counterboring
Proceed through the following steps:
Select the desired operating area.
Open the vertical softkey bar for available drilling cycles.
Press this softkey from the vertical softkey bar.
Press this softkey to open the window for CYCLE82. Parameterize the cycle as desired.
