A linear contour element is inserted between
linear and circle contours
in any combination. The edge is broken.

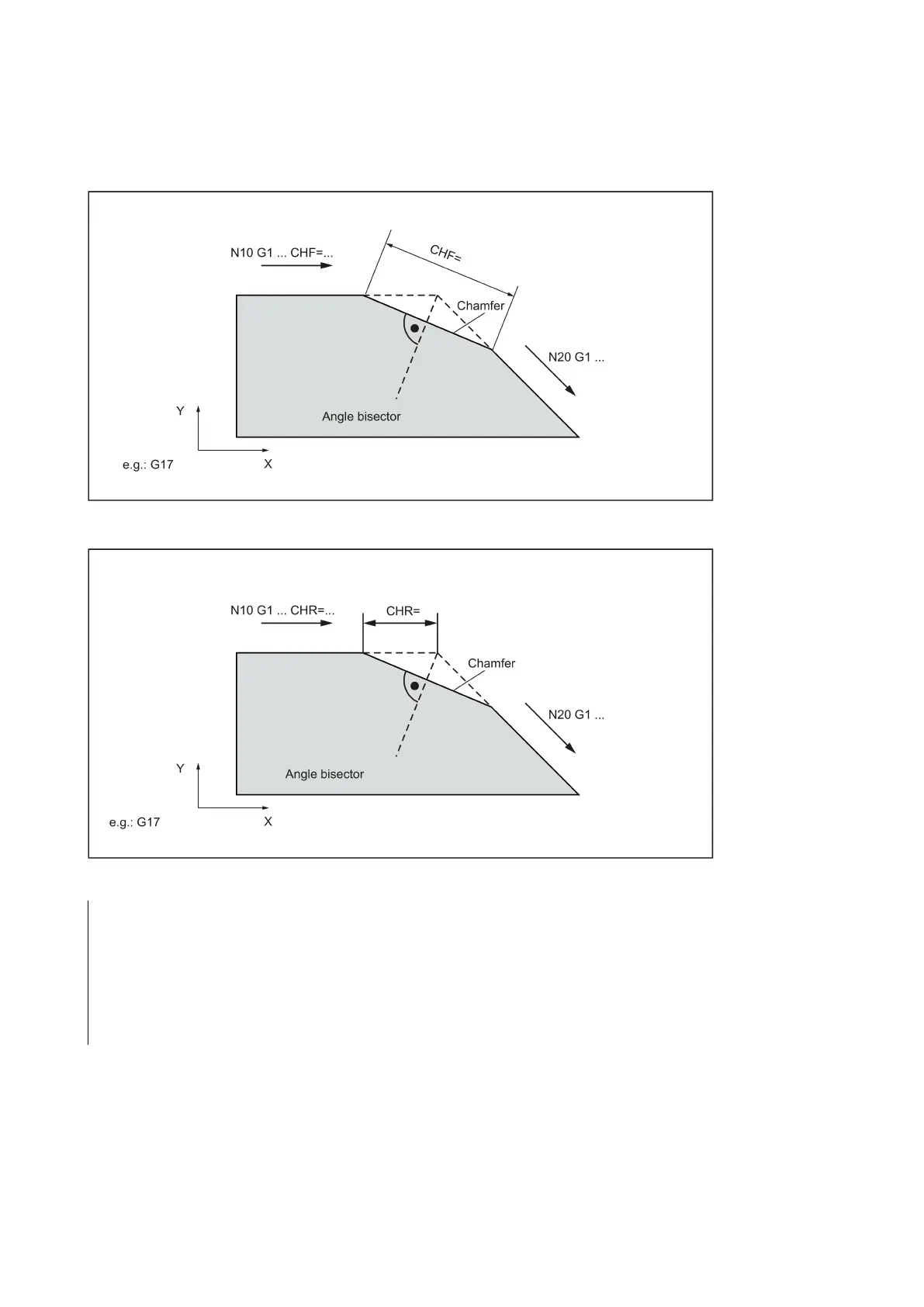

See the following illustration for inserting a chamfer with CHF using the example: Between two straight lines.
See the following illustration for inserting a chamfer with CHR using the example: Between two straight lines.
Programming examples of chamfer
N5 G17 G94 F300 G0 X100 Y100
; Insert chamfer with chamfer length o f 5 mm
; Insert chamfer with leg length of 7 mm
N200 G1 FRC=200 X30 CHR=4
; Insert chamfer with feedrate FRC
