Programming and Operating Manual (Milling)
118 6FC5398-4DP10-0BA6, 09/2017
For the tool types 'cutter' and 'drill', the parameters for length 2 and length 3 are only required for special cases (e.g. multi-
dimensional length offset for an angle head construction).

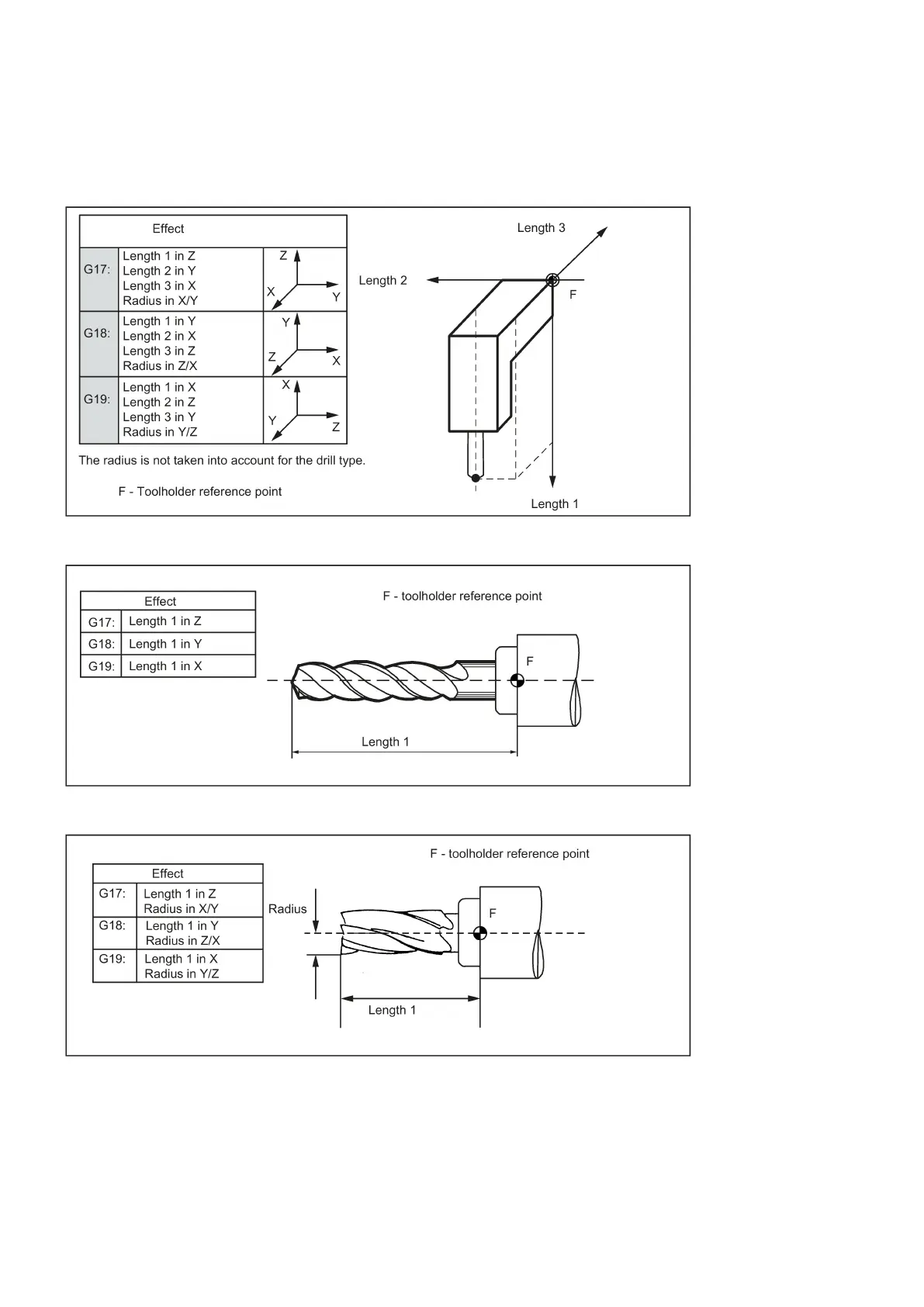

See the following illustration for effect of the tool length compensation - 3D (special case):
See the following illustration for effect of the offsets with the tool type 'drill':
See the following illustration for effect of the offsets with the tool type 'cutter':
