Siemens SINUMERIK 808D User Manual

Programming and Operating Manual (Milling)
14 6FC5398-4DP10-0BA6, 09/2017
③
Operating mode selection area
⑩
Keys for program start, stop, and reset
④
Program control keys
⑪
Pre-defined labeling strips for keys of the MCP
⑤
User-defined keys
⑫
Reserved slot for the handwheel
⑥
Axis traversing keys
⑬
Spindle override control keys
⑦
Spindle override switch

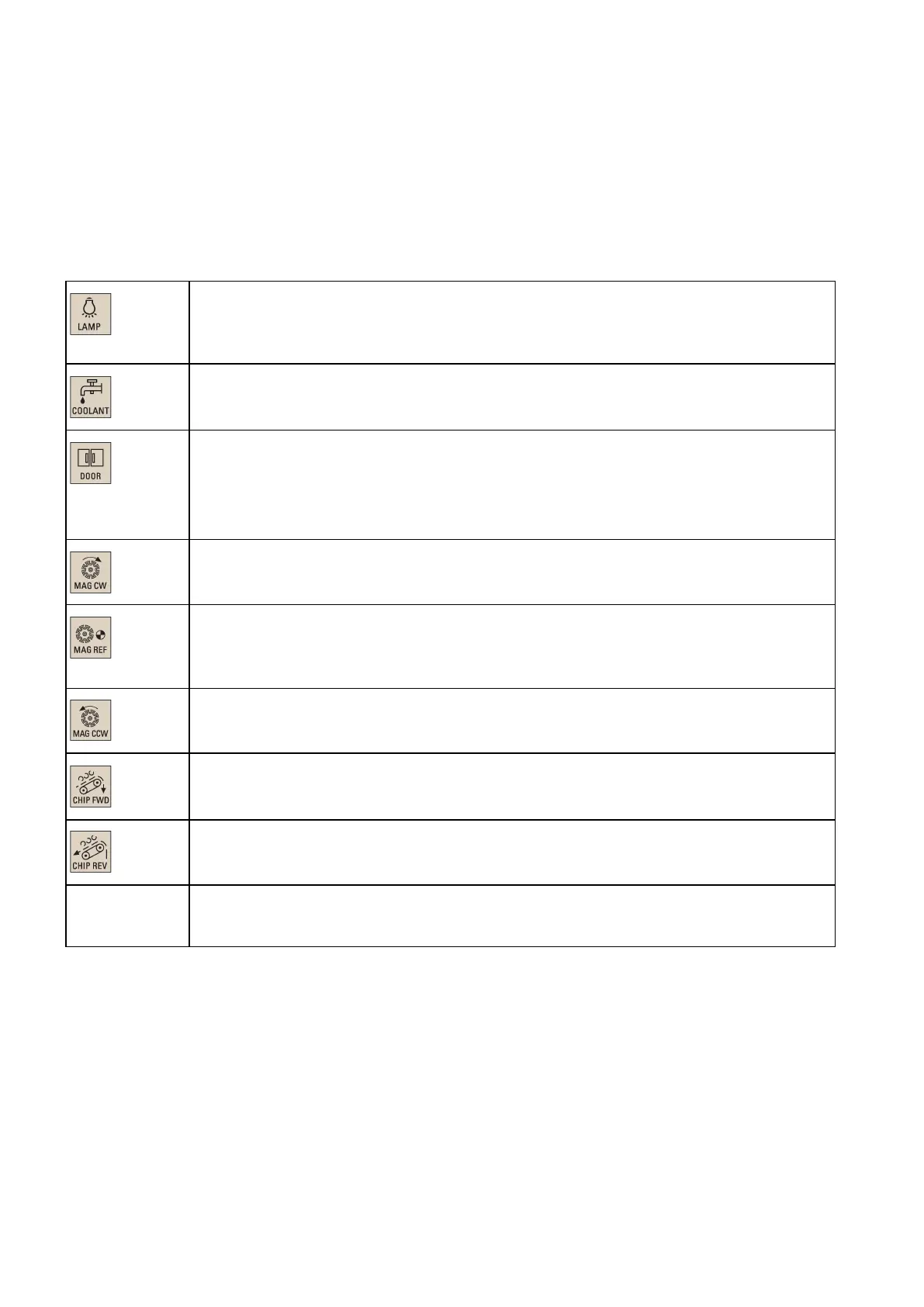

Functions of user-defined keys
Switches on/off the machine tool working lamp (always active independent of the machine operating
mode)
Indicator on: The working lamp on the machine tool is switched on.
Indicator off: The working lamp on the machine tool is switched off.
Switches on/off of the coolant supply (always active independent of the machine operating mode)
Indicator on: The coolant supply is switched on.
Indicator off: The coolant supply is switched off.
Controls the locking/unlocking of the safety door
Indicator on: The safety door is unlocked.
Indicator off: The safety door is locked.
Note:
If you want to unlock the safety door, make sure all axes and the spindle have stopped running.
Controls if the magazine rotates clockwise (active only when the machine is in "JOG" mode)
Indicator on: The magazine rotates clockwise.
Indicator off: The magazine stops clockwise rotation.
Controls if the magazine approaches the reference point (active only when the machine is in "JOG"
mode)
LED on: The magazine is referenced.
LED off: The magazine is not yet referenced.
Controls if the magazine rotates counter-clockwise (active only when the machine is in "JOG" mode)
Indicator on: The magazine rotates counter-clockwise.
Indicator off: The magazine stops counter-clockwise rotation.
Controls if the chip remover rotates forward (active only when the machine is in "JOG" mode)
Indicator on: The chip remover starts forward rotation.
Indicator off: The chip remover stops rotation.
Controls if the chip remover rotates reversely (active only when the machine is in "JOG" mode)
Indicator on: The chip remover starts reverse rotation.
Indicator off: The chip remover stops reverse rotation.
K9 to K12 Reserved keys.
You can define the functions of these keys in PLC Programming Tool. For more information, see the
SINUMERIK 808D/SINUMERIK 808D ADVANCED Commissioning Manual.
