Programming and Operating Manual (Milling)
140 6FC5398-4DP10-0BA6, 09/2017
G248
; Retraction with a quadrant
G347
; Approach with a semi-circle
G348
; Retraction with a semi-circle
G340
; Approach and retraction in space (basic setting)
G341
; Approach and retraction in the plane
DISR=...
; Approach and retraction with straight lines (G147/G148): Distance of the cutter edge from the start
or end point of the contour
; Approach and retraction along circles (G247, G347/G248, G348): Radius of the tool center point
path
DISCL=...
; Distance of the end point for the fast infeed motion from the machining plane (safety clearance)
FAD=...
; Speed of the slow infeed motion
The programmed value acts according to the active command of the G group 15 (feed: G94, G95)

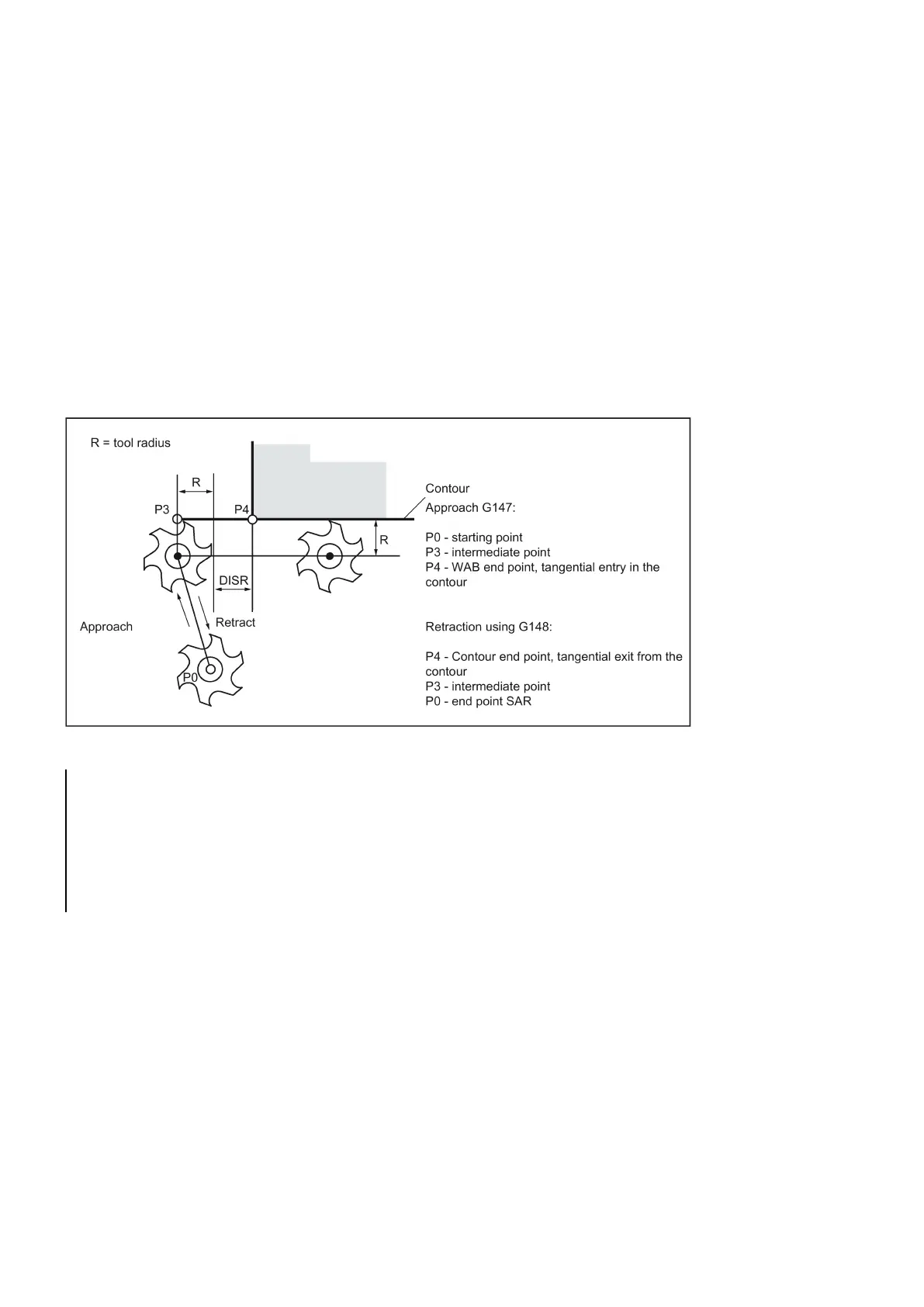

See the following illustration for approaching along a straight line using the example of G42 or retraction using G41 and
completion with G40:
Programming example: Approach/retraction along a straight line in a plane
N10 T1 G17
; Activate tool, X/Y plane
N20 G0 X20 Y20
; Approach P0
N30 G42 G14 7 DISR=8 F60 0 X4 Y4
; Approach, point P4 programmed
N40 G1 X40
; Continue in the contour
N50 Y12
N100 G41 G1 X15 Y15
N110 X4 Y4
; P4 - contour end point
N120 G40 G148 DISR=8 F700 X8 Y8
; Retraction, point P0 programmed
M30
