Programming and Operating Manual (Milling)

220 6FC5398-4DP10-0BA6, 09/2017

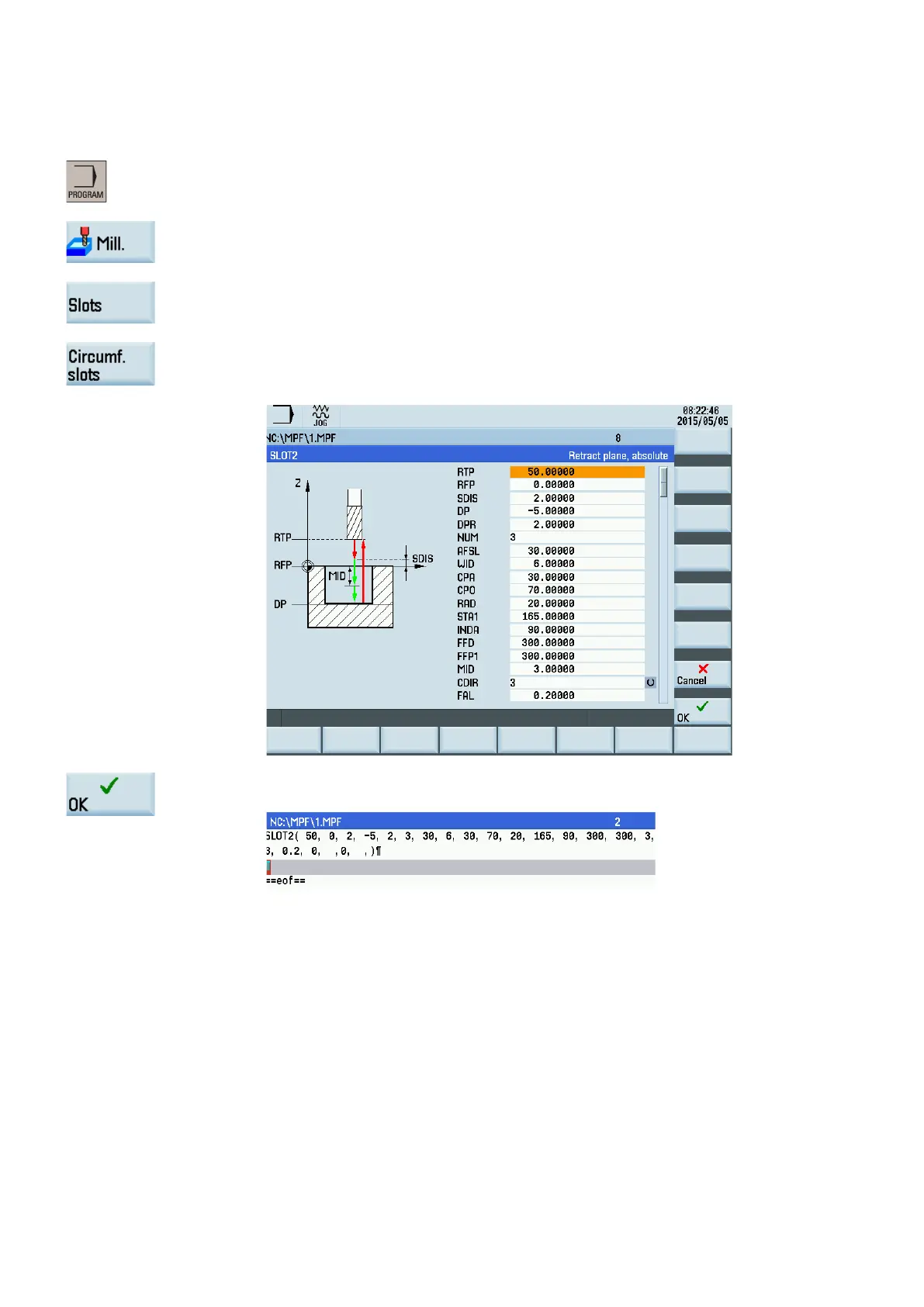

Programming example 2

Proceed through the following steps:

Select the desired operating area.

Open the vertical softkey bar for available milling cycles.

Press this softkey from the vertical softkey bar.

Press this softkey to open the window for SLOT2. Parameterize the cycle as desired.

Confirm your settings with this softkey. The cycle is then automatically transferred to the

program editor.
