Press this softkey to confirm your input and open the cycle programming window.
Enter the following blocks:
X
-35 Y-25
X35 Y
-25
X
-35 Y25
X35 Y25
MCALL
G0 Z100 M9
M05
M30
Then you can proceed with the operations for "
program simulation and execution
(Page 278)".

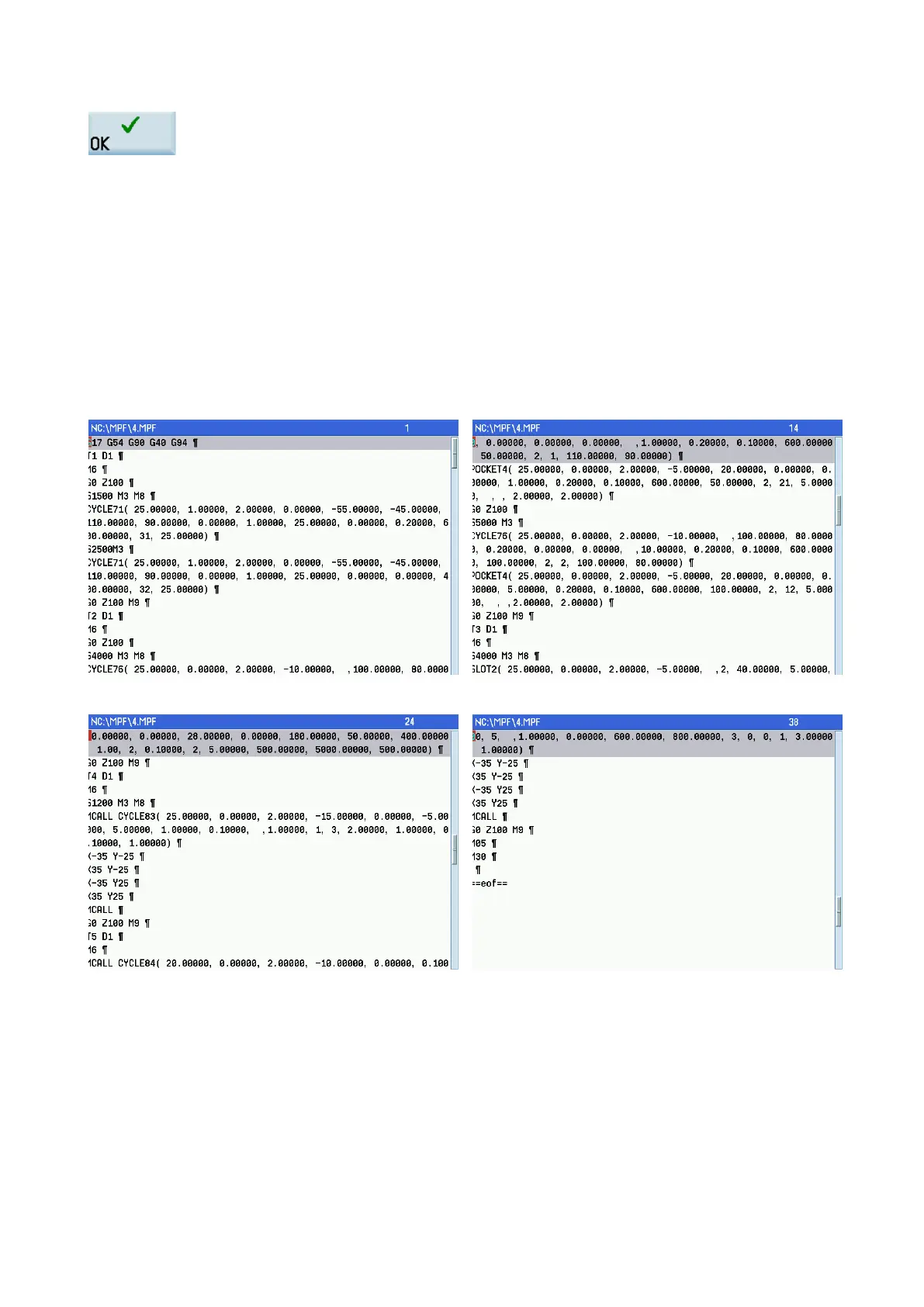

Screenshots of the complete program
Screen 1:
Screen 2:
Screen 3:
Screen 4:
