Siemens SINUMERIK 808D User Manual

Programming and Operating Manual (Milling)
276 6FC5398-4DP10-0BA6, 09/2017
G84 X35 Y25 Z-15 R2 F1000
X-35
Y-25
X35
G0 G80 Z100 M9
M05
M30
9.

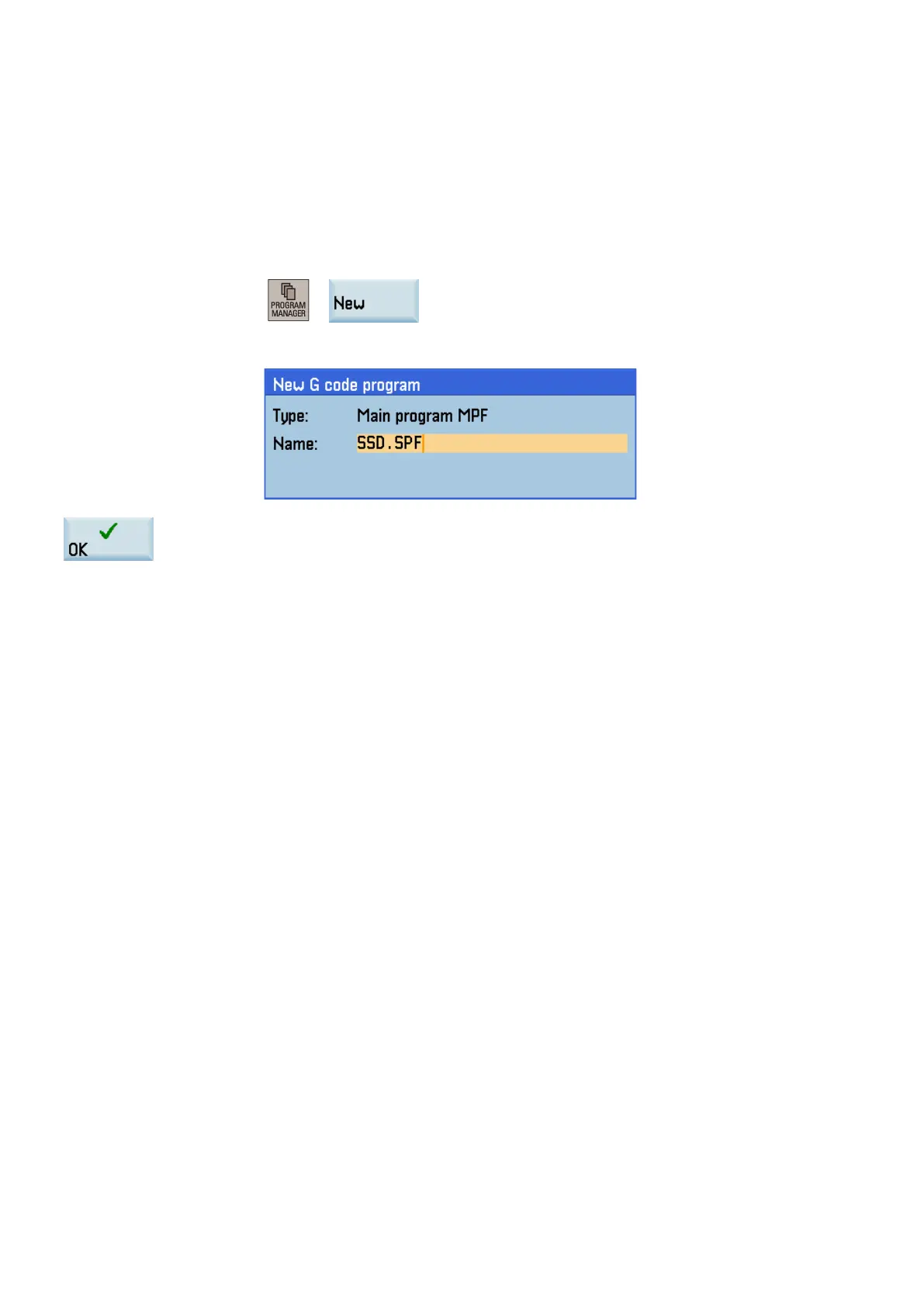

Open the window for creating a new program through the following key operations:
→
10. Enter the name of the subprogram with the file name extension, "SSD.SPF" in this exam-
ple.
11. Press this softkey to confirm your entry. The part program editor window opens automati-
cally. Enter the following program blocks for "SSD":
G0 Z100
X0 Y-60
Z3
G1 Z-2 F50
G1 G41 Y-40 F600
X-50
Y40
X50
Y-40
X-5
G1 G40 X0 Y-60
G1 Z-4 F50
G1 G41 Y-40 F600
X-50
Y40
X50
Y-40
X-5
G1 G40 X0 Y-60
G1 Z-6 F50
G1 G41 Y-40 F600
X-50
Y40
X50
Y-40
X-5
G1 G40 X0 Y-60
