Programming and Operating Manual (Milling)

292 6FC5398-4DP10-0BA6, 09/2017

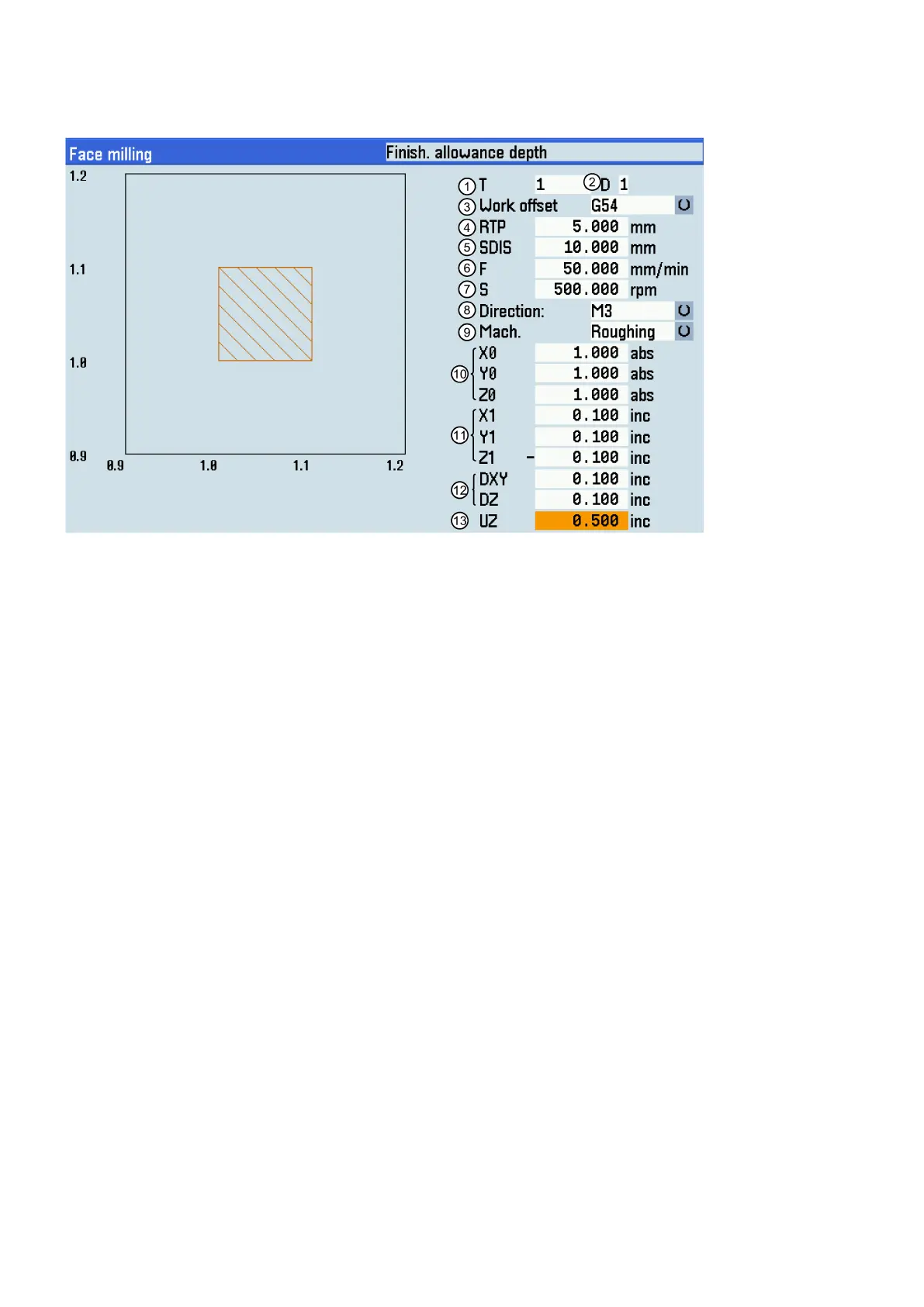

Parameters for face milling

①

Tool number

⑧

Direction of spindle rotation

②

Tool offset number

⑨

Machining type selection: roughing or finishing

③

Work offset to be activated

⑩

X\Y\Z position of the blank

④

Retraction plane

⑪

Cutting dimension in the X\Y\Z direction, specified in

increments

⑤

Safety distance

⑫

Cutting length in the X

\Y\Z direction, specified in incre-

ments relative to the workpiece edge

⑥

Path feedrate

⑬

Stock allowance in the Z direction

⑦

Spin

dle speed
