Siemens SINUMERIK 808D User Manual

Programming and Operating Manual (Milling)
6FC5398-4DP10-0BA6, 09/2017
309
①
Opens the window for programming a vertical straight line (in Z direction)
②
Opens the window for programming a horizontal straight line (in Y direction)
③
Opens the window for programming an oblique line in the Y/Z direction. The end point of the line
is entered using
coordinates or an angle.
④
Opens the window for programming a circular arc with any direction of rotation
⑤
Opens the lower
-level menu for more programming options:
•
Specify a pole
•
Close the contour
⑥
Returns to the program editor witho
ut transferring the last edited values to the system
⑦
Returns to the program editor with the last edited values transferred to the system

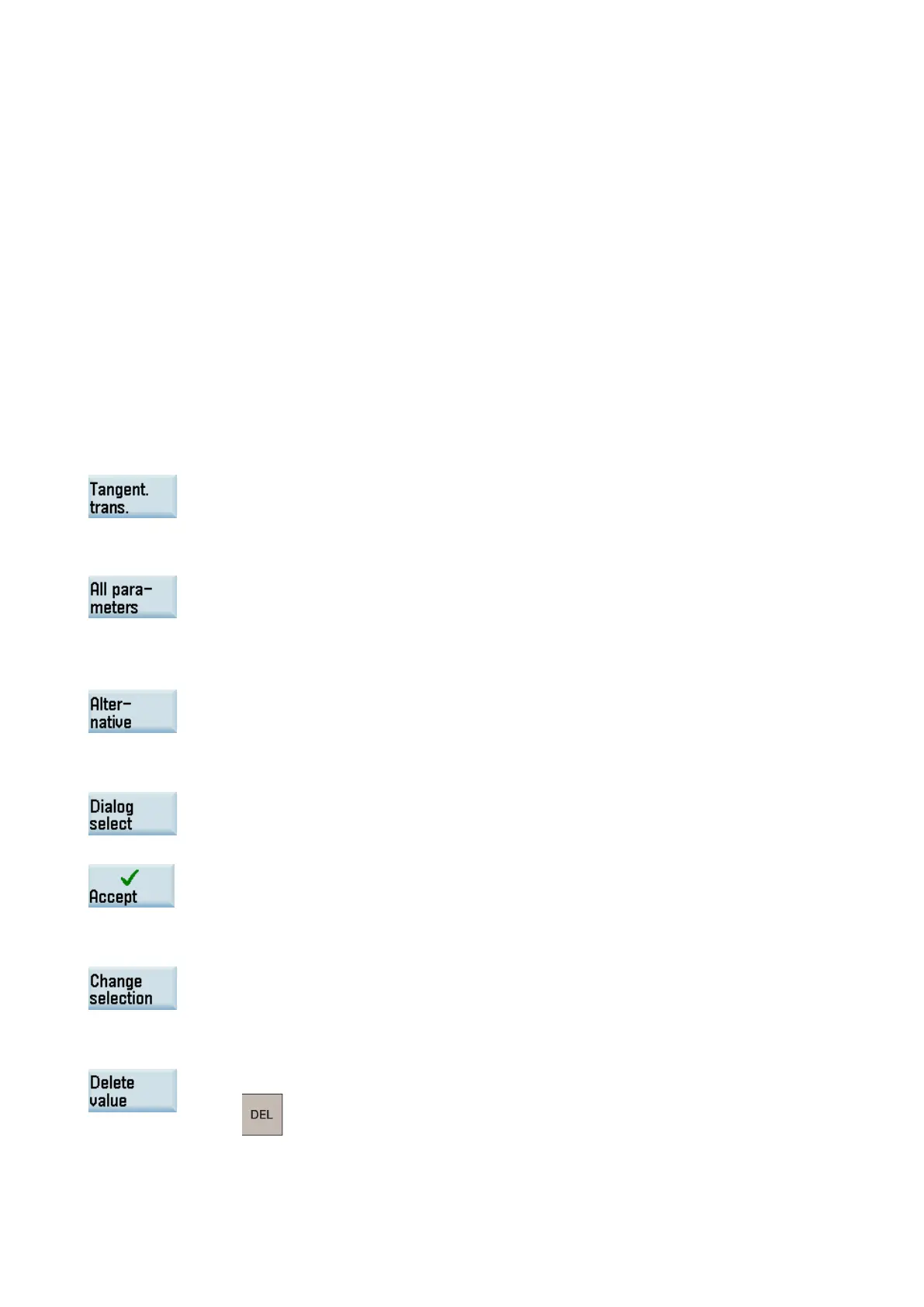

Further softkey functions
The following softkeys are available in corresponding contour element window for programming the contour elements on the
basis of pre-assigned parameters.
Tangent to preceding element
This softkey presets the angle
α2 to a value of 0. The contour element has a tangential transition to
the preceding element, i.e. the angle to the preceding element (α2) is set to 0 degree.
Displaying all parameters
Press this softkey to display a selection list of all the parameters for the
selected contour element. If
you leave any parameter input fields blank, the control assumes that you do not know the right
values and attempts to calculate these from the settings of the other parameters. The contour is
always machined in the programmed direction.
Input switchover
This softkey is displayed only in cases where the cursor is positioned on an input field with several
switchover settings.
Selecting dialog
Some parameter configurations can produce several different contour characteristics. In such cas-
es, you will be asked to select a dialog. By clicking this softkey, you can display the available sele
c-
tion options in the graphic display area. Select this softkey to make the correct selection (green
line).
Confirm your choice with this softkey.
Changing a selected dialog
If you want to change an existing dialog selection, you must select the contour element in which the
dialog was originally chosen. Both alternatives are displayed again when you select this softkey.
Clearing a parameter input field
You can delete the value in the selected parameter input field with this softkey or the following key:
