5.

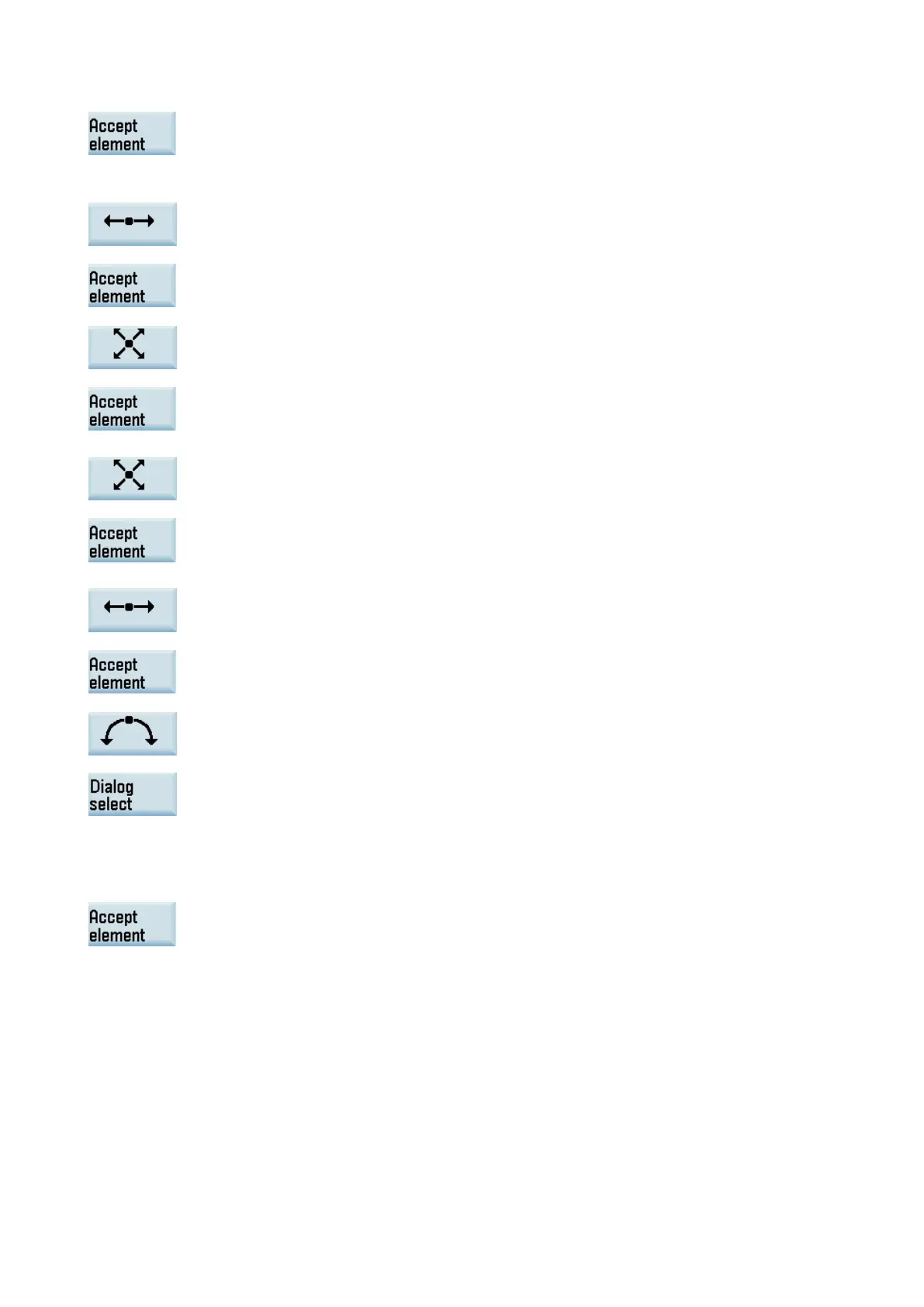

Define a start point with the following parameters and press this softkey to confirm.
•
Programming plane: G17
•
X: 5.67 abs.
•
Y: 0
6.
Press this softkey to select a contour element of straight horizontal line.
7.
Enter the parameters for this element and press this sof
tkey to confirm.
•
X: -93.285 abs.
8.
Press this softk
ey to select a contour element of straight line in any direction.
9.
Enter the parameters for this element and press this softkey to confirm.
•
X: -43.972 inc.
•
α1: -125 °
10.
Press this softkey to select a contou
r element of straight line in any direction.
11.
Enter the parameters for this element and press this softkey to confirm.
•
X: 43.972 inc.
•
α1: -55 °
12.
Press this softkey to select a contour element of straight horizontal line.
13.
Enter the
parameters for this element and press this softkey to confirm.
•
X: 5.67 abs.
14.
Press this softkey to select a contour element of circular arc.
15.
Enter the parameters for this element and press this softkey to select the desired contour
characteristics.
•
Direction of rotation: clockwise
•
R: 72
•
X: 5.67 abs.
•
Y: 0 abs.
16.
Press this softkey to confirm.
