Siemens SINUMERIK 808D User Manual

Programming and Operating Manual (Milling)
44 6FC5398-4DP10-0BA6, 09/2017

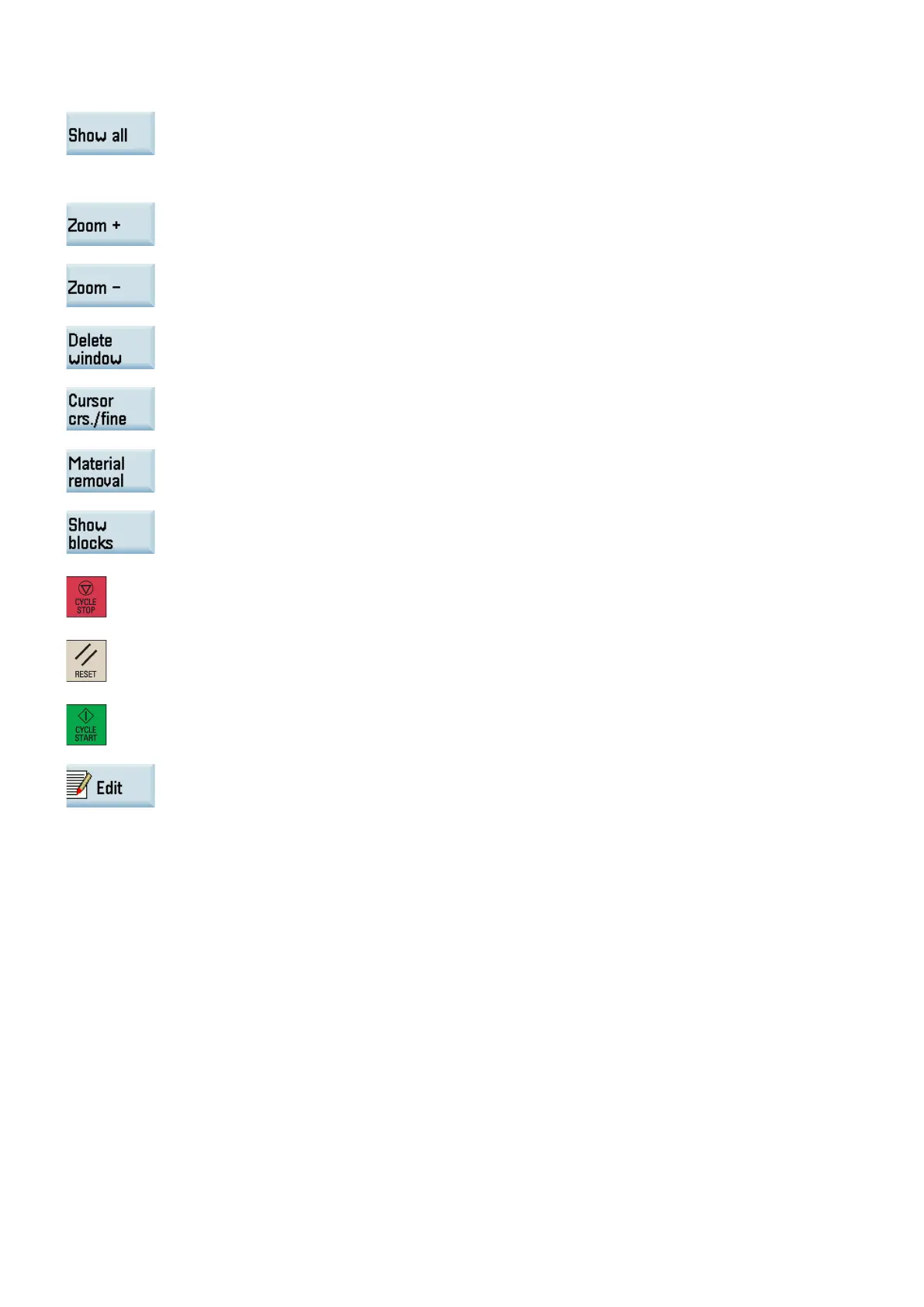

Opens the lower
-level menu for the following block display options:
•
Display all G17 blocks
•
Display all G18 blocks
•
Display all G19 blocks
Zooms in the screen from the cursor position
Zooms out the screen from the cursor position
Deletes all the simulation tracks recorded up till now
Makes the cursor move in large or small steps
Enables the material removal simulation of a defined blank
Selects whether to show the blocks or not
8.
Press this key on the MCP if you wish to stop the simulation.
-
OR -
Press this key on the MCP to cancel the simulation.
9.
Press this key on the MCP to restart or continue the simulation.
10.
After you finish the simulation, you can press this softkey to return to the program editor
window.
