Programming and Operating Manual (Milling)
6FC5398-4DP10-0BA6, 09/2017
51

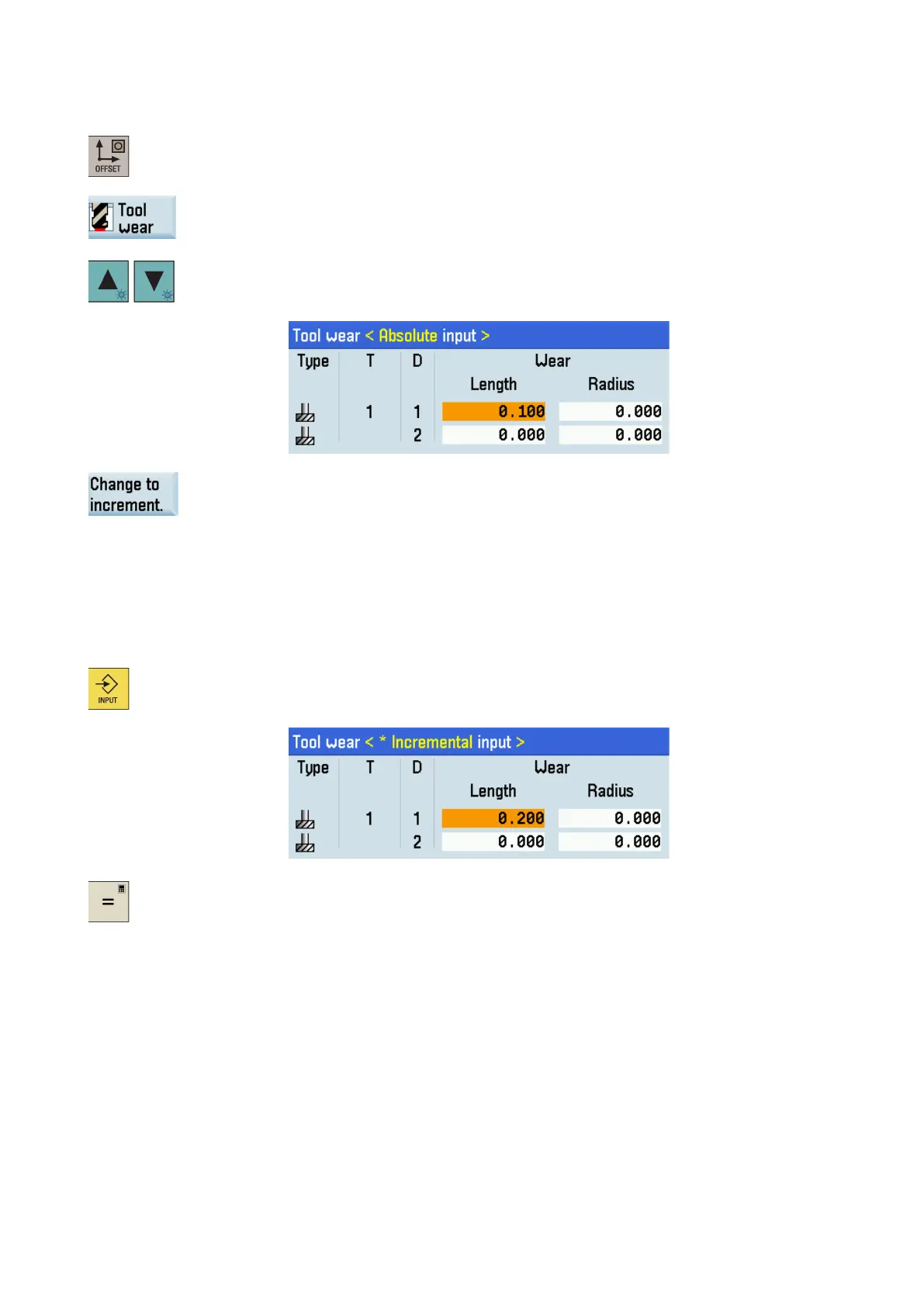

Operating sequence for incremental input
1.
Select the offset operating area.
2.
Open the tool wear window.
3.
Position the cursor bar on the input field to be modified.
Switch to incremental input.
5.
Enter the desired increment value, for example, 0.1.
Positive value: the tool compensates in a direction of moving away from the workpiece.
Negative value: the tool compensates in a direction of approaching the workpiece.
Alternatively, you can call the pocket calculator to work out the increment value (see Steps
7 to 10).
6.
Press this key or move the cursor to activate the compensation. Then the value displayed in
the input field becomes the sum of the original value and the incr
ement value.
If you desire to use the pocket calculator, press this key.
