Siemens SINUMERIK 840D

3 Safety-Related Functions 11.03
3.12 SI I/Os using fail-safe modules connected to PROFIBUS DP (840D from SW 6.3.30)
© Siemens AG 2003 All Rights Reserved
3-186 SINUMERIK 840D/SIMODRIVE 611 digital SINUMERIK Safety Integrated (FBSI) - Edition 11.03
F-DI module
The channels of the F-DI module are mapped differently to the NCK/PLC-SPL
inputs $INTSE/INSEP depending on the selected parameterization.
• 2v2 parameterization
For 2v2 parameterization, the process signals of both channels in the F-DI
module are combined to form one F useful (net) data signal and thus
supply an SPL input data.
FDI_ND1.DSF
SINUMERIK 840D
$A_INSE/INSEP n
$A_INSE/INSEP n+1
$A_INSE/INSEP n+2
$A_INSE/INSEP n+3
ET 200S F-DI module
Channel 3
Channel 1
Channel 2
Channel 4
Channel 5
Channel 6
Channel 7
Channel 0
Configuration: channel x,y = 2v
2
AND
AND
AND
AND

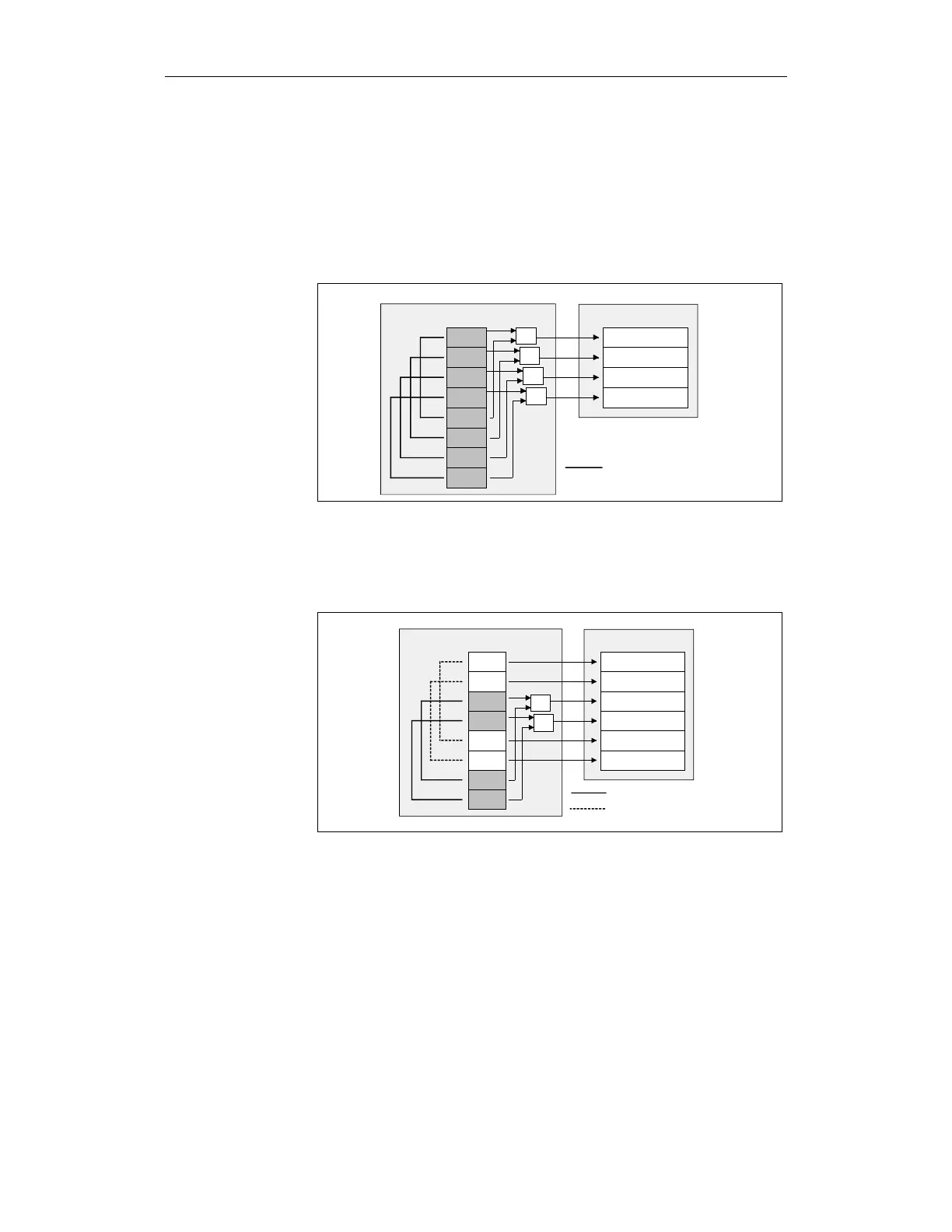

Fig. 3-48 2v2 mapping of the F-DI channels to SPL input data
• 1v1 parameterization
For 1v1 parameterization, the process signals of both channels are
transferred from the F-DI module and can thus supply 2 different SPL input
data.
ET 200S F-DI module
FDI_ND2.DSF
SINUMERIK 840D
Configuration channel x,y = 2v
2
Configuration channel x,y = 1v1
AND
AND
Channel 0
Channel 1
Channel 2
Channel 3
Channel 4
Channel 5
Channel 6
Channel 7
$A_INSE/INSEP n
$A_INSE/INSEP n+1
$A_INSE/INSEP n+2
$A_INSE/INSEP n+3
$A_INSE/INSEP n+4
$A_INSE/INSEP n+5
Fig. 3-49 2v2/1v1 mapping of the F-DI channels to SPL input data
