Siemens SINUMERIK 840D

7 Configuring example 11.03
7.6 SI I/Os using fail-safe modules connected to PROFIBUS DP
© Siemens AG 2003 All Rights Reserved
7-432 SINUMERIK 840D/SIMODRIVE 611 digital SINUMERIK Safety Integrated (FBSI) - Edition 11.03
The diagram below shows the parameter settings for the F-DO module:
(8) IM 151-1 HF
4 DO 24V/10A
PM-E F DC24V/10A 2 F-DO
4 F-DO DC24V/2A
4/8 F-DI DC24V
PM-E DC24V
6ES7 132-4BD30-0AA0
6ES7 138-4CF00-0AB0
6ES7 138-4FB00-0AA0
6ES7 138-4FA00-0AB0
6ES7 138-4CA00-0AA0
139...143
134...138
128...133
139...143
134...138
128...131
F-Zieladresse 1111111100 (hexadezimal 3FC)
F-Zieladresse 1111111101 (hexadezimal 3FD)
F-Zieladresse 1111111110 (hexadezimal 3FE)
Diagnose: Drahtbruch
Aktiviert
DO-Kanal 1
Diagnose: Drahtbruch
Aktiviert
DO-Kanal 0
Baugruppenparameter
F_Überwachungszeit (ms)
DIL-Schalterstellung (9........0)
F_Ziel_Adresse
F_Quell_Adresse
F-Parameter
Parameter
100
1111111101
1021
1: SI PLC315-2DP 2AF03
32.0...32.3
Eigenschaften - PM-E F DC24V/10A 2 F-DO DC24V/2A - (R-/S7)
Parameter
ParameterAdressenAllgemein
Wert
Baugruppe Bestellnummer E-Adre..... A-Adres.... D..... Kommentar
Diagnose: Drahtbruch
Aktiviert
DO-Kanal 3
Diagnose: Drahtbruch
Aktiviert
DO-Kanal 2
OK Abbrechen Hilfe

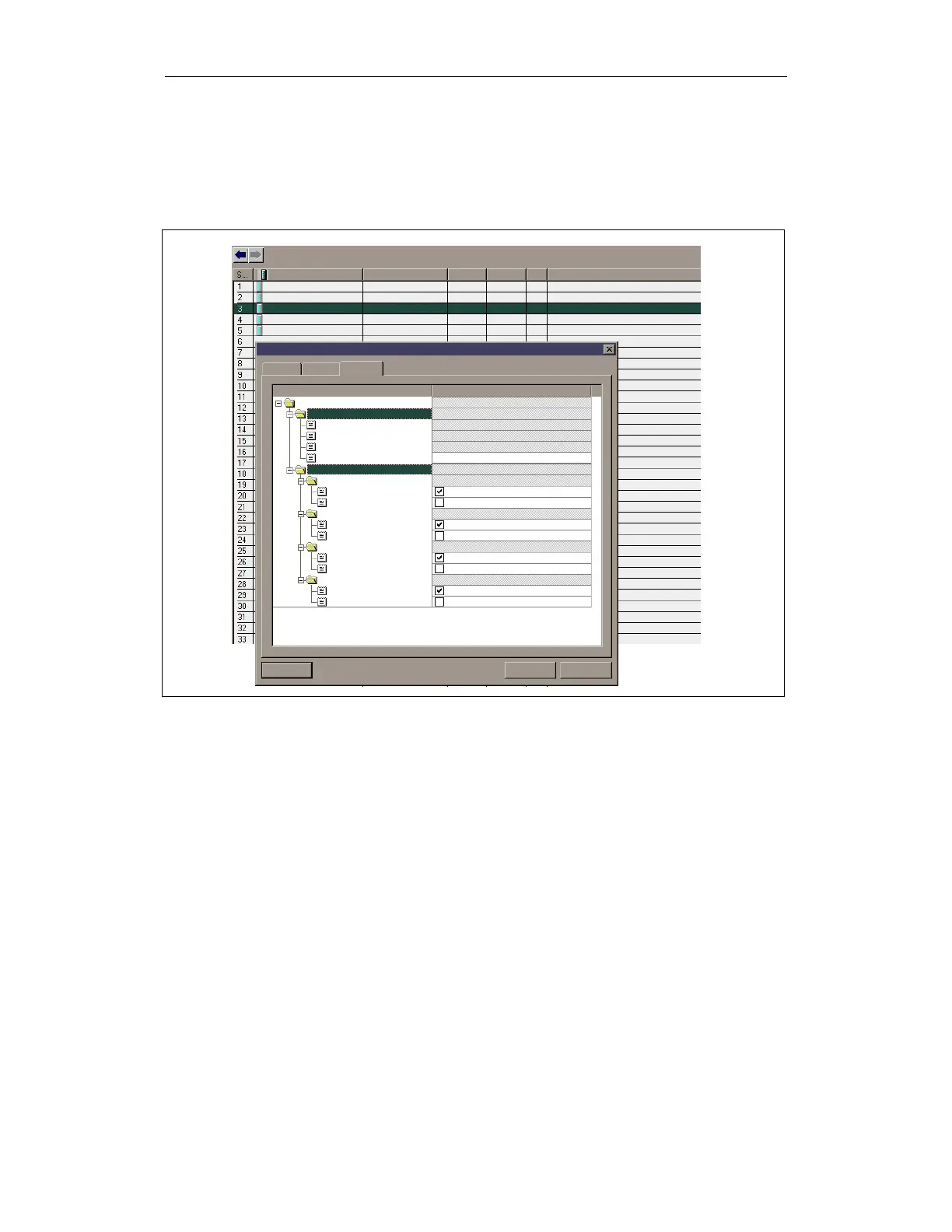

Fig. 7-36 Parameter settings for the F-DO module
The parameters of the F-DO module are explained below:
•
F parameters
The F parameters have already been explained in relation to the F/DI
module (cf. above). The target address for the F-DO module is 3FD in the
hexadecimal notation.
• DO channels
The individual DO channels can be separately activated and de-activated.
• Diagnostics: Wire breakage
Further, using Diagnostics: Wire breakage, it is possible to set as to
whether the connection from the output to the actuator for the particular
channel is checked for wire breakage; if wire breakage is detected, this is
signaled to the master.
Components of the
node IM151 HF:
F-DO module
Explanations of
parameters
