11.03 7 Configuring example
7.6 SI I/Os using fail-safe modules connected to PROFIBUS DP
© Siemens AG 2003 All Rights Reserved
SINUMERIK 840D/SIMODRIVE 611 digital SINUMERIK Safety Integrated (FBSI) - Edition 11.03
7-433
Components of the node IM151 HF: PM-E F module

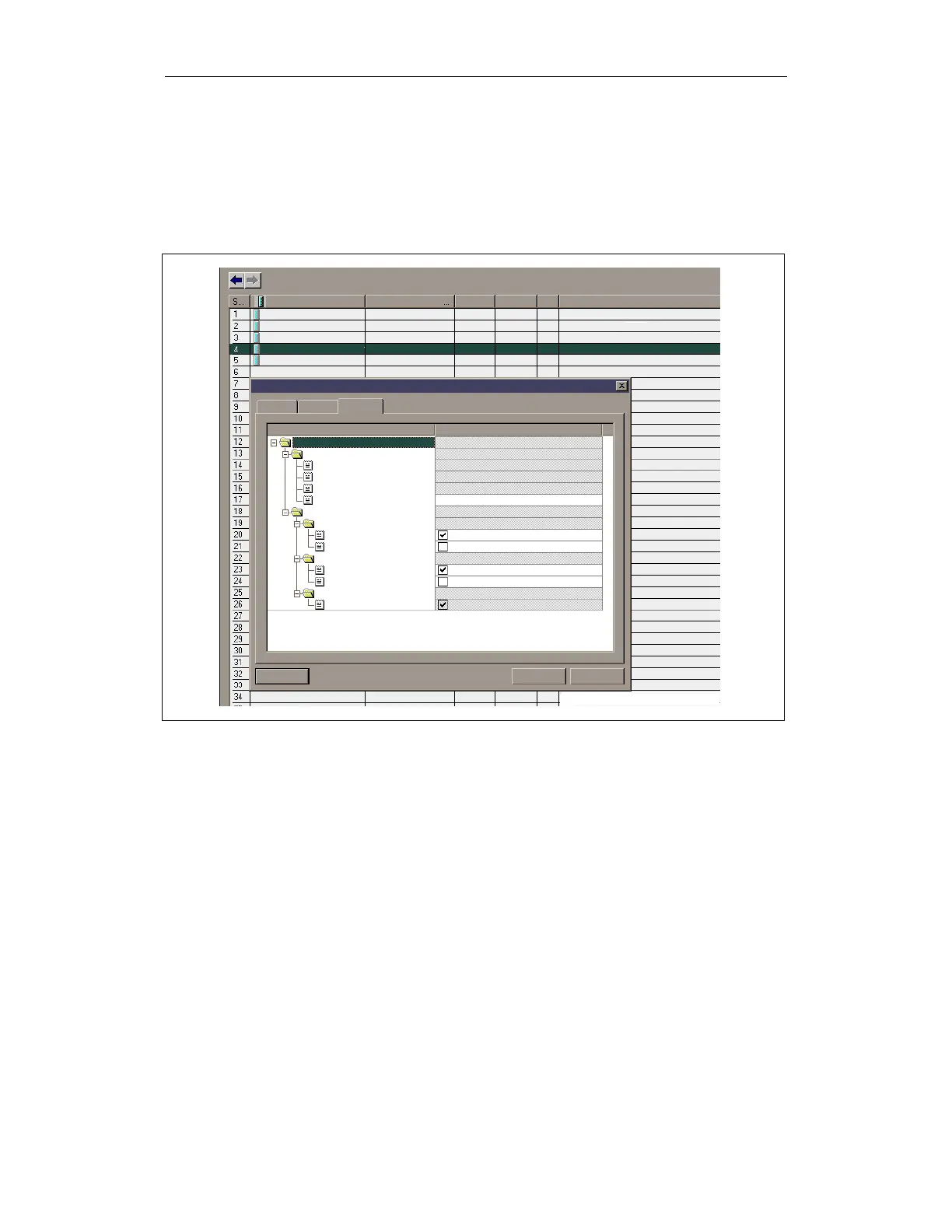

The diagram below shows the parameter settings for the PM-E F module:
(8) IM 151-1 HF
4 DO 24V/10A
PM-E F DC24V/10A 2 F-DO
4 F-DO DC24V/2A
4/8 F-DI DC24V
PM-E DC24V
6ES7 132-4BD30-0AA0
6ES7 138-4CF00-0AB0
6ES7 138-4FB00-0AA0
6ES7 138-4FA00-0AB0
6ES7 138-4CA00-0AA0
139...143
134...138
128...133
139...143
134...138
128...131
F-Zieladresse 1111111100 (hexadezimal 3FC)
F-Zieladresse 1111111101 (hexadezimal 3FD)
F-Zieladresse 1111111110 (hexadezimal 3FE)
Aktiviert
DO-Kanal 2 (P1/P2)
Diagnose: Drahtbruch
Aktiviert
DO-Kanal 1
Diagnose: Drahtbruch
Aktiviert
DO-Kanal 0
Baugruppenparameter
F_Überwachungszeit (ms)
DIL-Schalterstellung (9........0)
F_Ziel_Adresse
F_Quell_Adresse
F-Parameter
Parameter
100
1111111100
1020
1: SI PLC315-2DP 2AF03
32.0...32.3
Eigenschaften - PM-E F DC24V/10A 2 F-DO DC24V/2A - (R-/S7)
Parameter
ParameterAdressenAllgemein
Wert
OK Abbrechen Hilfe
Baugruppe Bestellnummer E-Adre..... A-Adres.... D..... Kommentar
Fig. 7-37 Parameter settings for the PM-E F module
The parameters of the PM-E F module are explained below:
•
F parameters
The F parameters have already been explained in relation to the F/DI
module (cf. above). The target address for the PM-E F module is 3FC in
the in hexadecimal notation.
• DO channel 0 / 1
The parameterization of the individual DO channels has already been
explained in relation to F-DO.
• DO channel 2 (P1/P2)
The third output pair (DO channel 2 (P1/P2)) cannot be de-activated. This
channel is used to internally switch-in or switch-out the safety-relevant
power supply to or from the downstream standard DO or also DI modules
(see Fig. 7-33).
Explanationen of
parameters
