3. Make the following settings in dialog "Assign PROFINET device name":
– PG/PC interface type: PN/IE
– PG/PC interface: Network card used, e.g. "Intel(R) 82579V Gigabit Network Connection"
The list of accessible nodes is updated in the dialog.

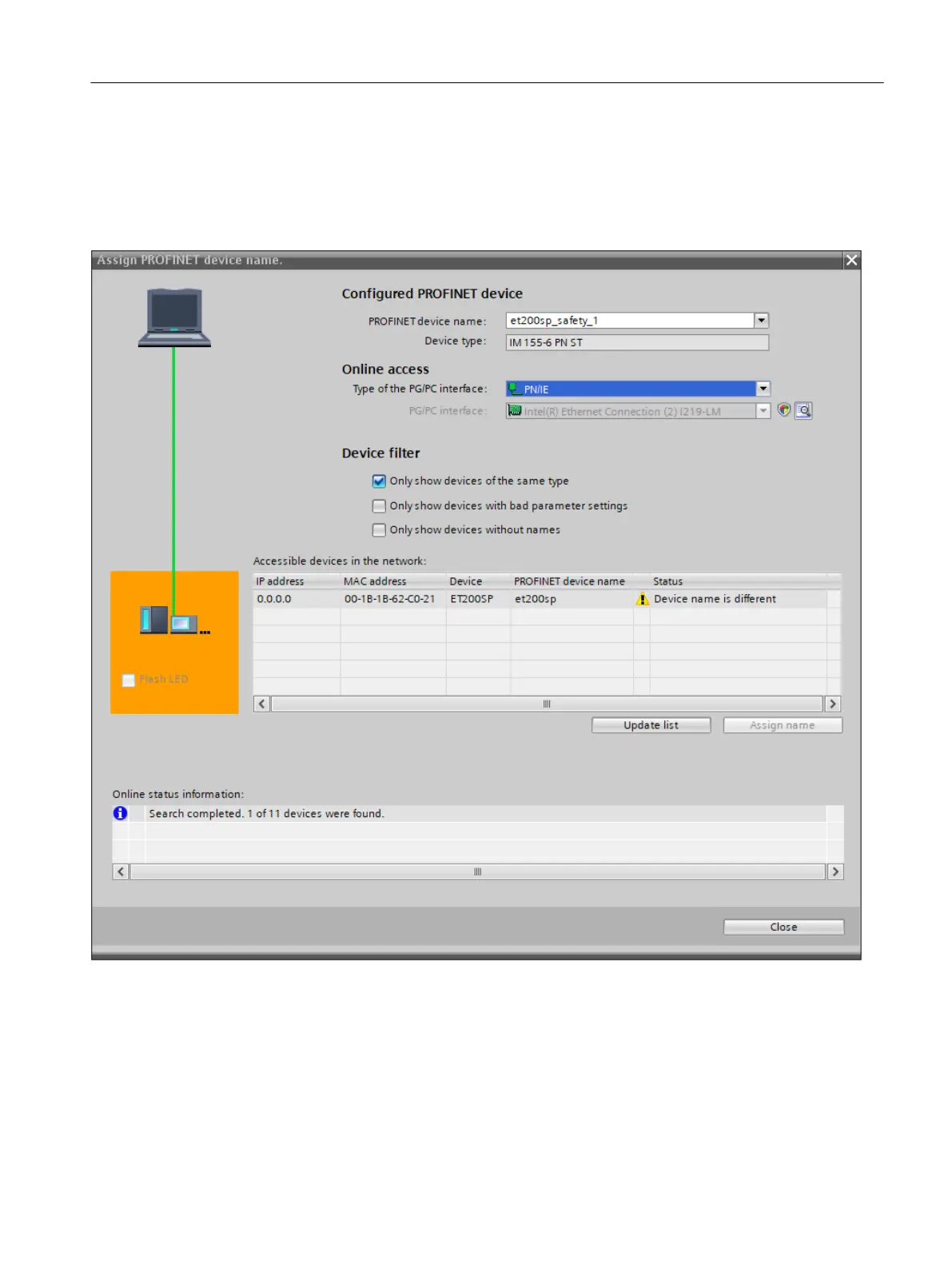

Figure 6-1 Dialog "Assigning a PROFINET device name"
4. Select the appropriate target device, e.g. based on the device type and IP address, and
confirm with "Name".
Commissioning and configuring
6.2 Configuring safety-relevant components
Safety Integrated (with SINAMICS S120)
Commissioning Manual, 02/2020, A5E46305916B AB 223
