6.5.8 Configuring encoderless operation
Precondition
● The SI commissioning mode (Page 249) is active for the drive to be configured.
● The drive is configured for operation without an encoder.
Call the startup screen form "Configuration mechanical/actual value sensing"
MENU SELECT > Commissioning > Menu forward key > Safety > Settings > Mechanical /actual
value sensing

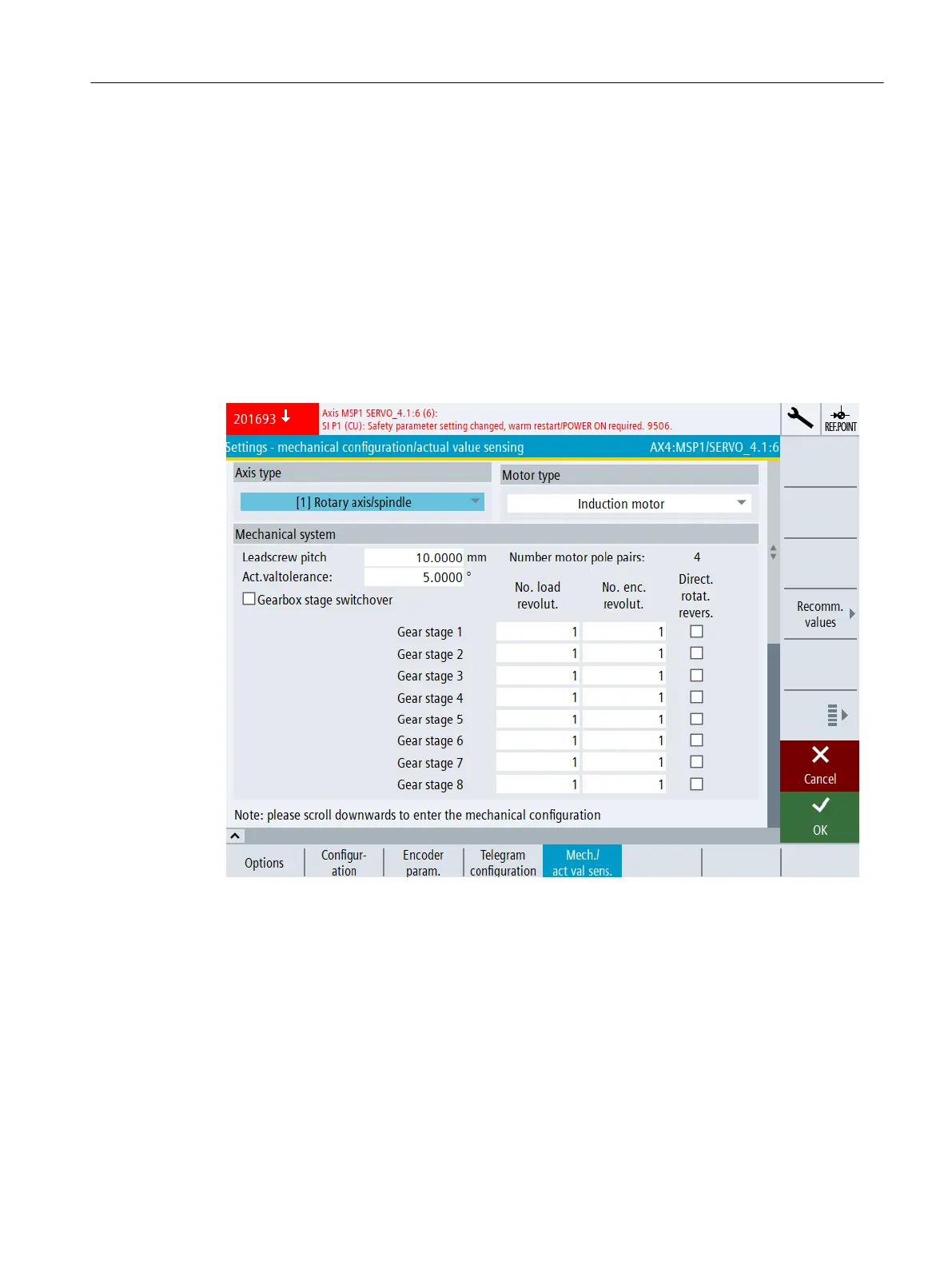

Figure 6-16 Commissioning screen form "Settings - configuration mechanical system/actual value
sensing: Mechanical system"
Commissioning and configuring
6.5 Configuring NC and drive-specific safety settings
Safety Integrated (with SINAMICS S120)
Commissioning Manual, 02/2020, A5E46305916B AB 259
