6.6.7 SBR
Precondition
● The Safety Integrated commissioning mode (Page 249) is active for the drive to be
configured.
● The drive is configured for operation without an encoder and Extended Functions.
● Safety function SS1 with stop response OFF3 is configured for the drive.
Displaying the "Safe brake ramp - SBR" startup screen form
MENU SELECT > Commissioning > Menu forward key > Safety > Functions > SBR

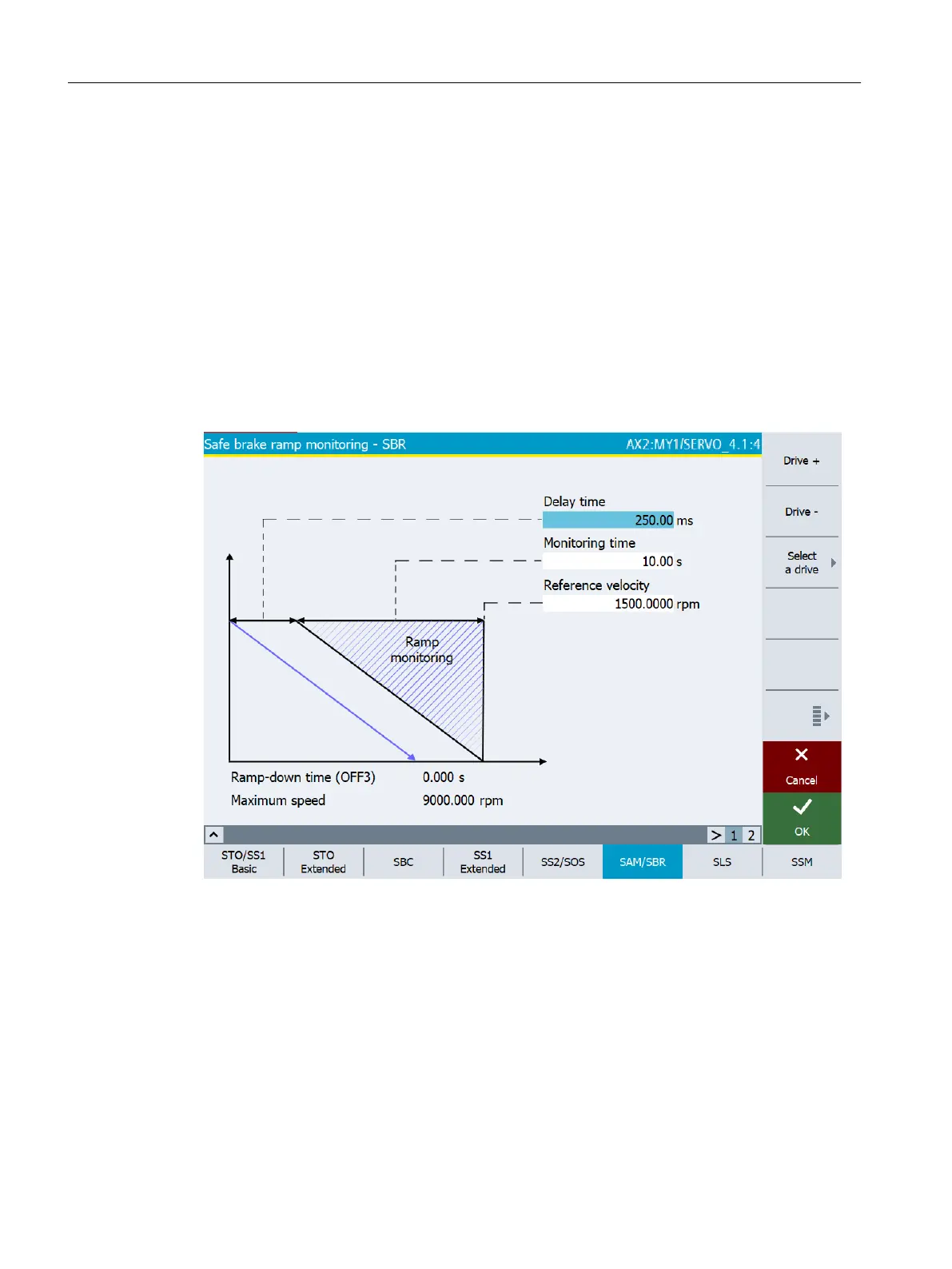

Figure 6-25 Safe braking ramp - SBR
Commissioning and configuring
6.6 Configuring safety functions integrated in the drive
Safety Integrated (with SINAMICS S120)
280 Commissioning Manual, 02/2020, A5E46305916B AB
