Procedure
To establish a communication connection between two devices, proceed as follows:
1. Call menu "Online > Accessible nodes".
2. In the drop-down lists "Type of PG/PC interface" and "PG/PC interface", select the interface
used.
If no devices are accessible at an interface, the connecting line between the PG/PC and the
device is interrupted. If devices are accessible, the connecting line is shown and the devices
accessible at the selected interface of the PG/PC are displayed in a list.

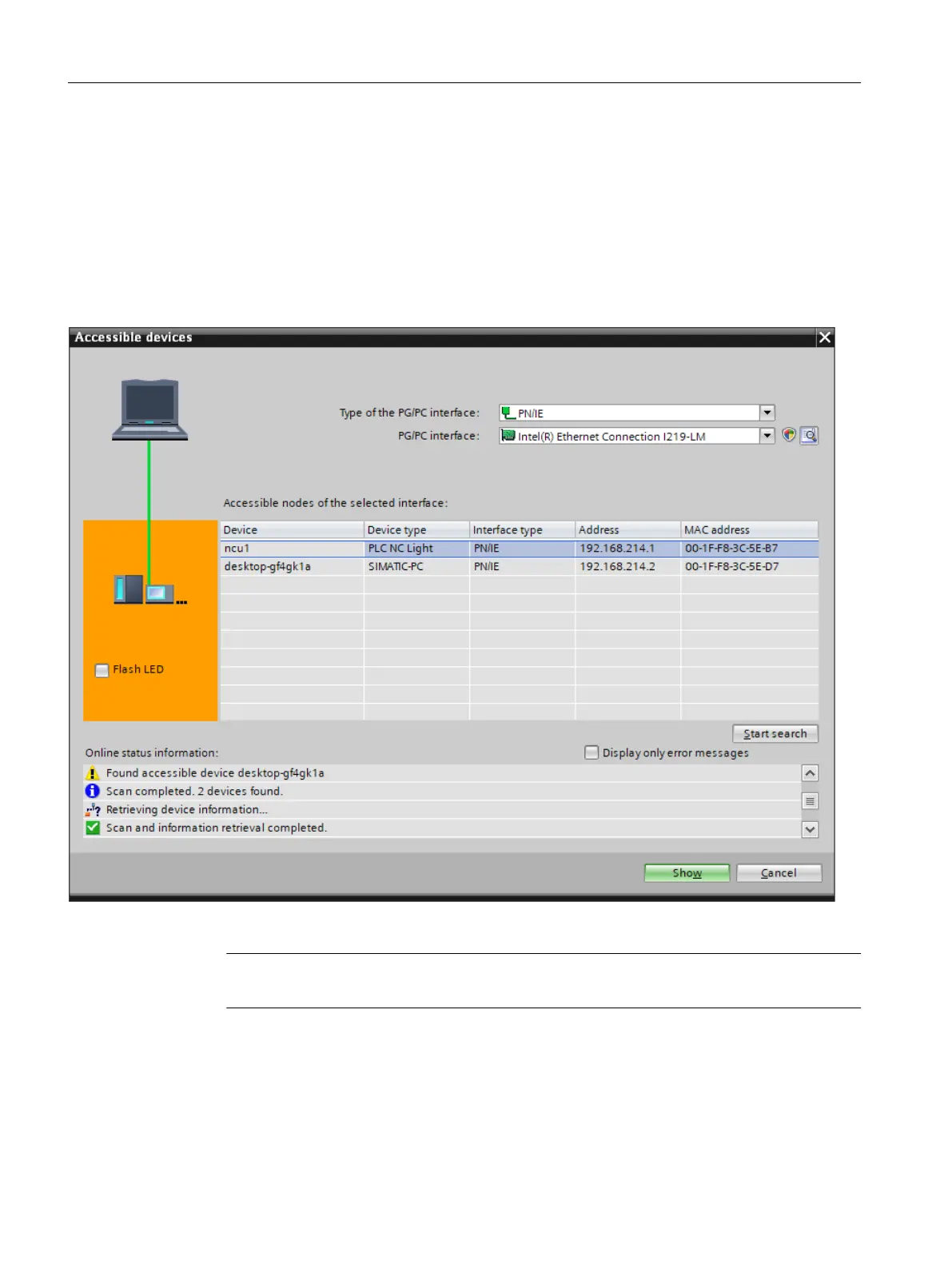

Figure 2-13 Accessible nodes
Note
The PC system already connected to the CP is also displayed as a communication node.
Fundamentals
2.8 Device configuration
Safety Integrated (with SINAMICS S120)
46 Commissioning Manual, 02/2020, A5E46305916B AB
