References
● Additional information is available in the following references:
Function Manual, Basic Functions; Chapter, "Contour/orientation tolerance"
● For information about configuring the displayed G groups, refer to the following document:
SINUMERIK Operate Commissioning Manual
Procedure

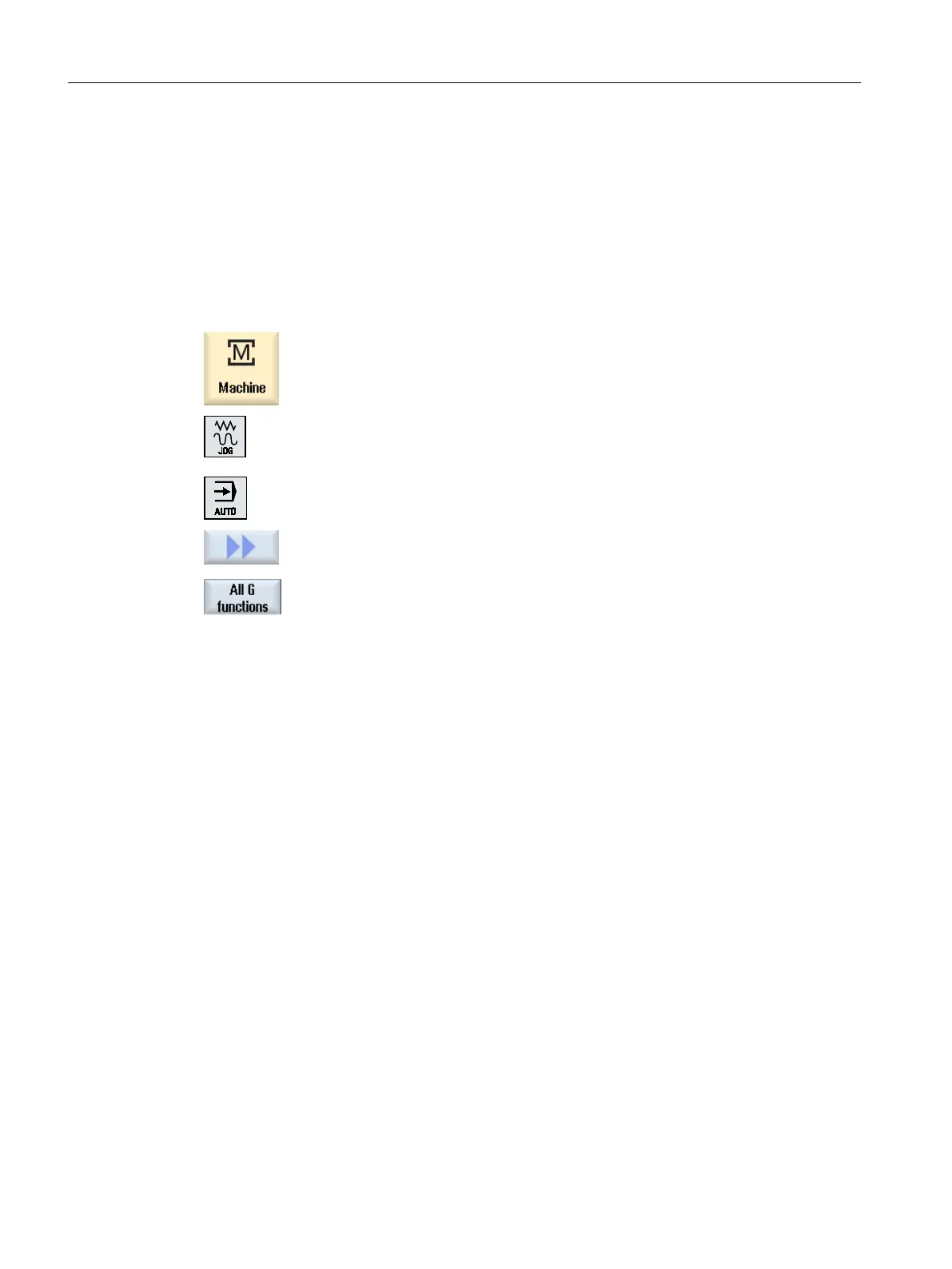

1. Select the "Machine" operating area
2.
Press the <JOG>, <MDI> or <AUTO> key.
3. Press the ">>" and "All G functions" softkeys.
The "G Functions" window is opened.
6.13.4 Auxiliary functions
Auxiliary functions include M and H functions preprogrammed by the machine manufacturer,
which transfer parameters to the PLC to trigger reactions defined by the manufacturer.
Displayed auxiliary functions
Up to five current M functions and three H functions are displayed in the "Auxiliary Functions"
window.
Machining the workpiece
6.13 Displaying G Functions and Auxiliary Functions
Milling
252 Operating Manual, 08/2018, 6FC5398-7CP41-0BA0
