8.8 Selection of the cycles via softkey

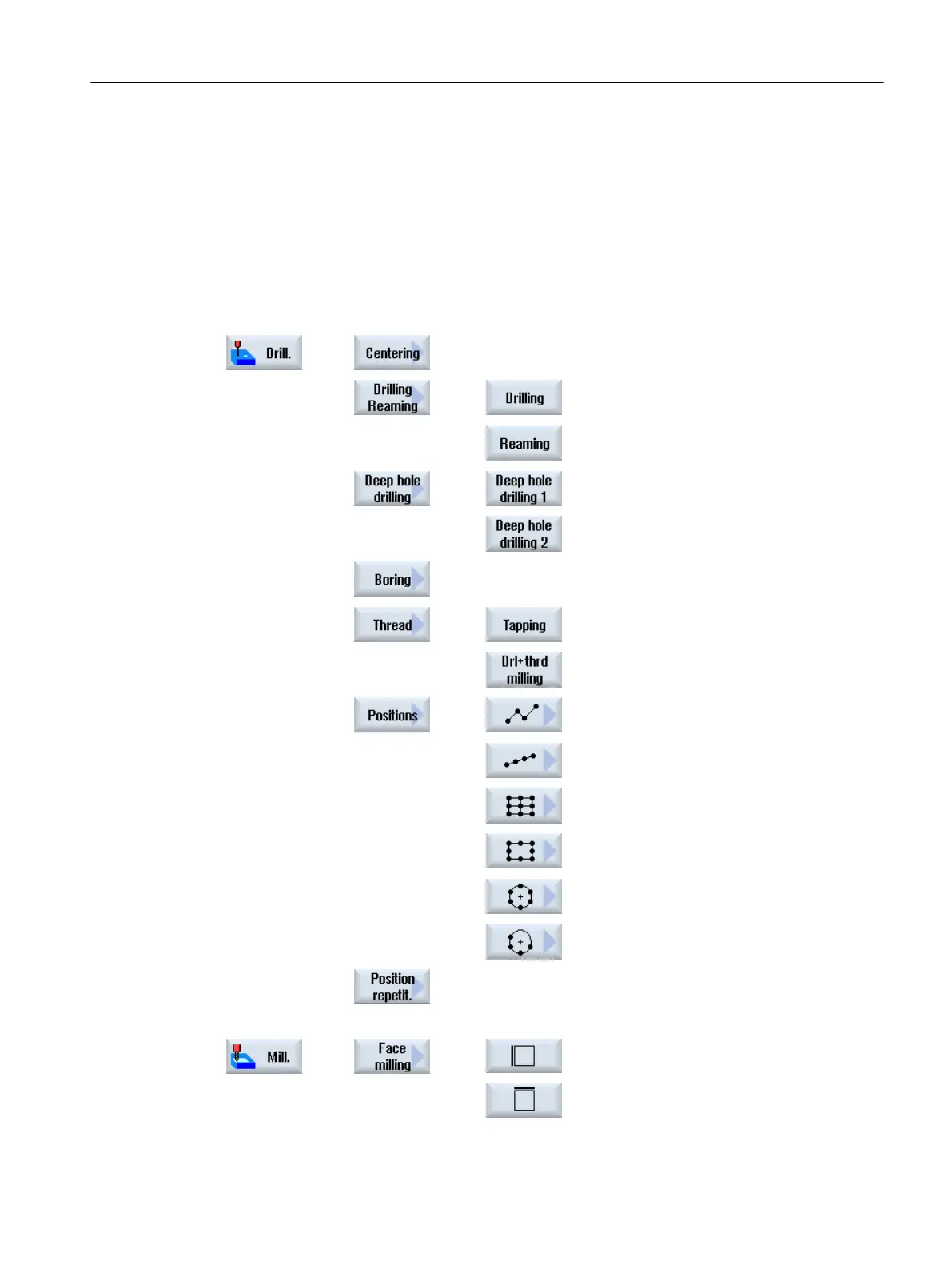

Overview of machining steps
The following softkey bars are available to insert machining steps.
All of the cycles/functions available in the control are shown in this display. However, at a
specific system, only the steps possible corresponding to the selected technology can be
selected.
⇒
⇒
⇒
⇒
⇒
⇒ ⇒
Generating a G code program
8.8 Selection of the cycles via softkey
Milling
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0 307
