3.4 Multitouch user interface
3.4.1 Screen layout

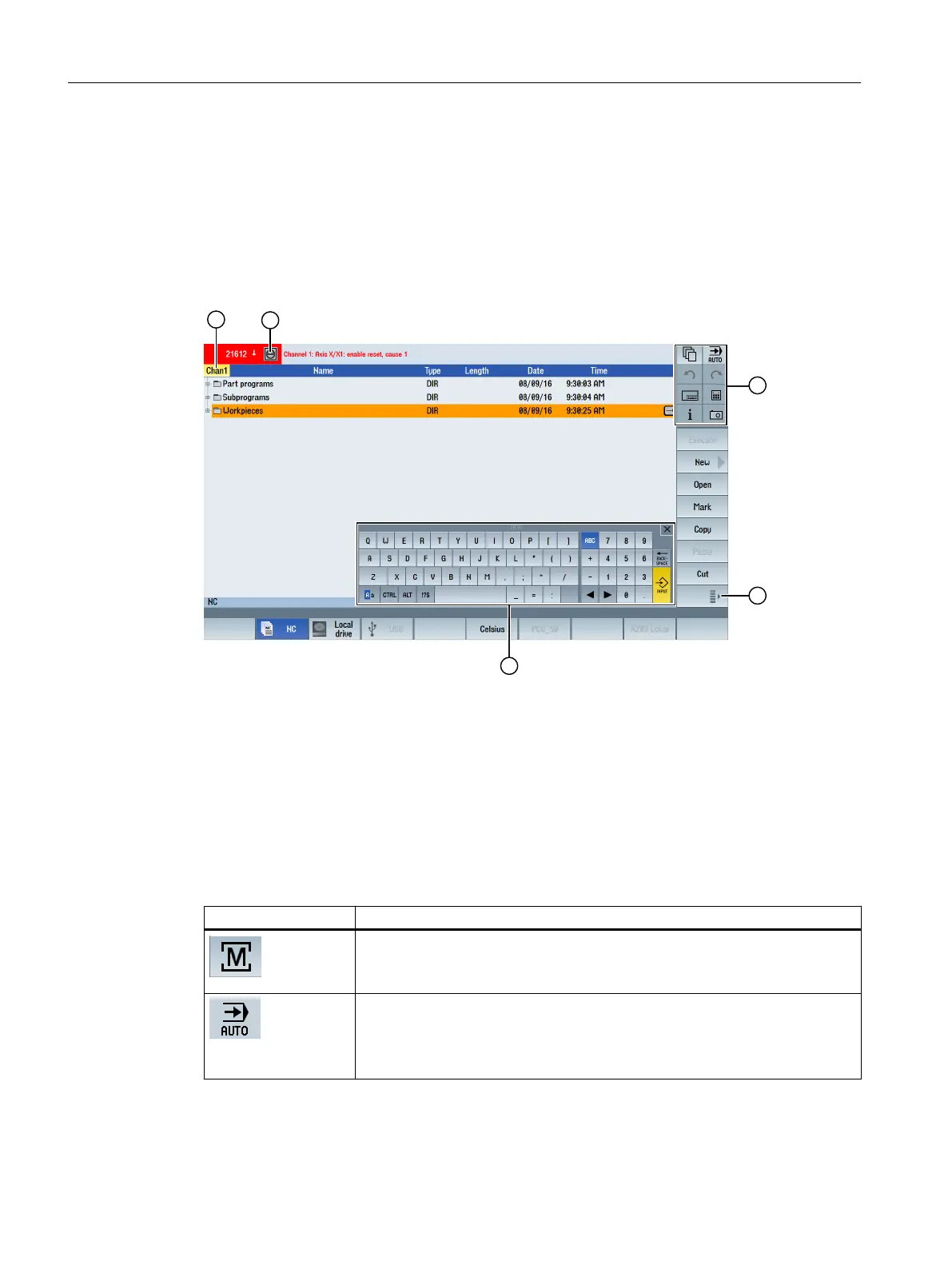

Touch and gesture operator controls for SINUMERIK Operate with the "SINUMERIK Operate
Generation 2" user interface.
Changing the channel
Cancel alarms
Function key block
Display next vertical softkey bar
Virtual keyboard
3.4.2 Function key block
Operator control Function
Switch operating area
Tap the current operating area, and select the desired operating area from the
operating area bar.
Switch operating mode
The operating mode is only displayed.
To switch the operating mode, tap the operating area and select the operating
area from the vertical softkey bar.
Multitouch operation with SINUMERIK Operate
3.4 Multitouch user interface
Milling
74 Operating Manual, 08/2018, 6FC5398-7CP41-0BA0
