Example
3ROH


r
r
3
3
<
;



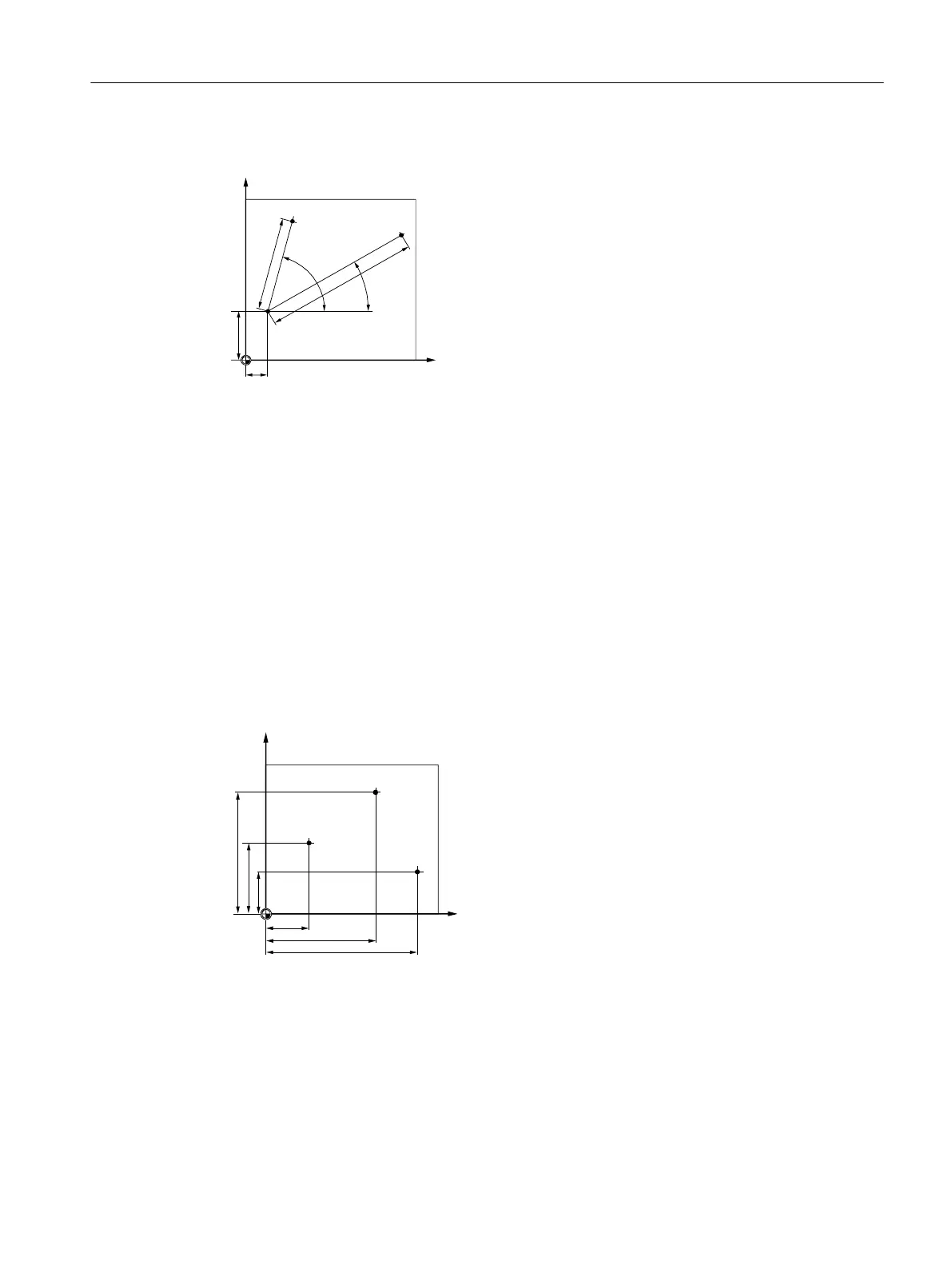

Points P1 and P2 can then be described – with reference to the pole – as follows:
P1: Radius =100 / angle =30°
P2: Radius =60 / angle =75°
9.3.3 Absolute and incremental dimensions
Absolute dimensions
With absolute dimensions, all the position specifications refer to the currently valid zero point.
Applied to tool movement this means: The absolute dimension data defines the position, to
which the tool is to travel.
Example



3
3
3



<
;
The position data points P1 to P3 in absolute dimensions relative to the zero point are the
following:
P1: X20 Y35
P2: X50 Y60
P3: X70 Y20
Creating a ShopMill program
9.3 Fundamentals
Milling
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0 325
