8.2 Program views
You can display a G code program in various ways.
● Program view
● Parameter screen, either with help screen or graphic view
Note
Help screens / animations
Please note that not all the conceivable kinematics can be displayed in help screens and
animations of the cyclic support.
Program view
The program view in the editor provides an overview of the individual machining steps of a
program.

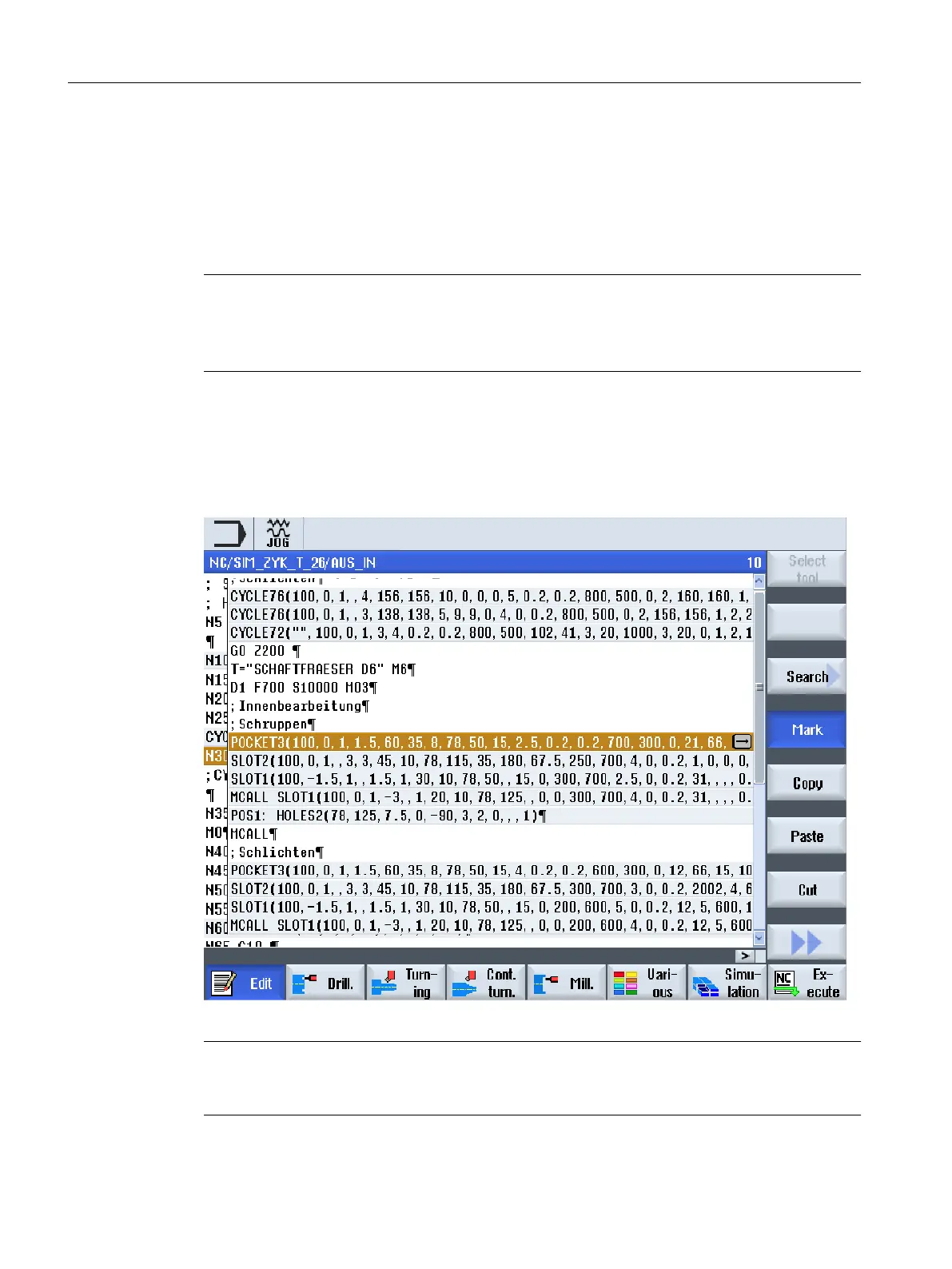

Figure 8-1 Program view of a G code program
Note
In the program editor settings, you define as to whether cycle calls are to be displayed as plain
text or in NC syntax. You can also configure the recording of the machining times
Generating a G code program
8.2 Program views
Milling
296 Operating Manual, 08/2018, 6FC5398-7CP41-0BA0
