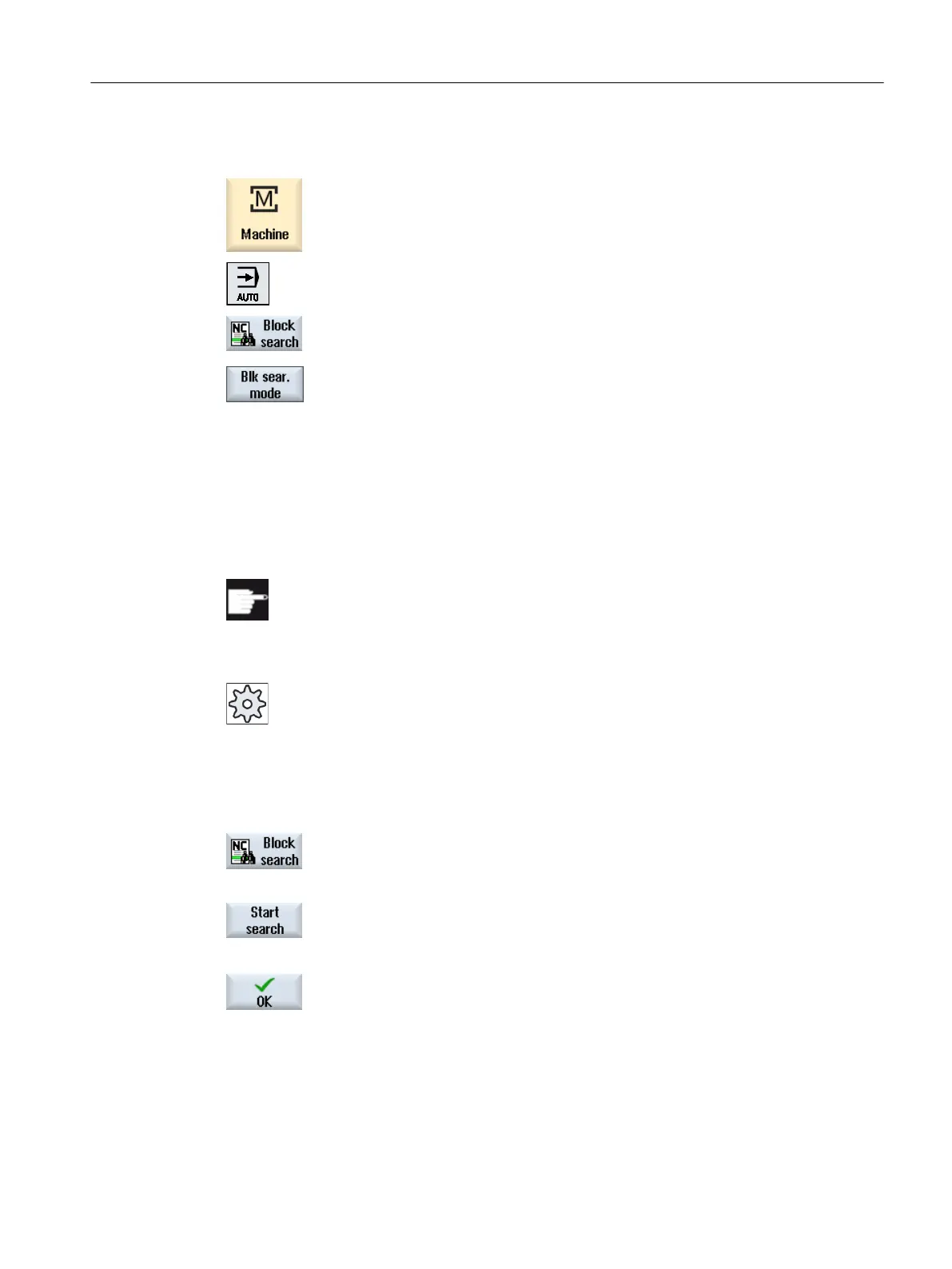

Procedure
1. Select the "Machine" operating area.
2. Press the <AUTO> key.
3. Press the "Block search" and "Block search mode" softkeys.
The "Search Mode" window opens.
6.7.8 Block search to a position pattern for ShopMill programs
For ShopMill programs, you have the possibility of performing a block search on the position
pattern. You define the technology with which you wish to start - as well as the number of the
starting hole.
Software option
You require the "ShopMill/ShopTurn" option for the block search for ShopMill
machining step programs.
Machine manufacturer
Please observe the information provided by the machine manufacturer.
Procedure
The required ShopMill program is in the block display.
1. Press the "Block search" softkey.
2. Position the cursor to the position block.
3. Press the "Start search" softkey.
The "Block search" window opens.
All of the technologies used in the program are listed.
4. Select the required technology and press the "OK" softkey
The selected technology is displayed in the "Search" window.
Machining the workpiece
6.7 Starting machining at a specific point
Milling
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0 207
