3.5.8 "Tool" widget

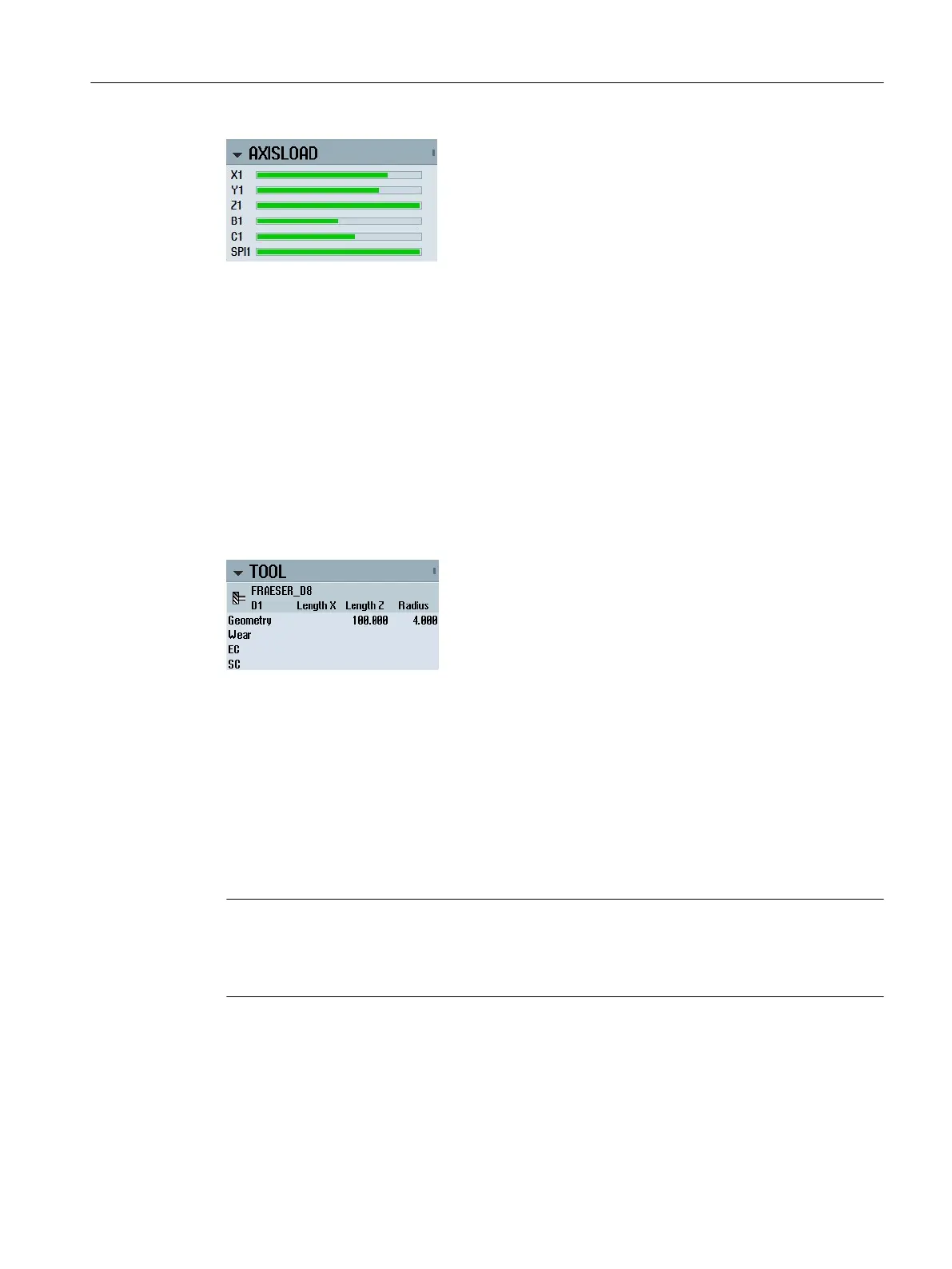

The widget contains the geometry and wear data for the active tool.
The following information is additionally displayed depending on the machine configuration:
● EC: Active location-dependent offset - setting up offset
● SC: Active location-dependent offset - additive offset
● TOFF: Programmed tool length offset in WCS coordinates, and programmed tool radius
offset
● Override: Value of the overridden movements that were made in the individual tool directions
3.5.9 "Service life" widget
The widget displays the tool monitoring in relation to the following values:
● Operating time of tool (standard time monitoring)
● Finished workpieces (quantity monitoring)
● Tool wear (wear monitoring)
Note
Multiple cutting edges
If a tool has multiple cutting edges, the values of the edge with the lowest residual service life,
quantity and wear is displayed.
It possible to alternate between views by scrolling horizontally.
Multitouch operation with SINUMERIK Operate
3.5 Expansion with side screen
Milling
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0 81
