13.3 Tool types
A number of tool types are available when you create a new tool. The tool type determines
which geometry data is required and how it will be computed.
Note
Turning on milling machine
If you are working on a milling/turning machine, when creating tools, turning tools are also
available in addition to drilling, milling and special tools.
Machine manufacturer
Please refer to the machine manufacturer's specifications.
Tool types

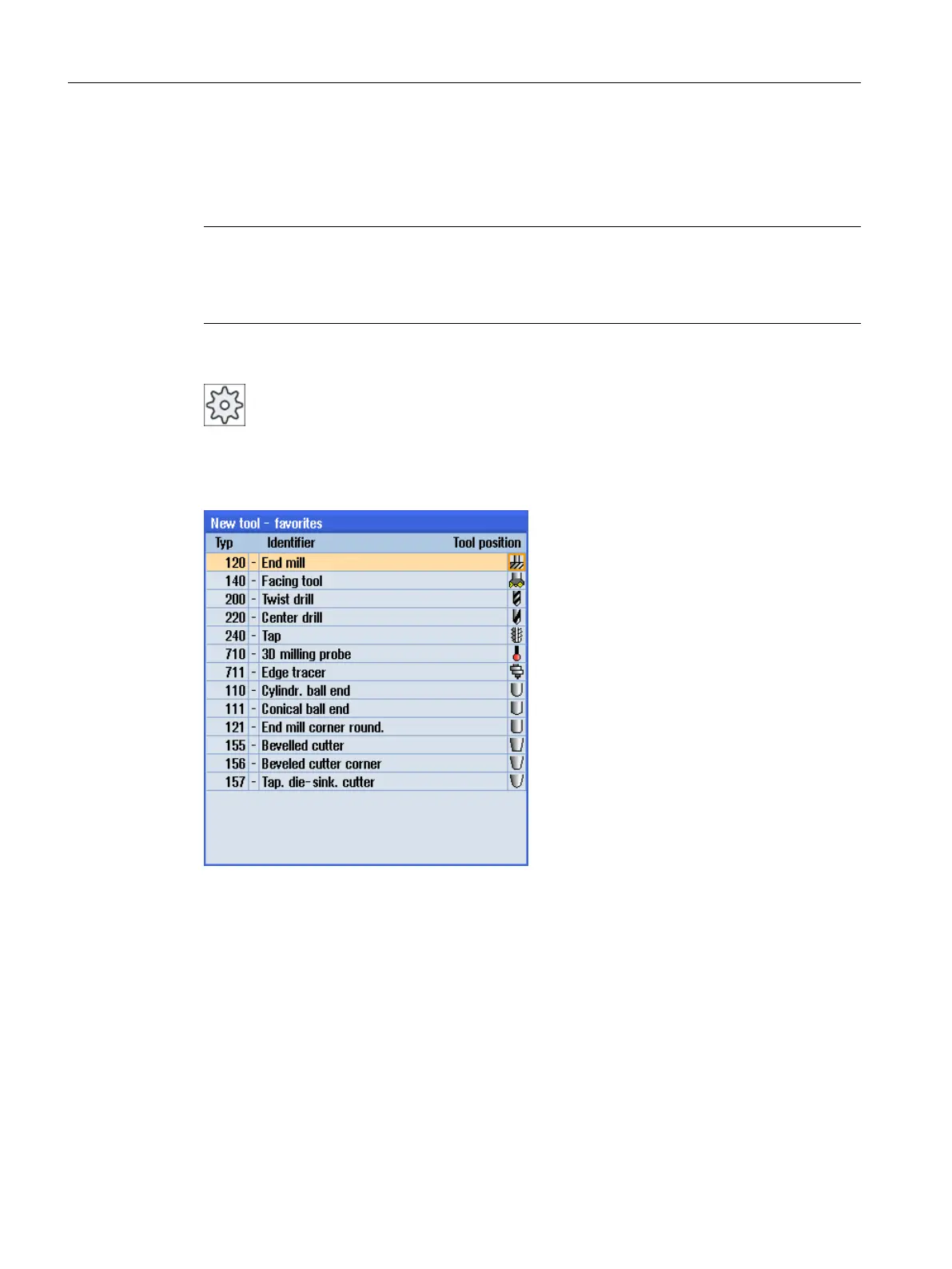

Figure 13-1 Favorites-standard selection for a milling machine
Tool management
13.3 Tool types
Milling
688 Operating Manual, 08/2018, 6FC5398-7CP41-0BA0

Siemens SINUMERIK Series Specifications

General

Axes Control	Up to 31 axes
Category	Control Unit
Manufacturer	Siemens
Series	SINUMERIK
Control Type	CNC
Communication Interfaces	Ethernet, USB
Operating Temperature	0°C to 45°C
Protection Class	IP20
Power Supply	24V DC
Display	Color TFT LCD
