Siemens SINUMERIK Series User Manual

Parameter Description Unit
α1 Rotation of the coordinate system Degrees
Other M function Input of machine functions
Refer to the machine manufacturer's table for the correlation between the meaning
and number of the function.
Zero offset Selecting the zero offset.

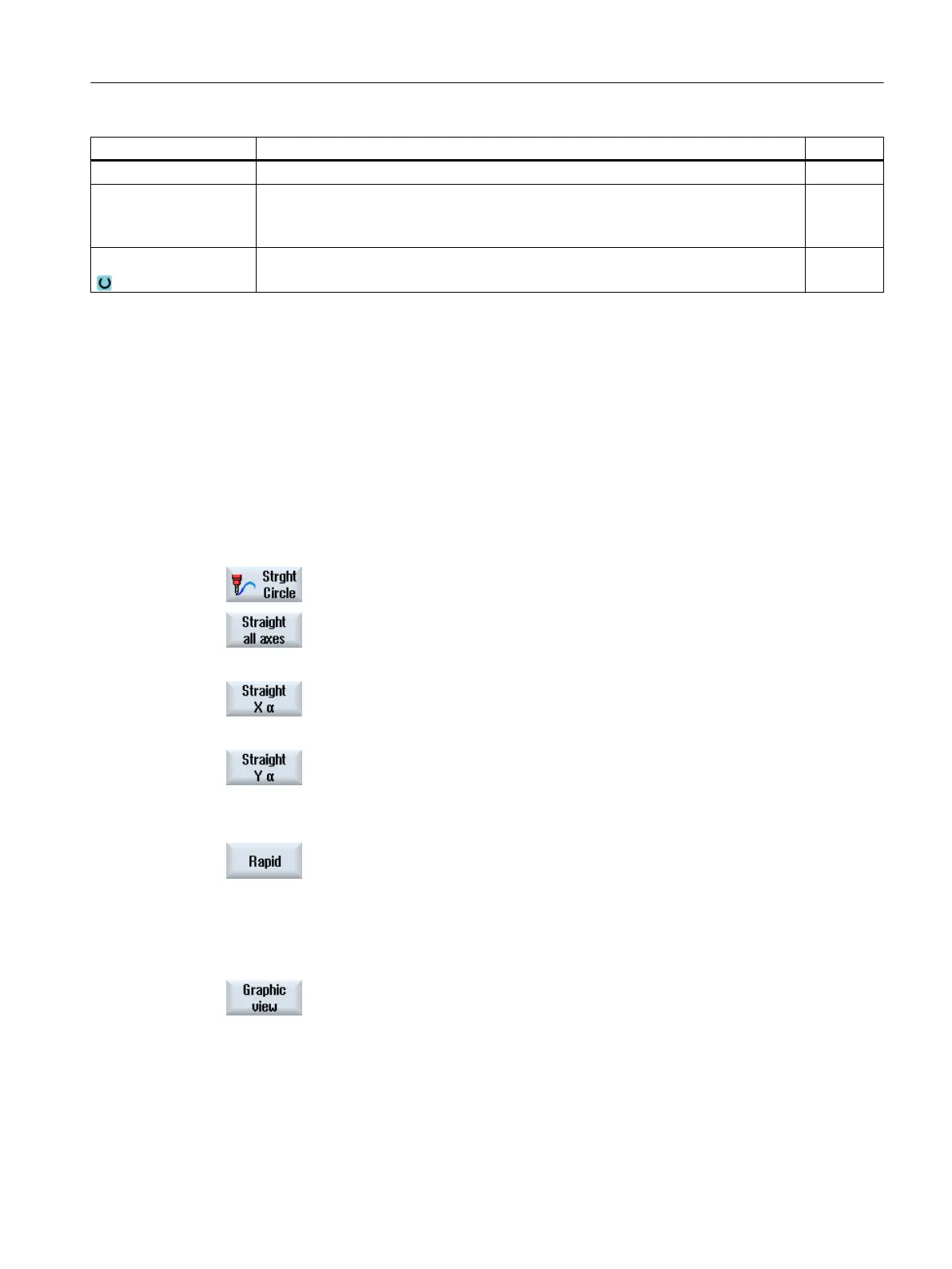

16.6.3 Straight and circular machining
16.6.3.1 Straight milling
Use this function for simple, straight machining (e.g. face or longitudinal turning).
Procedure
1. "Manual Machine" is active.
2. Press the "Straight Circle" softkey.
3. Select the desired straight machining and press the "Straight all axes"
softkey
- OR -
Press the "Straight X α" softkey.
- OR -
Press the "Straight X α" softkey.
4. Specify the desired value for the feedrate F.
- OR -
Press the "Rapid traverse" softkey.
The rapid traverse is displayed in field "F".
5. Enter the target position and, if required, the angle (α) for the axis or axes
to be traversed.
Using the "Graphic view" softkey, you can toggle between the help screen
and the graphic view in the screen.
Working with Manual Machine
16.6 Simple workpiece machining
Milling
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0 839
