EP 1.0
ER 2.0
Solid machining Complete machining
4. Press the "Accept" softkey.
You also program the four countersinks ∅16 and 4 deep using a circular pocket and repeating
positions 2, 3 and 4.
9.18.3 Results/simulation test

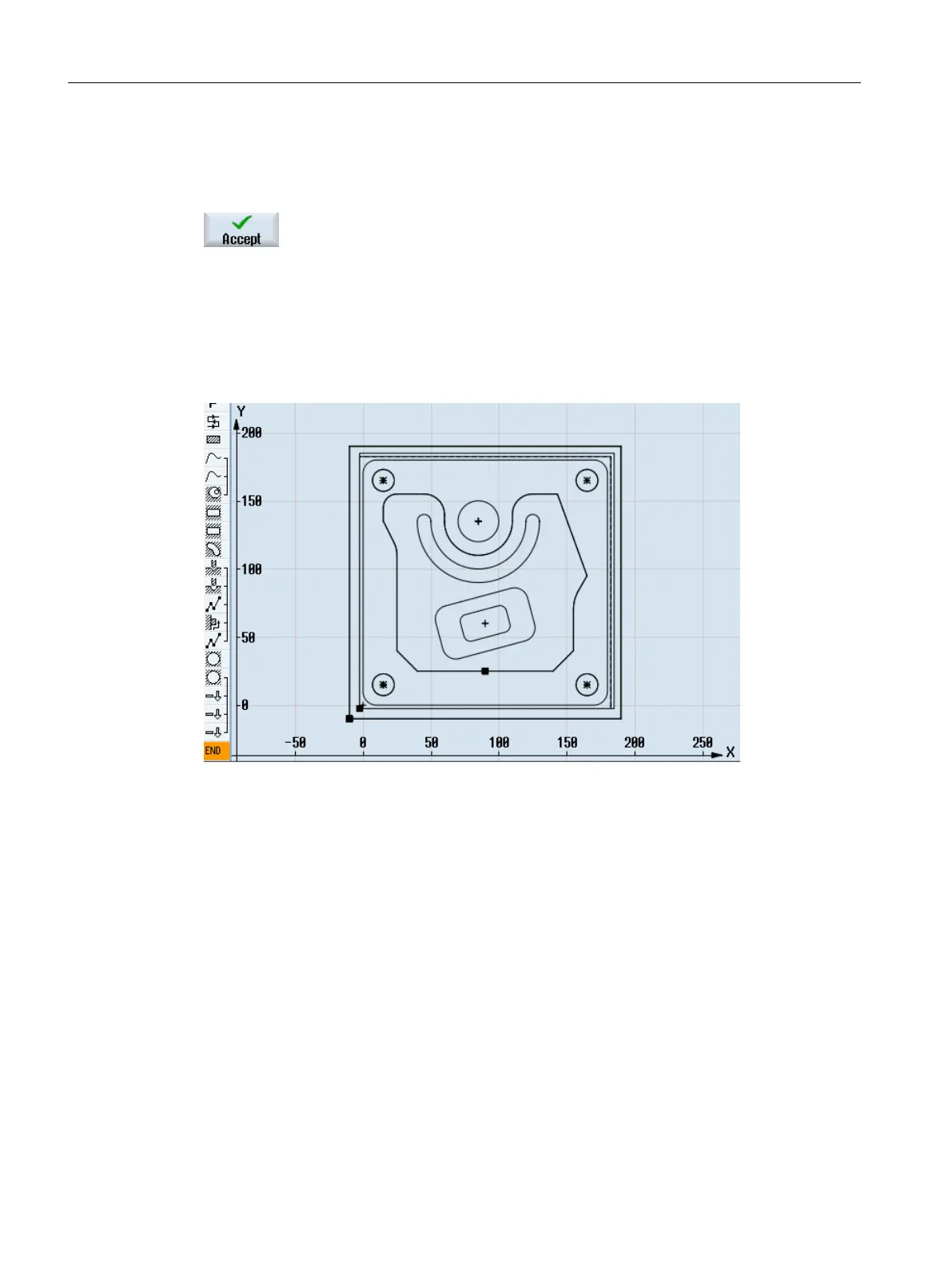

Figure 9-5 Programming graphics
Creating a ShopMill program
9.18 Example, standard machining
Milling
366 Operating Manual, 08/2018, 6FC5398-7CP41-0BA0
