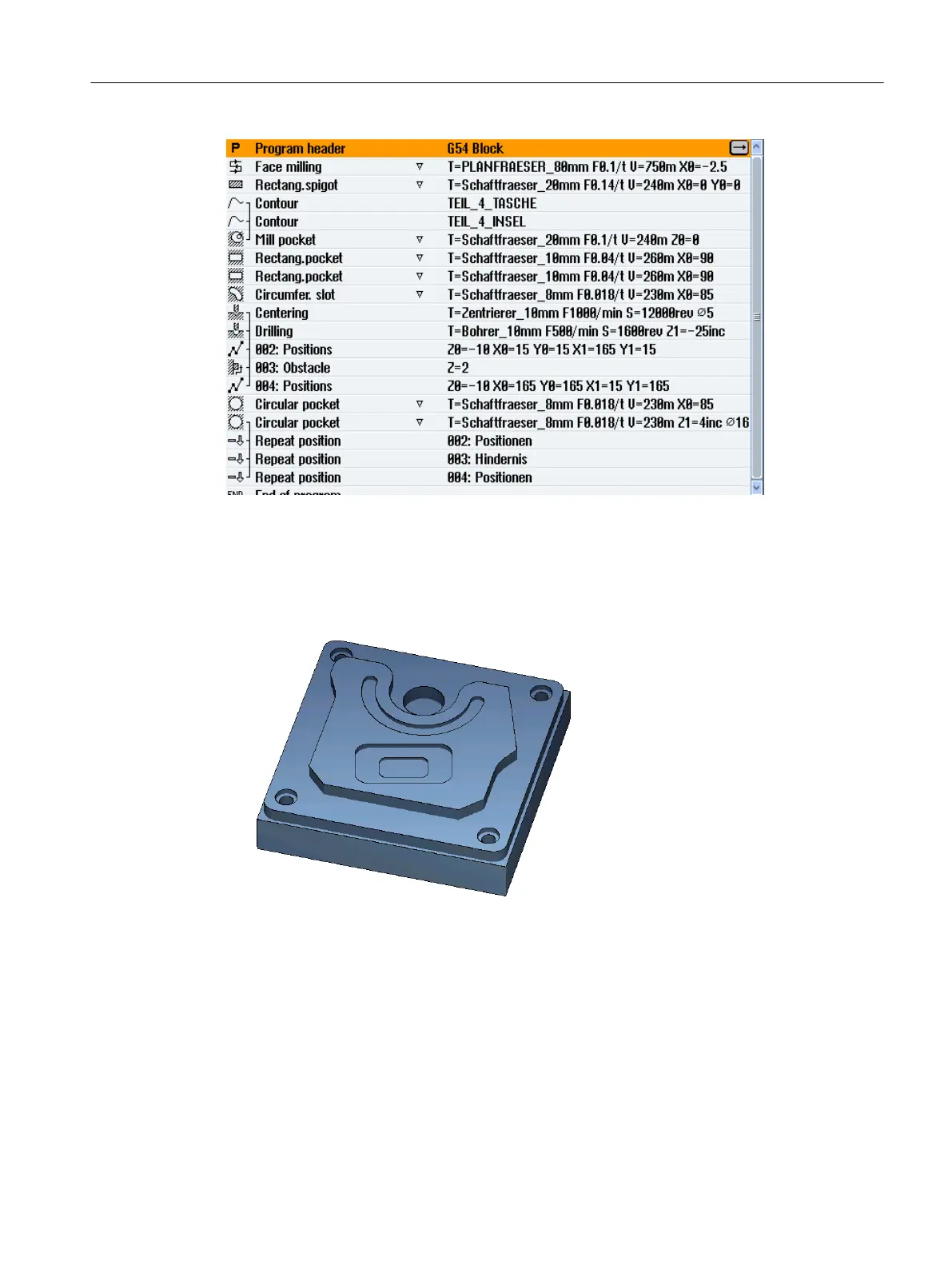

Figure 9-6 Machining schedule
Program test by means of simulation
During simulation, the current program is calculated in its entirety and the result displayed in
graphic form.
Figure 9-7 3D view
Creating a ShopMill program
9.18 Example, standard machining
Milling
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0 367
