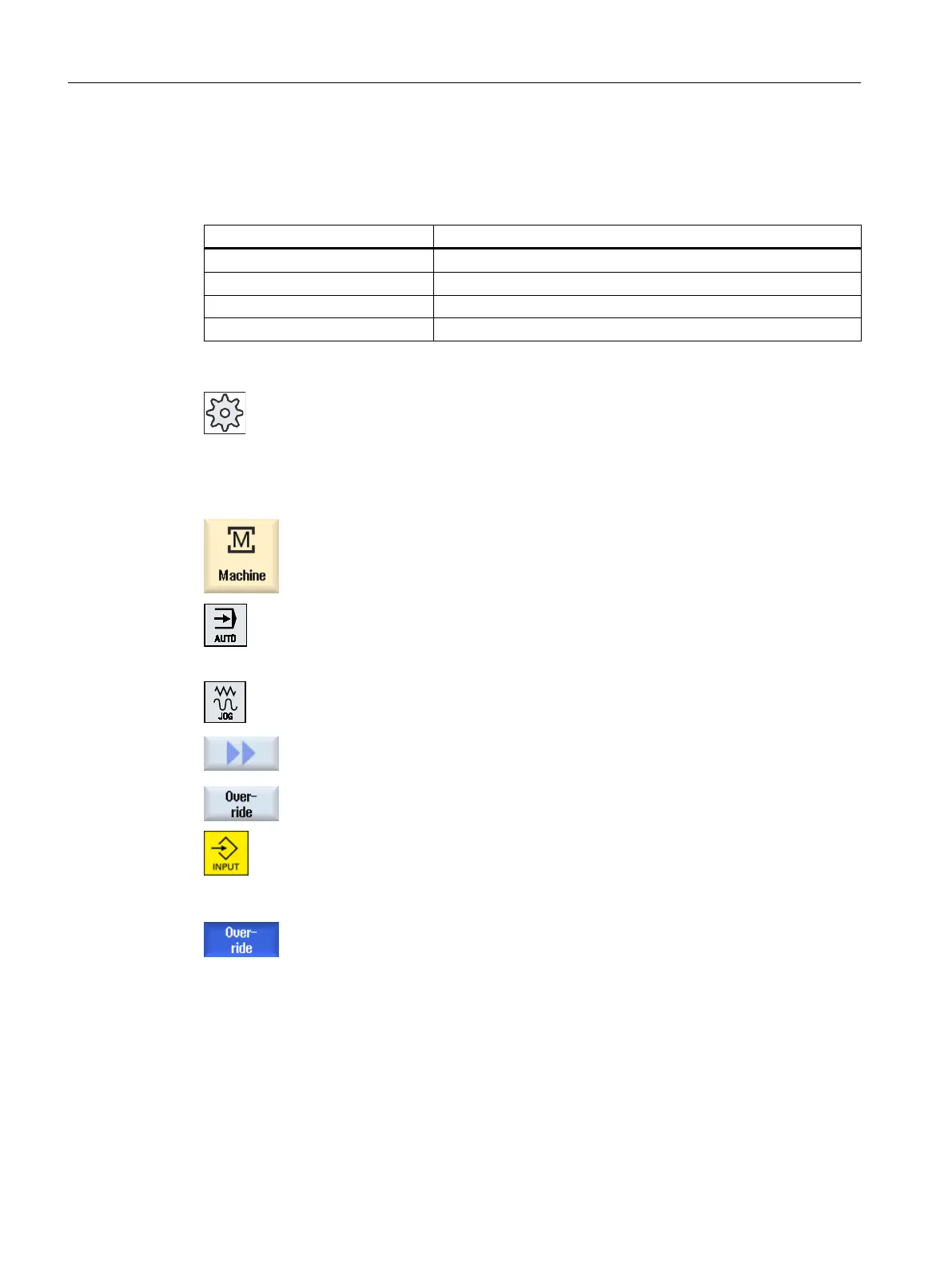

6.14 Displaying superimpositions
You can display handwheel axis offsets or programmed superimposed movements in the
"Superimpositions" window.
Input field Meaning
Tool Current superimposition in the tool direction
Min Minimum value for superimposition in the tool direction
Max Maximum value for superimposition in the tool direction
DRF Displays the handwheel axis offset
The selection of values displayed in the "Superimposition" window may differ.
Machine manufacturer
Please observe the information provided by the machine manufacturer.
Procedure
1. Select the "Machine" operating area.
2. Press the <AUTO>, <MDI> or <JOG> key.
...
3. Press the ">>" and "Superimposition" softkeys.
The "Superimposition" window opens.
4. Enter the required new minimum and maximum values for superimposi‐
tion and press the <INPUT> key to confirm your entries.
Note:
You can only change the superimposition values in "JOG" mode.
5. Press the "Superimposition" softkey again to hide the window.
You can display status information for diagnosing synchronized actions in the "Synchronized
Actions" window.
You get a list with all currently active synchronized actions.
In this list, the synchronized action programming is displayed in the same form as in the part
program.
Machining the workpiece
6.14 Displaying superimpositions
Milling
254 Operating Manual, 08/2018, 6FC5398-7CP41-0BA0
