3.5.12

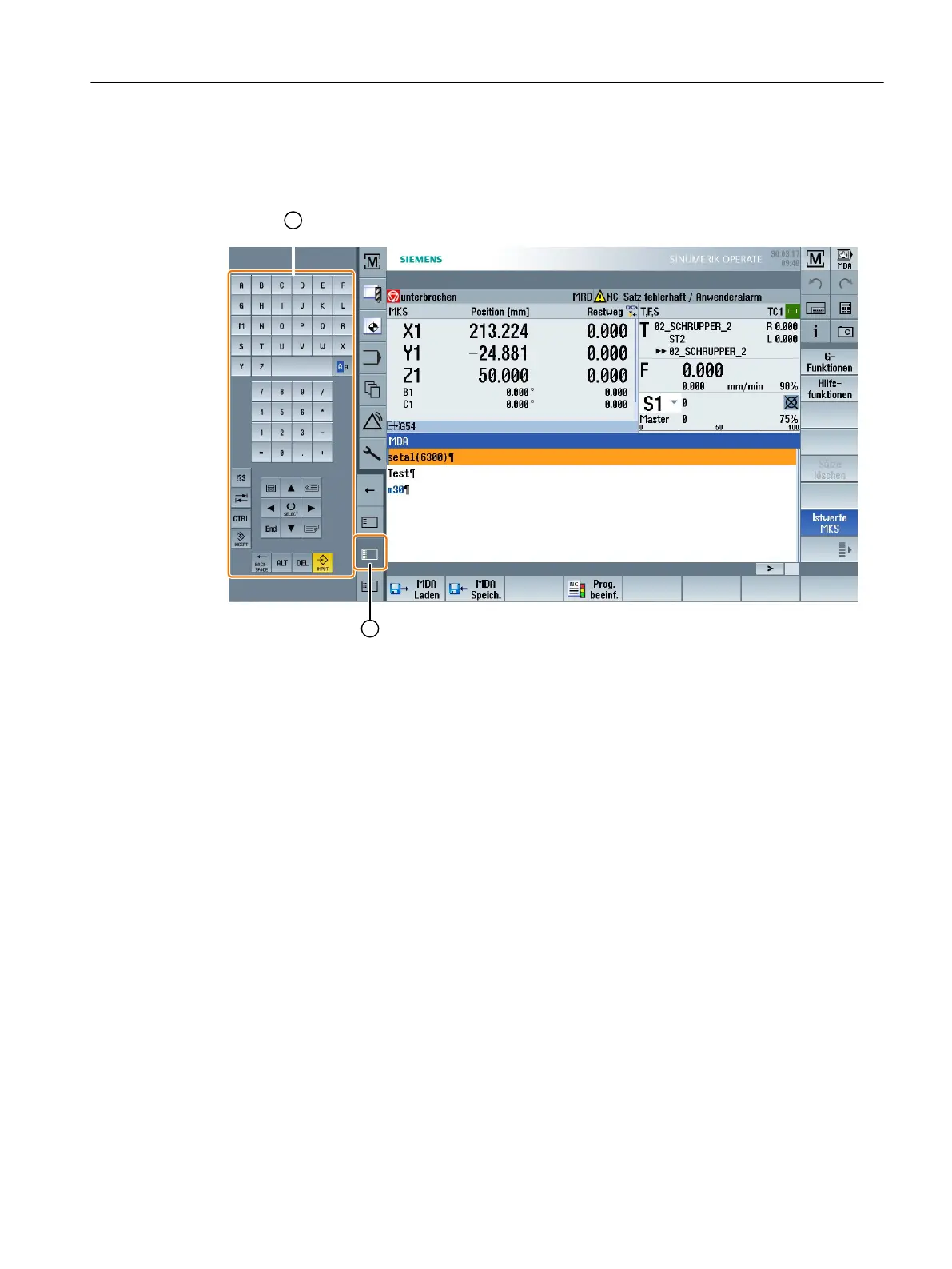

Example 1: ABC keyboard in the sidescreen
①
ABC keyboard
②
Key to display the keyboard
Multitouch operation with SINUMERIK Operate
3.5 Expansion with side screen
Milling
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0
83
82
84
