If the programs of several channels are displayed, the associated commands are displayed in
one line.
Display Meaning
Synchronization command
In the program view, you can move between the program blocks using
the <Cursor up> and <Cursor down> keys.
Parameter screen with help display
Press the <Cursor right> key to open a selected program block or cycle
in the program view.
The associated parameter screen with help screen is then displayed.

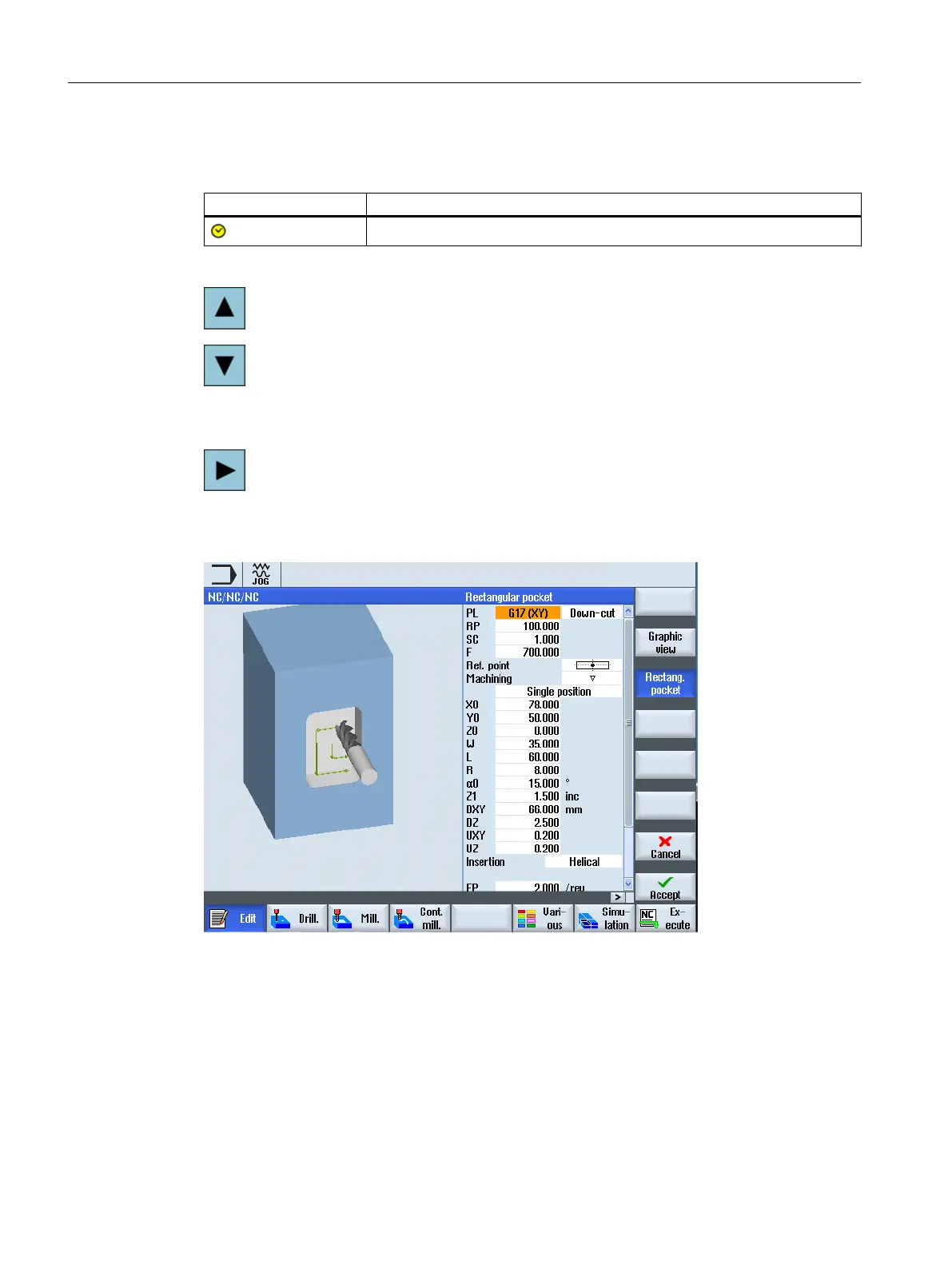

Figure 8-2 Parameter screen with help display
The animated help displays are always displayed with the correct orientation to the selected
coordinate system. The parameters are dynamically displayed in the graphic. The selected
parameter is displayed highlighted in the graphic.
The colored symbols
Red arrow = tool traverses in rapid traverse
Green arrow = tool traverses with the machining feedrate
Generating a G code program
8.2 Program views
Milling
298 Operating Manual, 08/2018, 6FC5398-7CP41-0BA0
