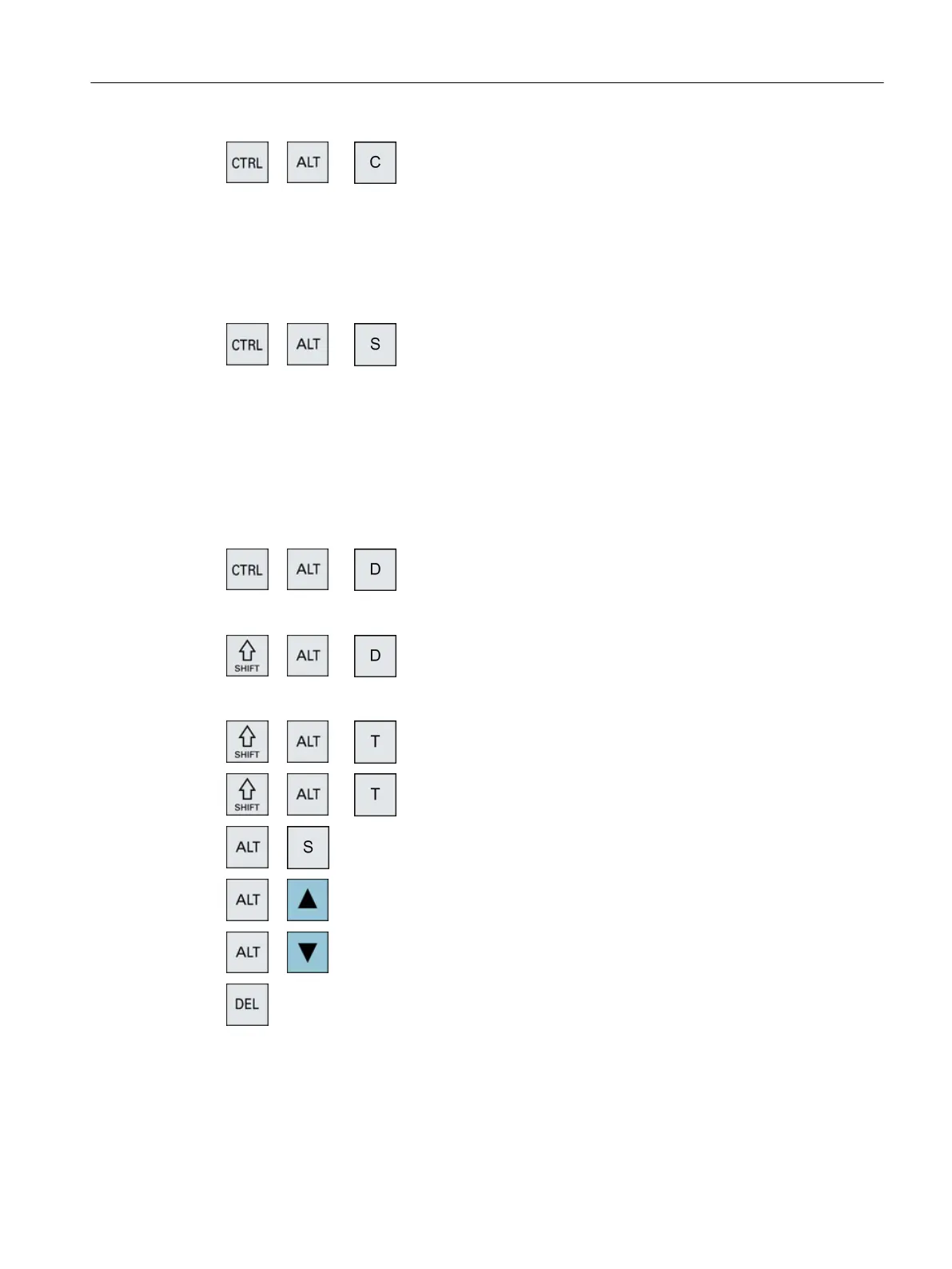

<CTRL> + <ALT> + <C>
Creates a complete standard archive (.ARC) on an external data
carrier (USB-FlashDrive) (for 840D sl / 828D).
Note:
The complete backup via this key combination is only suitable for
diagnostic purposes.
Note:
Please refer to the machine manufacturer's specifications.


<CTRL> + <ALT> + <S>
Creates a complete standard archive (.ARC) on an external data
carrier (USB-FlashDrive) (for 840D sl).
Creates a complete Easy Archive (.ARD) on an external data carrier
(USB-FlashDrive) (for 828D).
Note:
The complete backup (.ARC) via this key combination is only suita‐
ble for diagnostic purposes.
Note:
Please refer to the machine manufacturer's specifications.


<CTRL> + <ALT> + <D>
Backs up the log files on the USB-FlashDrive. If a USB-FlashDrive
is not inserted, then the files are backed-up in the manufacturer's
area of the CF card.


<SHIFT> + <ALT> + <D>
Backs up the log files on the USB-FlashDrive. If a USB-FlashDrive
is not inserted, then the files are backed-up in the manufacturer's
area of the CF card.


<SHIFT> + <ALT> + <T>
Starts "HMI Trace".


<SHIFT> + <ALT> + <T>
Exits "HMI Trace".

<ALT> + <S>
Opens the editor to enter Asian characters.

<ALT> + <Cursor up>
Moves the block start or block end up in the editor.

<ALT> + <Cursor down>
Moves the block start or block end down in the editor.
<DEL>
● Editing box
Deletes the first character to the right of the cursor.
● Navigation
Deletes all characters.
Introduction
2.2 Operator panel fronts
Milling
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0 33
