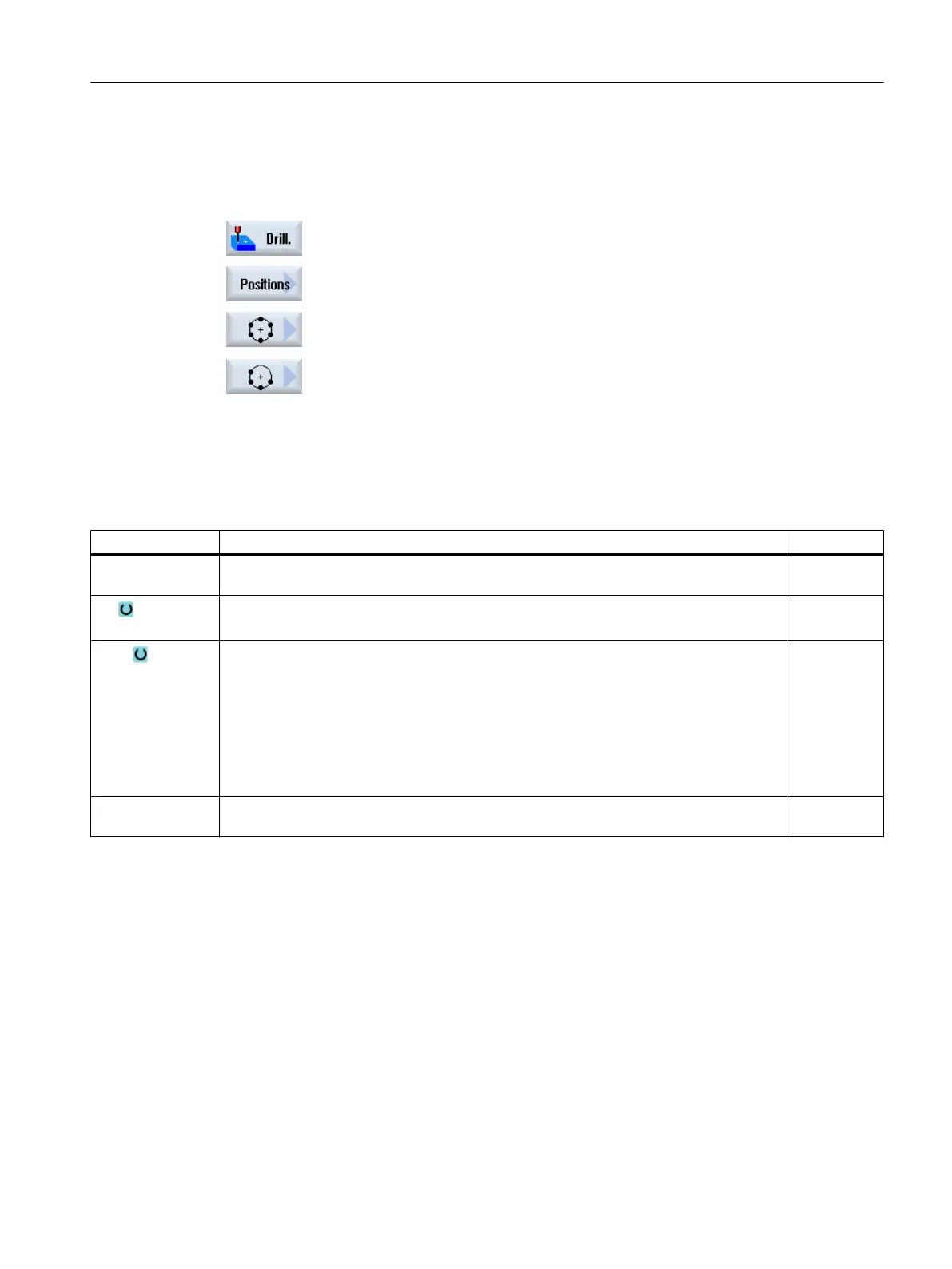

Procedure
1. The part program or ShopMill program to be processed has been created
and you are in the editor.
2. Press the "Drilling" softkey.
3. Press the "Positions" softkey.
4. Press the "Circle" softkey.
- OR -
Press the "Partial circle" softkey.
The "Circle position" or "Pitch circle position" input window opens.
Parameters - "Circle" position pattern
Parameter Description Unit
LAB
(only for G code)
Repeat jump label for position
PL
(only for G code)
Machining plane
Axes Selection of the participating axes
● XY (1st and 2nd axis of the plane)
● XA (1st rotary axis and assigned linear axis)
Note:
Rotary axes are only displayed in the selection field if they have been released for use
in the position pattern.
Please observe the information provided by your machine manufacturer.
Z0 (only for Shop‐
Mill)
Z coordinate of the reference point mm
Programming technological functions (cycles)
10.1 Drilling
Milling
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0 415
