Siemens SINUMERIK Series User Manual

Navigation bar

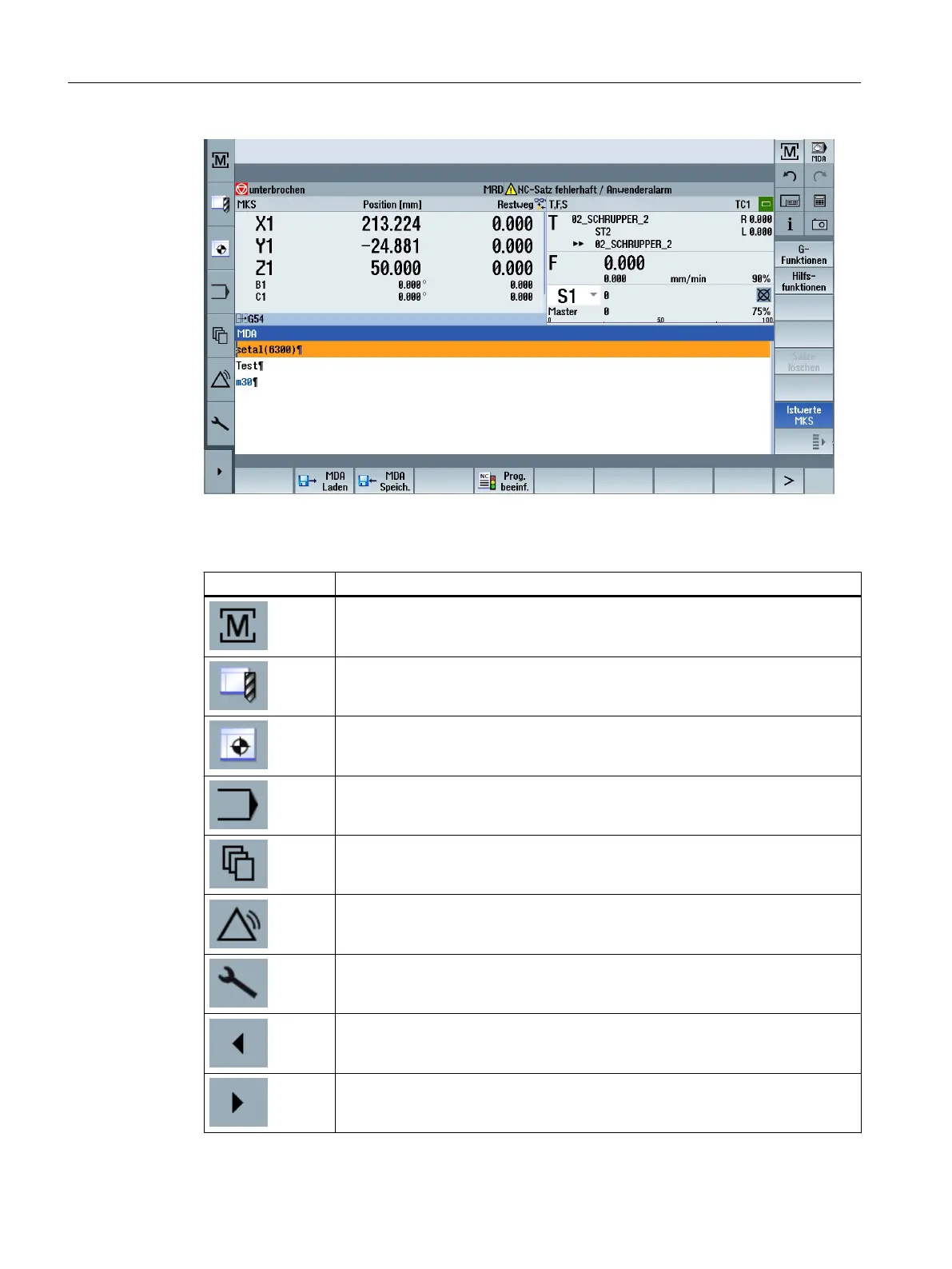

Operator control Function
Opens the "Machinery" operating area.
Opens the tool list in the "Parameter" operating area.
Opens the "Work offset" window in the "Parameter" operating area.
Opens the "Program" operating area.
Opens the "Program manager" operating area.
Opens the "Diagnostics" operating area.
Opens the "Commissioning" operating area.
Hides the sidescreen.
Shows the sidescreen.
Multitouch operation with SINUMERIK Operate
3.5 Expansion with side screen
Milling
78 Operating Manual, 08/2018, 6FC5398-7CP41-0BA0

Siemens SINUMERIK Series Specifications

General

Axes Control	Up to 31 axes
Category	Control Unit
Manufacturer	Siemens
Series	SINUMERIK
Control Type	CNC
Communication Interfaces	Ethernet, USB
Operating Temperature	0°C to 45°C
Protection Class	IP20
Power Supply	24V DC
Display	Color TFT LCD
