Terminal and Connection Diagram
[cdps101x-210513-01.tif, 1, en_US]

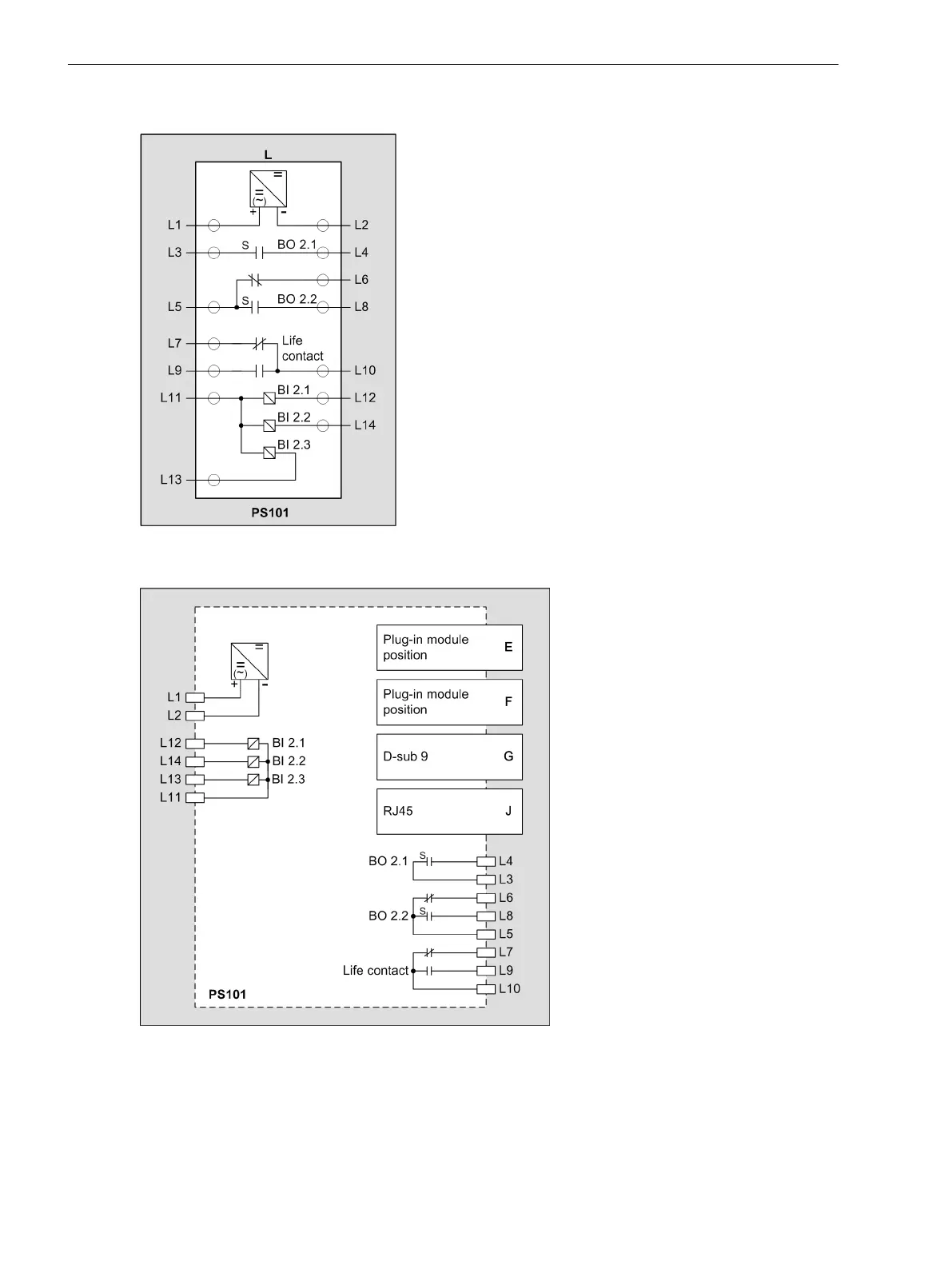

Figure 3-63 PS101 – Terminal Diagram
[tdps101x-210513-01.tif, 1, en_US]
Figure 3-64
PS101 – Connection Diagram
Time-Synchronization Terminal
The terminal for time synchronization is located on the D-sub 9 interface (position G). Time synchronization
signals for DC 5 V, DC 12 V, and DC 24 V can be processed as an option.
Electronic Modules
3.3 Power-Supply Module of Non-Modular Devices (7xx82)
