Terminals
Overview of Terminals
[le_ps203, 1, --_--]

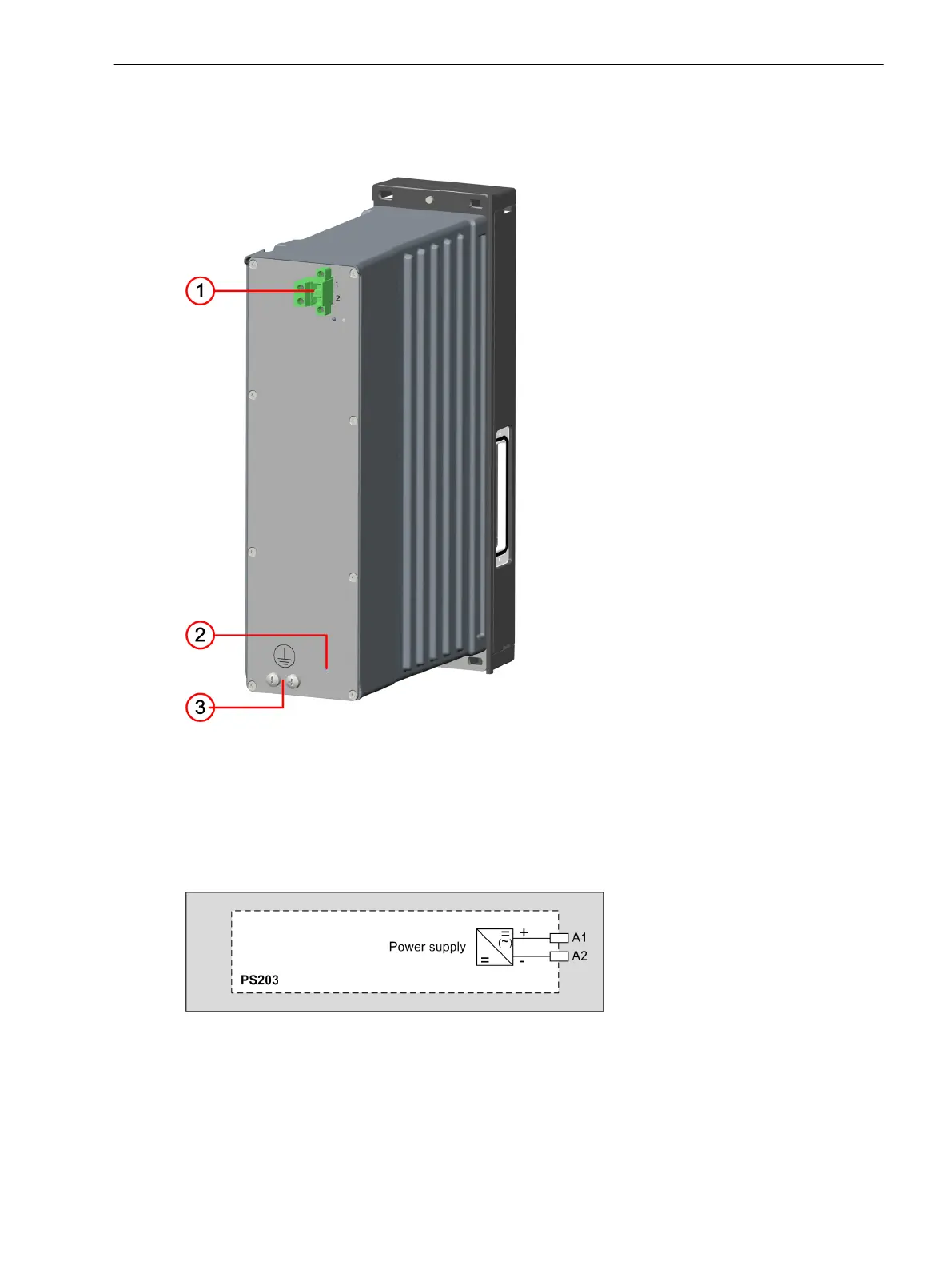

Figure 3-4
PS203 – Terminals
(1) 2-pole terminal to connect power supply
(2) LED: Power On
(3) Protective grounding terminal
Connection Diagram
[tdps203x-030713-01.tif, 2, en_US]
Figure 3-5 PS203 – Connection Diagram
3.1.3.2
Electronic Modules
3.1 Power-Supply Modules of the Modular Devices
SIPROTEC 5, Hardware Description, Manual 49
C53000-G5040-C002-C, Edition 10.2017
