Siemens SIPROTEC 5 Series User Manual

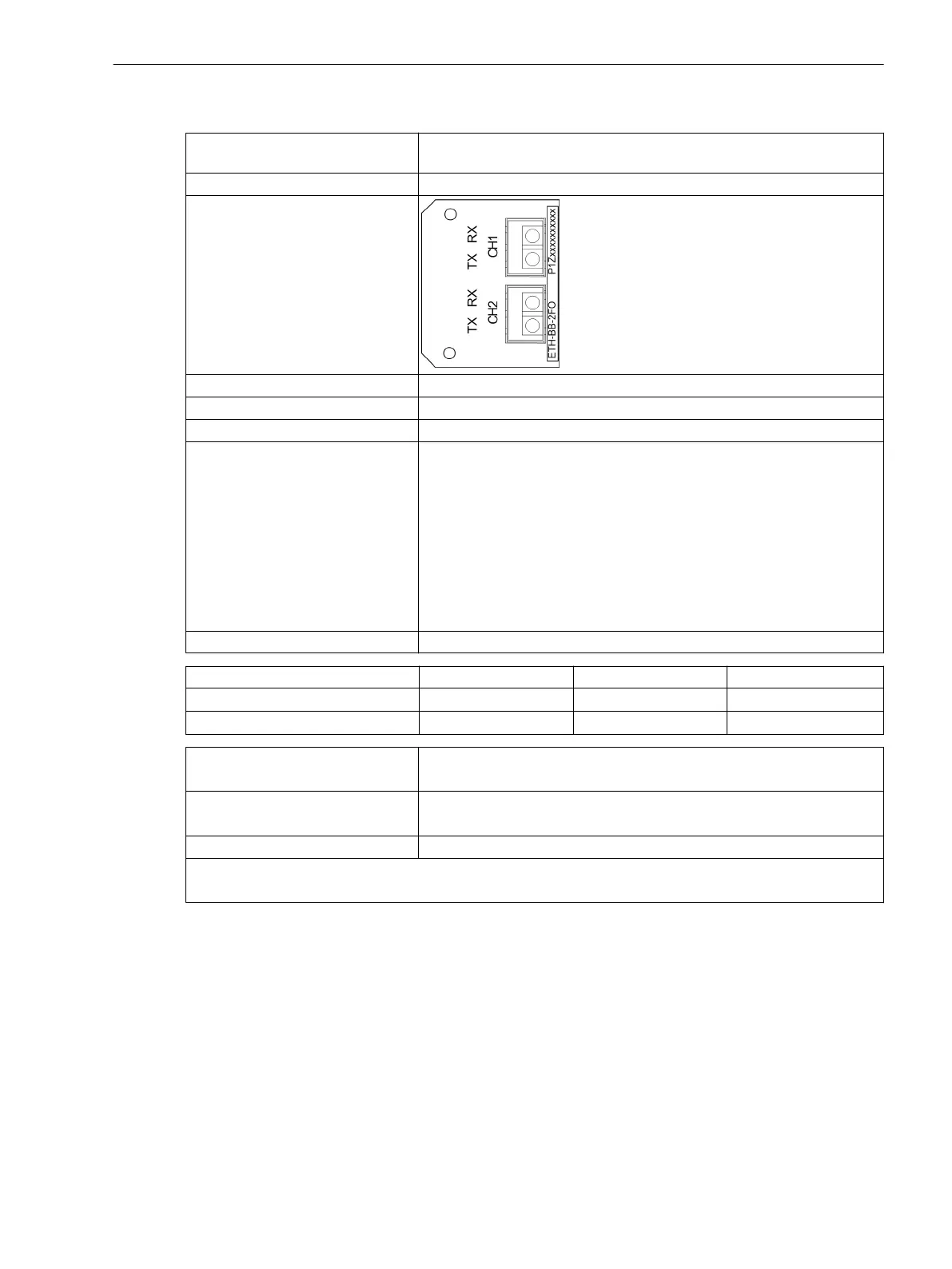

ETH-BB-2FO
Description Communication module for the transmission of Ethernet protocols via
2 optical interfaces
Product code P1Zxxxxxxxxxx
Figure
Connector type 2 x duplex LC
Wavelength λ = 1300 nm
Baud rate 100 Mbit/s
Protocol DIGSI 5 protocol (secure Web service protocol)
IEC 61850 (MMS and GOOSE)
DNP3
Modbus TCP
IEC 60870-5-104
PROFINET IO
Synchrophasor protocol
You can switch other network services like SNMP, RSTP, PRP, HSR, SNTP,
and SUP Ethernet on and off.
Max. line length 2 km for 62.5 µm/125 µm optical fibers
Transmit Power Minimum Typical Maximum
50 μm/125 μm, NA
1
= 0.2
-23.5 dBm -20.0 dBm -14.0 dBm
62.5 μm/125 μm, NA
1
= 0.275
-20.0 dBm -17.0 dBm -14.0 dBm
Receiver sensitivity Maximum -12.0 dBm
Minimum -31.0 dBm
Optical budget
Minimum 7.5 dB for 50 μm/125 μm, NA
1
= 0.2
Minimum 11.0 dB for 62.5 μm/125 μm, NA
1
= 0.275
Laser class 1 as per EN 60825-1/-2 With the use of 62.5 μm/125 μm and 50 μm/125 μm optical fibers
Comment:
1
Numerical aperture (NA = sin θ (launch angle))
4.2.5.3
Plug-In Modules
4.2 Communication Modules
SIPROTEC 5, Hardware Description, Manual 149
C53000-G5040-C002-C, Edition 10.2017

Siemens SIPROTEC 5 Series Specifications

General

Protection Functions	Overcurrent, differential, distance, over/under voltage, frequency
Communication Protocols	IEC 61850, IEC 60870-5-103, Modbus, DNP3, PROFINET
Display	Graphical LCD with touch functionality
Inputs/Outputs	Digital and analog inputs/outputs, configurable
Power Supply	24-250V DC or 100-240V AC
Mounting	Panel or rack mounting
Environmental Conditions	Operating temperature: -25°C to +70°C, humidity up to 95% non-condensing
Product Type	Multifunctional protection relay
Application	Power generation, transmission, distribution, industrial plants
Cybersecurity	IEC 62351, role-based access control, secure communication
Modular Design	Yes, with plug-in modules for flexibility
Hardware	Robust design with high processing power
Software	SIPROTEC 5 DIGSI software for configuration and operation
Control Functions	Remote control, switching sequences, interlocking
Monitoring Functions	Event recording, disturbance recording, measurement values
HMI	Integrated HMI with graphical display and pushbuttons. Remote HMI via web browser or dedicated software. User-configurable dashboards and single-line diagrams.
Time Synchronization	IRIG-B, SNTP, PTP (IEEE 1588)
Certifications	IEC, IEEE, UL, CE
