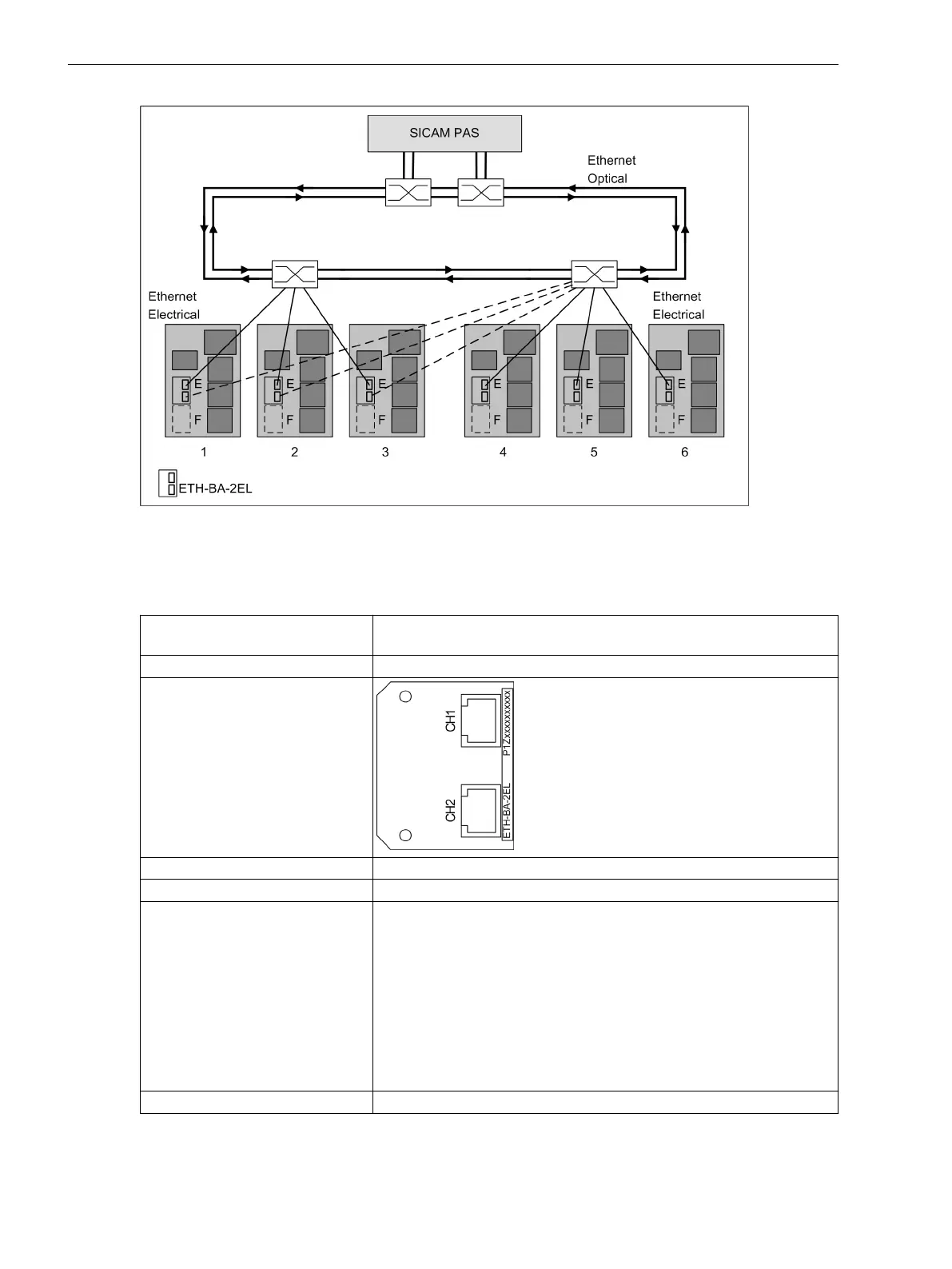

Figure 4-9 Operation of Ethernet Modules Without Integrated Switch Function with Single or Redundant
Connection to the Switch
ETH-BA-2EL
Description
Communication module for the transmission of Ethernet protocols via
2 electrical interfaces
Product code P1Zxxxxxxxxxx
Figure
Connector type 2 x RJ45
Baud rate 100 Mbit/s
Protocol DIGSI 5 protocol (secure Web service protocol)
IEC 61850 (MMS and GOOSE)
DNP3
Modbus
IEC 60870-5-104
PROFINET IO
Synchrophasor protocol
You can switch other network services like SNMP, RSTP, PRP, HSR, SNTP,
and SUP Ethernet on and off.
Max. line length 20 m with Ethernet patch cable CAT 5
4.2.5.2
Plug-In Modules
4.2 Communication Modules
148 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-C, Edition 10.2017
